Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fuel filler door to the quarter panel.
  2. Install the rivets to the fuel filler door hinge.

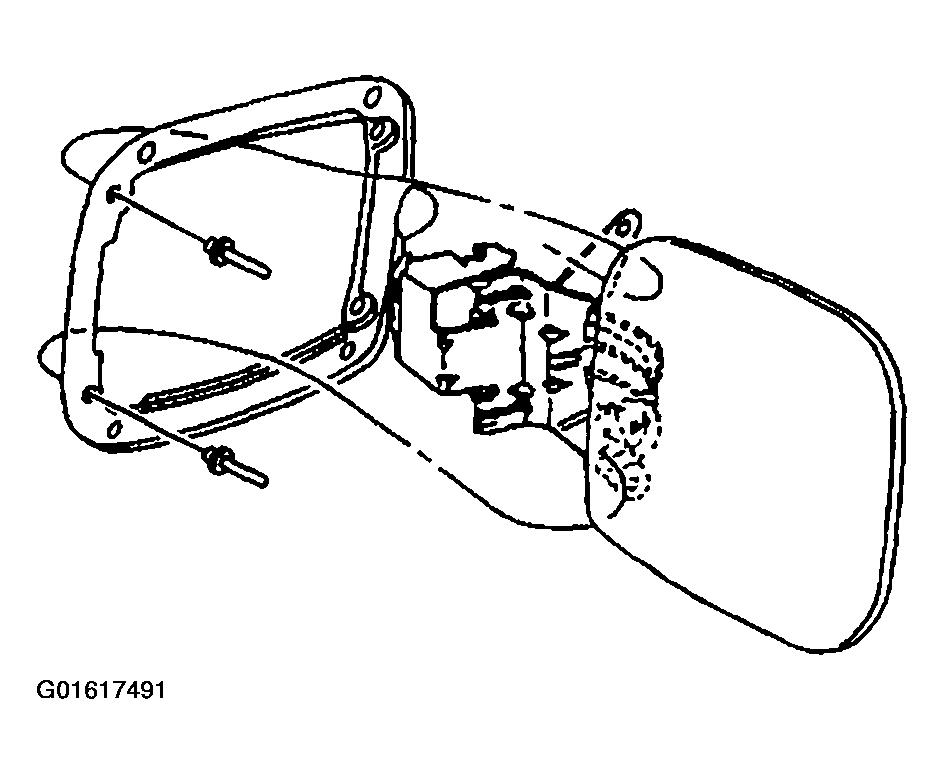

    Fig 1: Fuel Filler Door
    G01617491Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel filler pocket to the quarter panel. Refer to Fuel Filler Pocket Replacement .
  4. Close the fuel filler door.

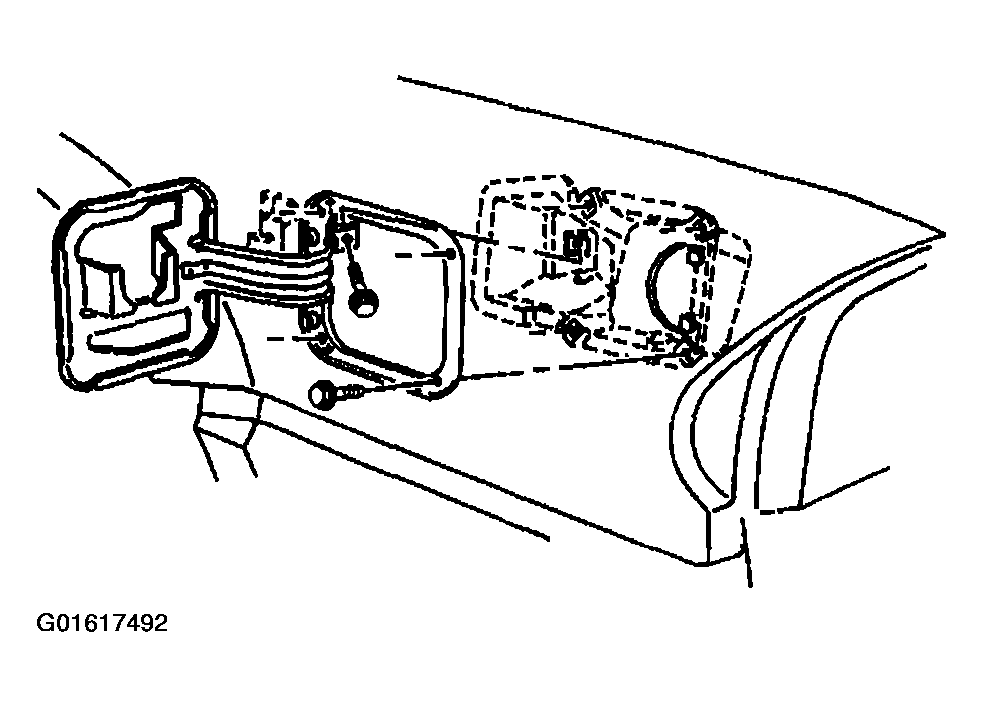

    Fig 2: Fuel Filler Pocket
    G01617492Courtesy of GENERAL MOTORS CORP.
