Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment trim panel to the rear compartment.
  2. Unfold the trim panel sides and rear sections and press them into place.

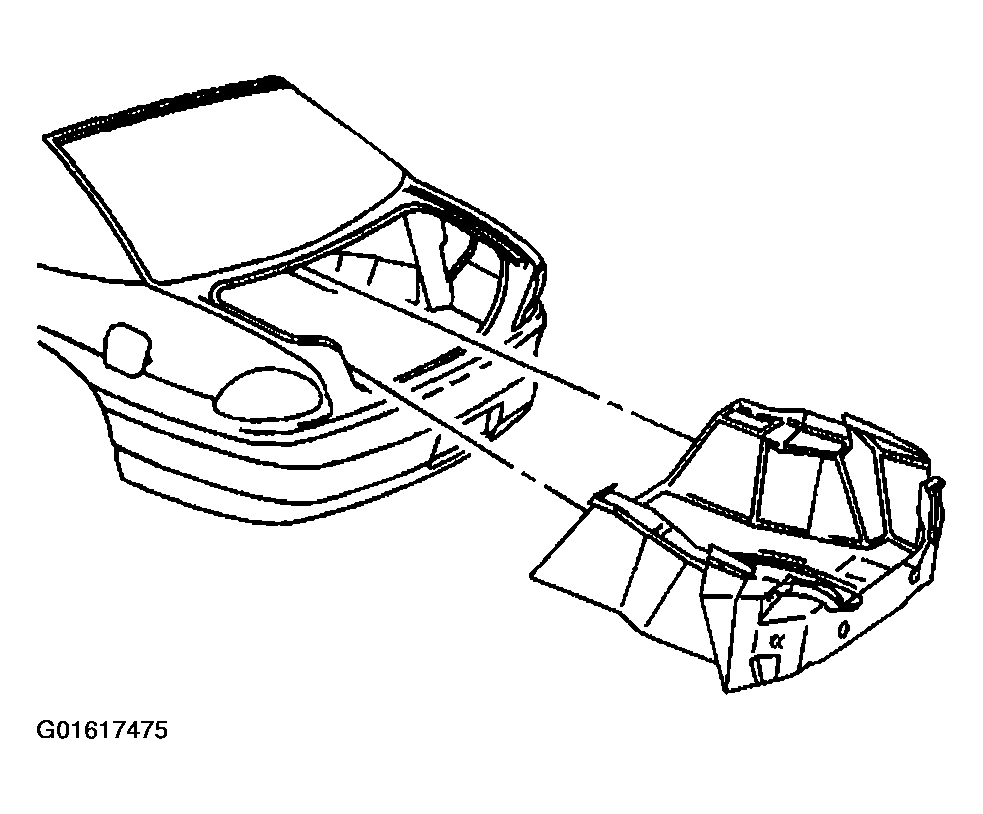

    Fig 1: Rear Compartment Trim Panel
    G01617475Courtesy of GENERAL MOTORS CORP.
  3. Install the spare tire.
  4. Install the spare tire cover in the rear compartment.

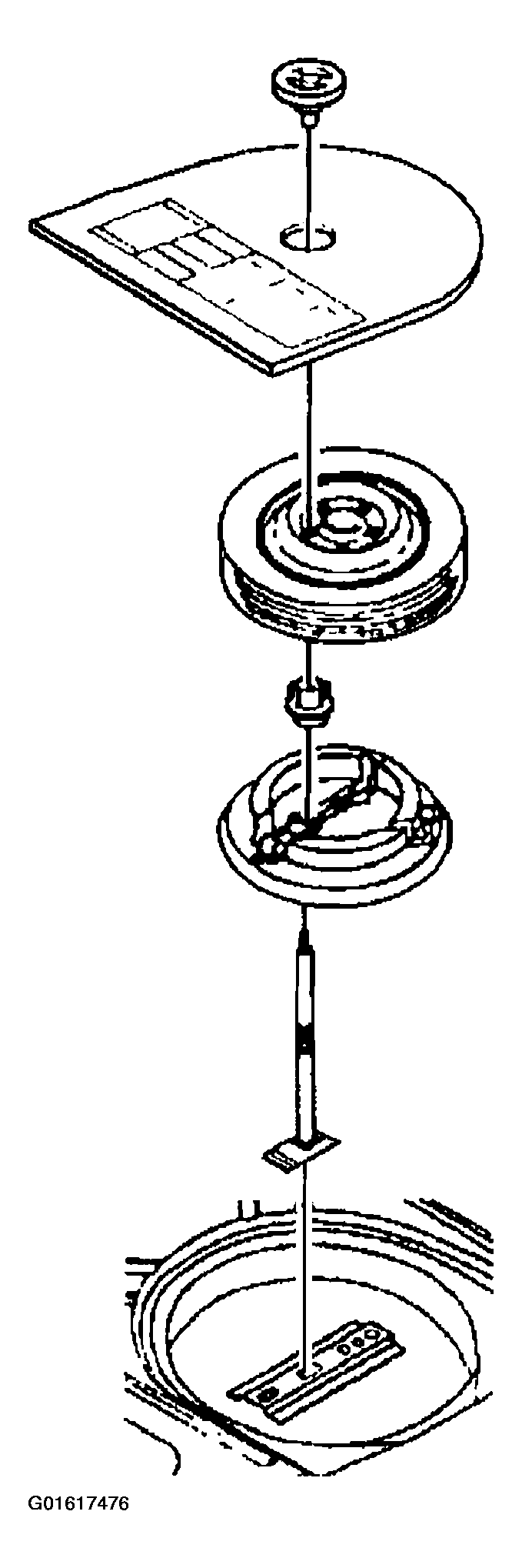

    Fig 2: Spare Tire
    G01617476Courtesy of GENERAL MOTORS CORP.
  5. Position the communication interface module the bracket in the rear compartment.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the interface module bracket nuts.

    Tighten

    Tighten the bracket nuts to 4 N.m (35 lb in).

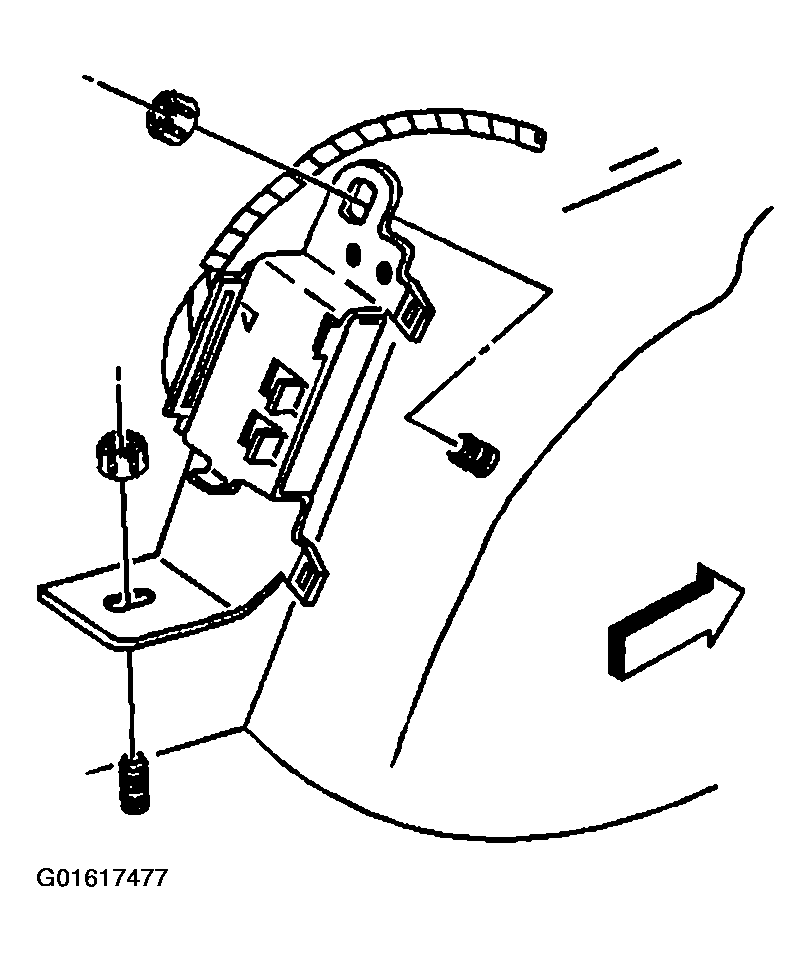

    Fig 3: Installing Communication Interface Module
    G01617477Courtesy of GENERAL MOTORS CORP.
  7. Connect the GPS antenna cable by pushing in on the metal sleeve.
  8. Connect the two lower connectors to the module.
  9. Connect the cellular antenna by pressing in on the square plastic housing.

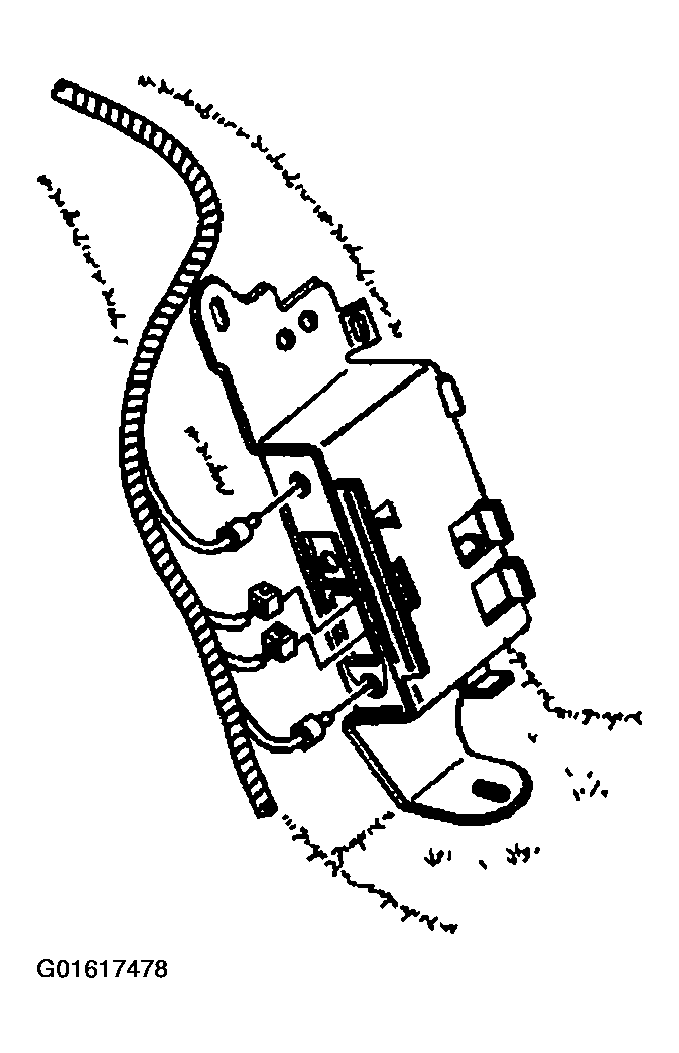

    Fig 4: Communication Interface Module
    G01617478Courtesy of GENERAL MOTORS CORP.
  10. Install the rear compartment mat in the rear compartment.
  11. Install the retainers by the rear compartment lock striker.
  12. Replace the lower rear compartment convenience net retainers.
  13. Install the rear compartment convenience net.
  14. Close the rear compartment.

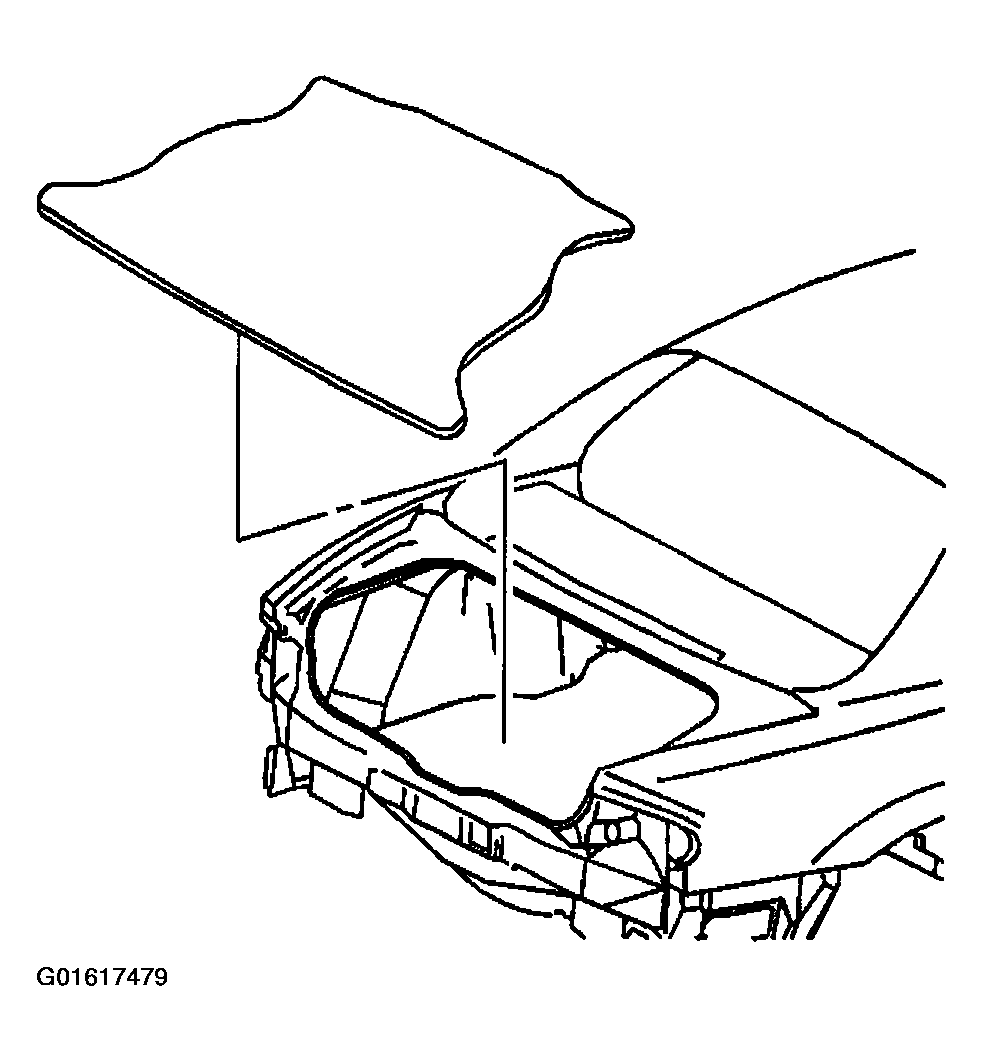

    Fig 5: Rear Compartment Mat
    G01617479Courtesy of GENERAL MOTORS CORP.
