WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

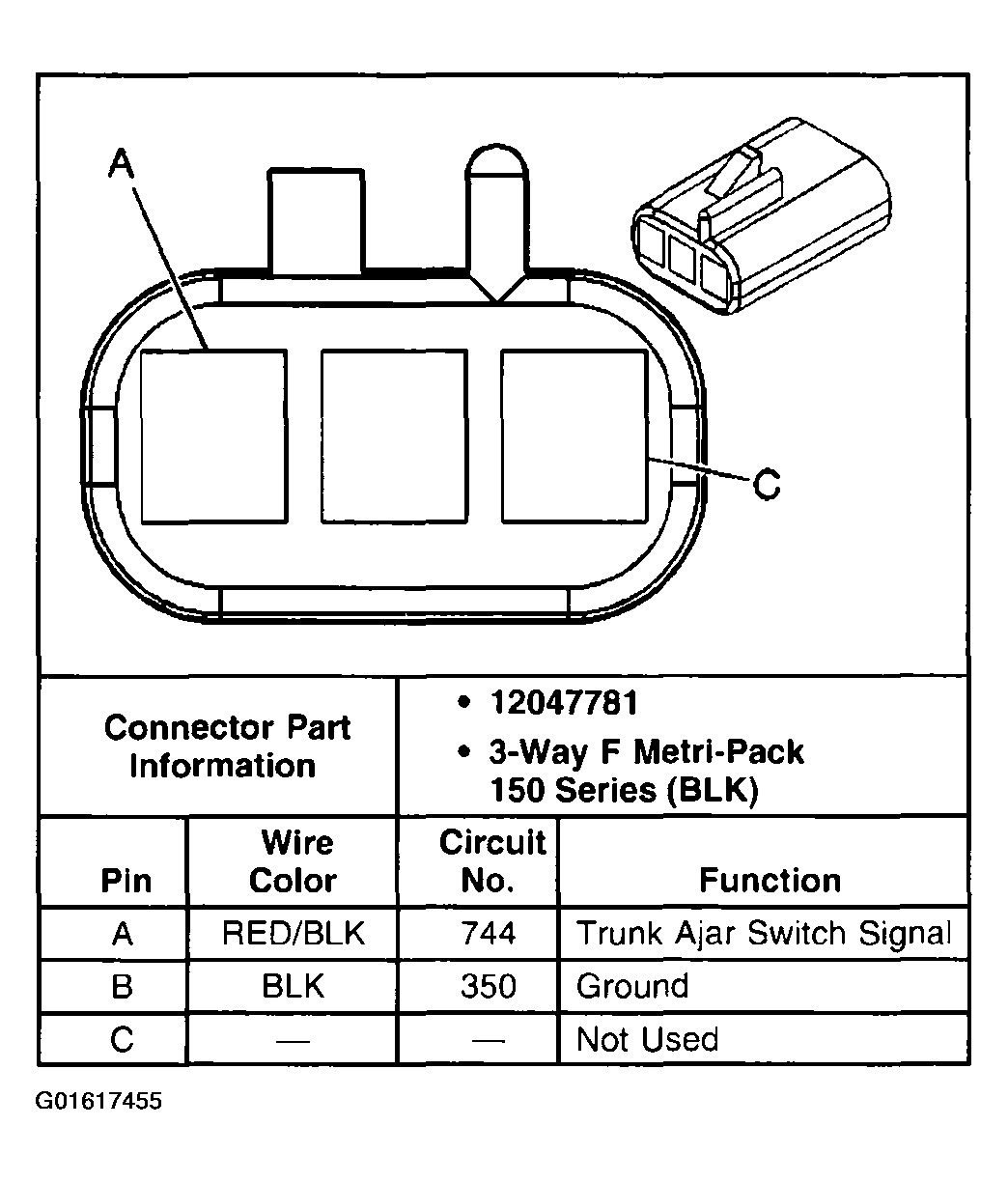

Fig 1: Rear Compartment Courtesy Lamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

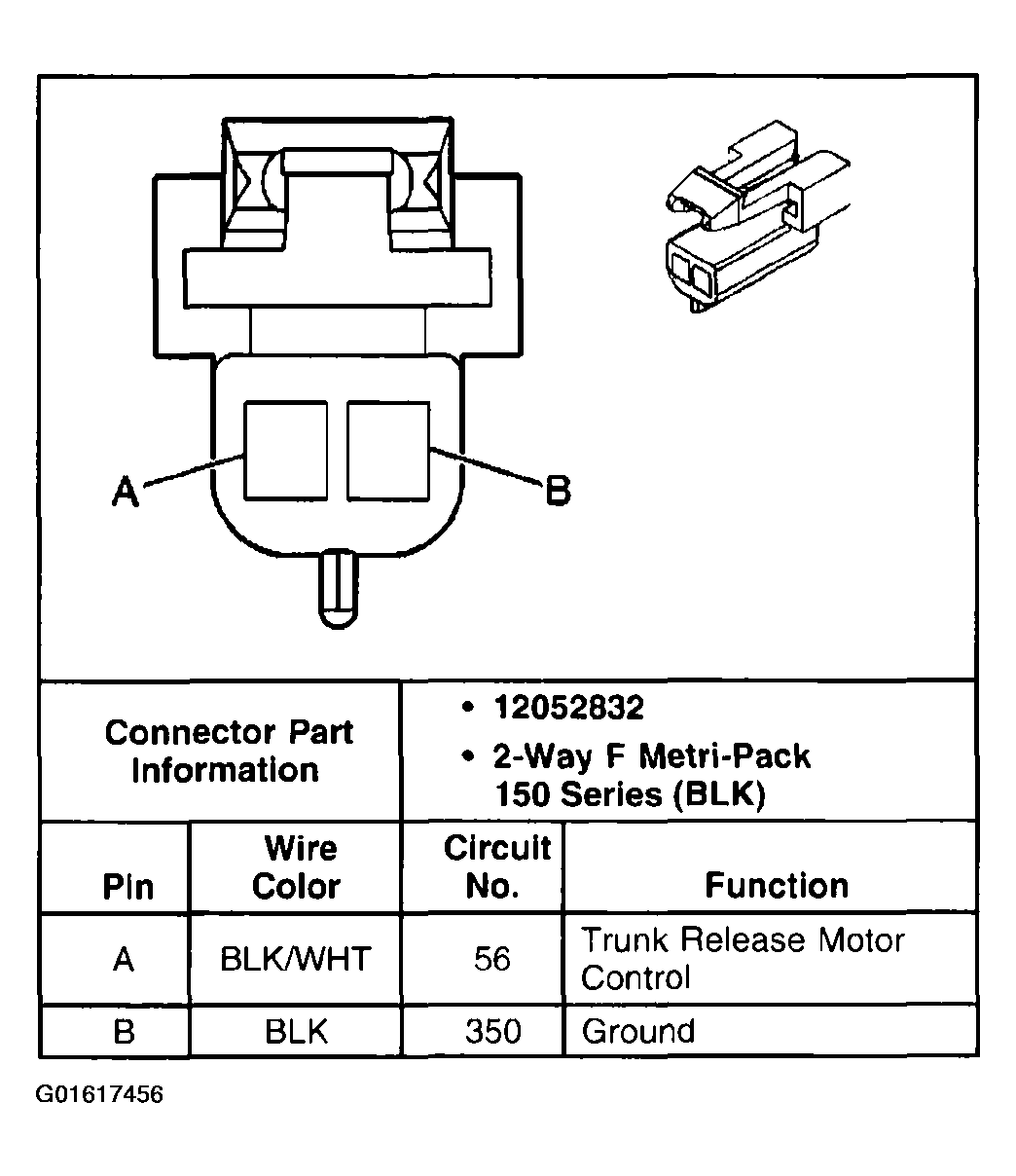

Fig 2: Rear Compartment Lid Release Actuator Connector End View
Courtesy of GENERAL MOTORS CORP.

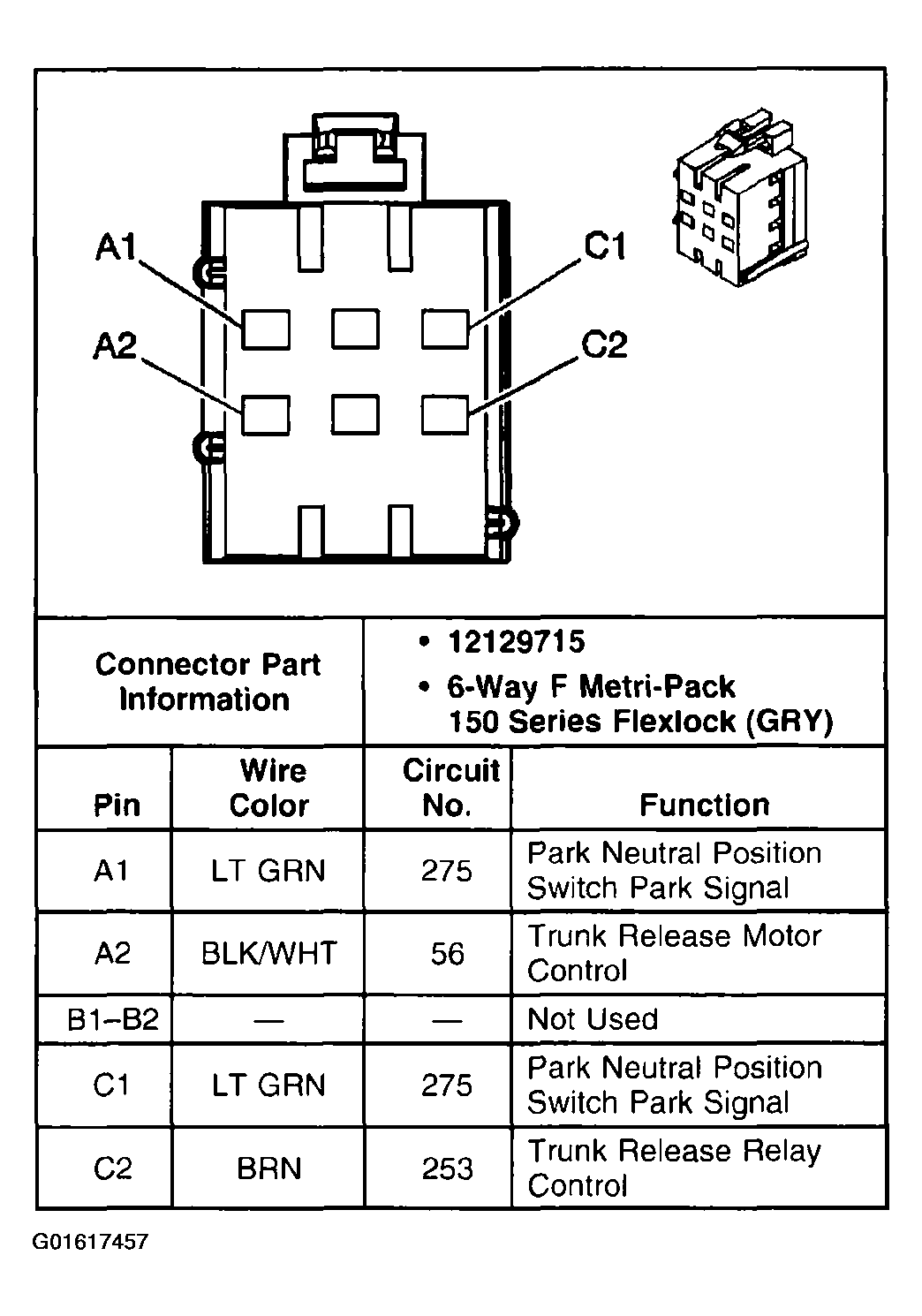

Fig 3: Rear Compartment Lid Release Relay Connector End View
Courtesy of GENERAL MOTORS CORP.

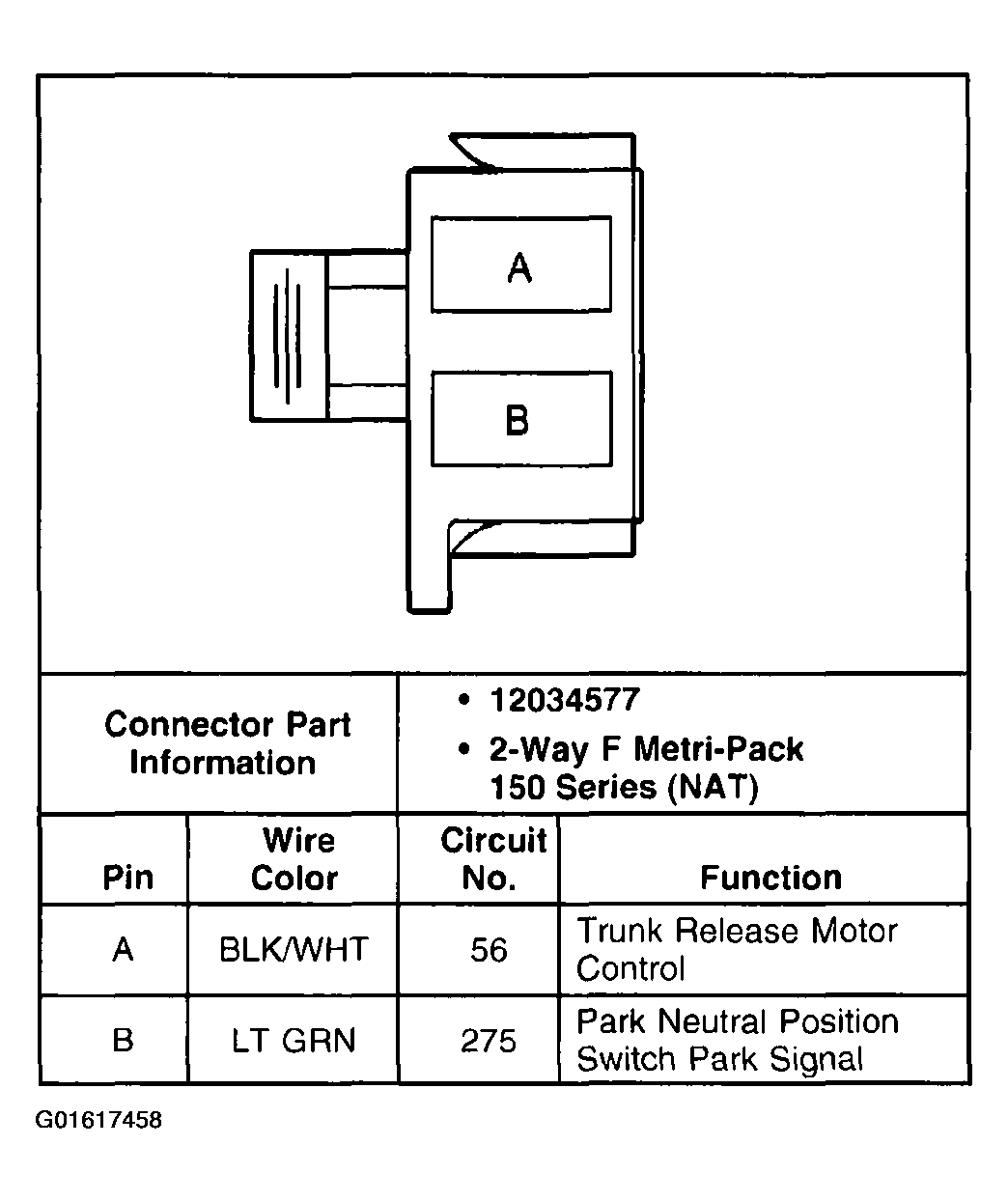

Fig 4: Rear Compartment Lid Release Switch Connector End View
