Theft Deterrent System Schematics

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

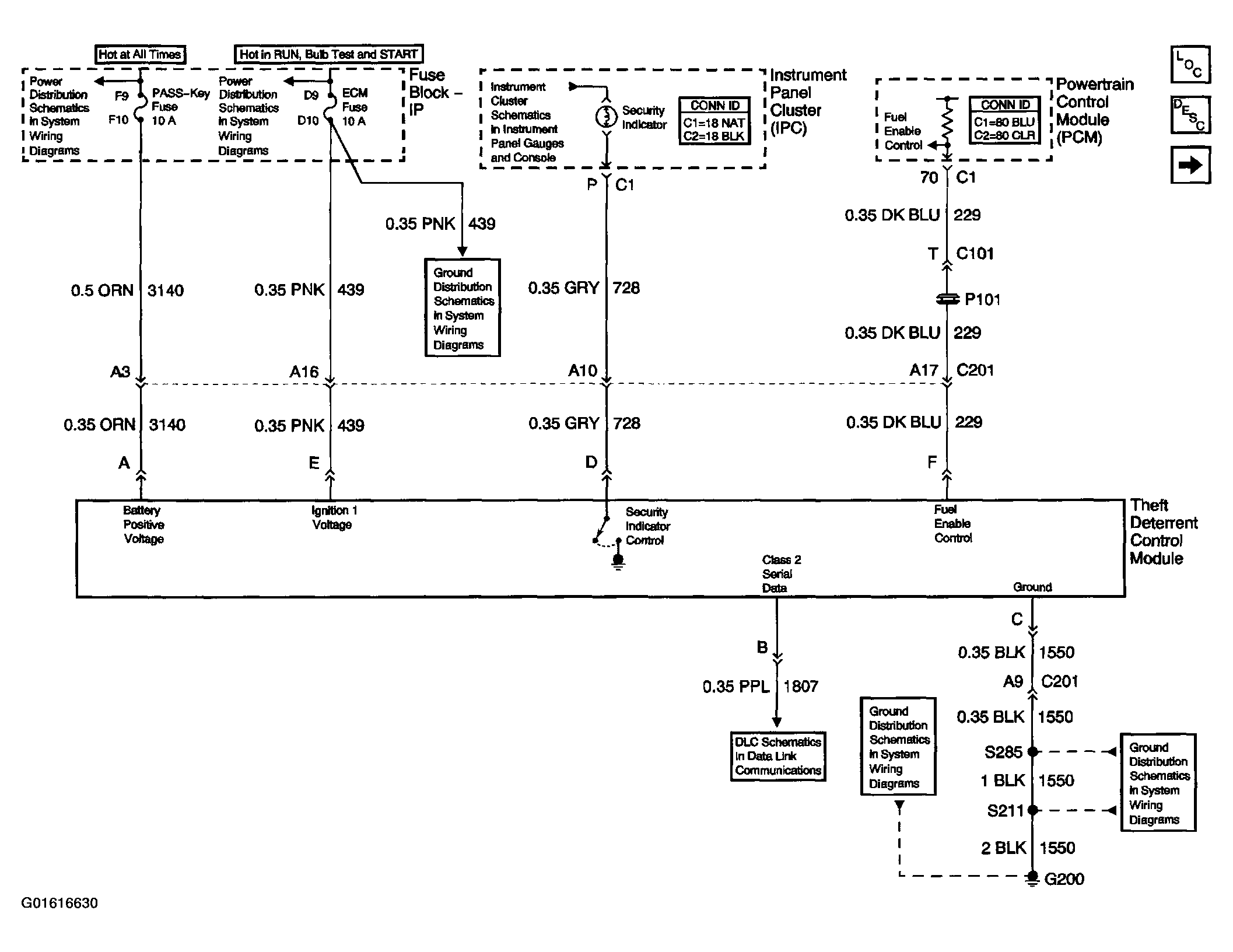

Fig 1: Theft Deterrent System Schematics (Vehicle Theft Deterrent (VTD) System)
G01616630Courtesy of GENERAL MOTORS CORP.

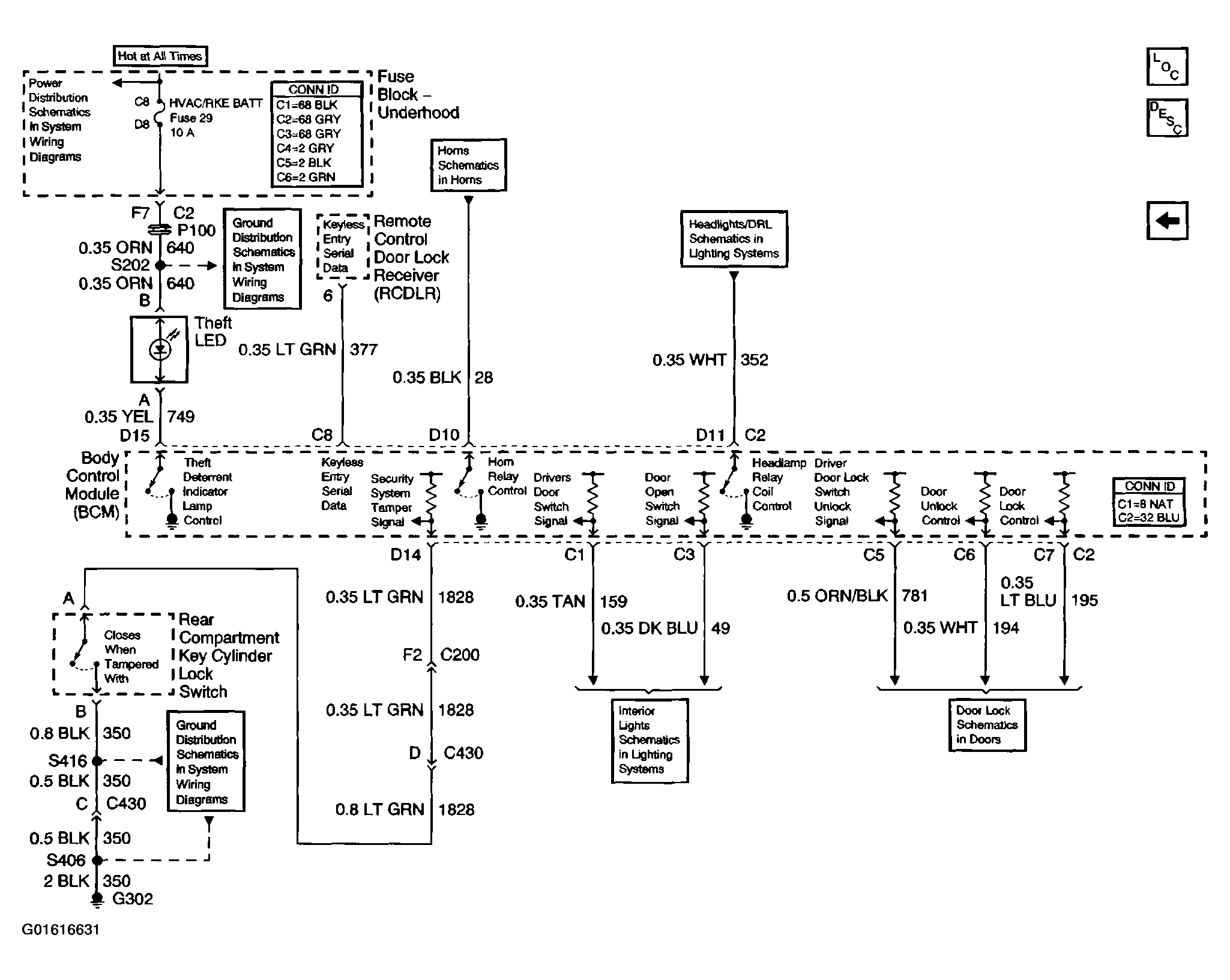

Fig 2: Theft Deterrent System Schematics (Content Theft Deterrent (CTD) System)
G01616631Courtesy of GENERAL MOTORS CORP.
