Test Description

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. 2. Verifies the condition for setting the DTC is current.
  2. 3. Checks for an intermittent short to voltage in the SECURITY indicator control circuit.
  3. 5. Checks for a short to voltage in the SECURITY indicator lamp control circuit.

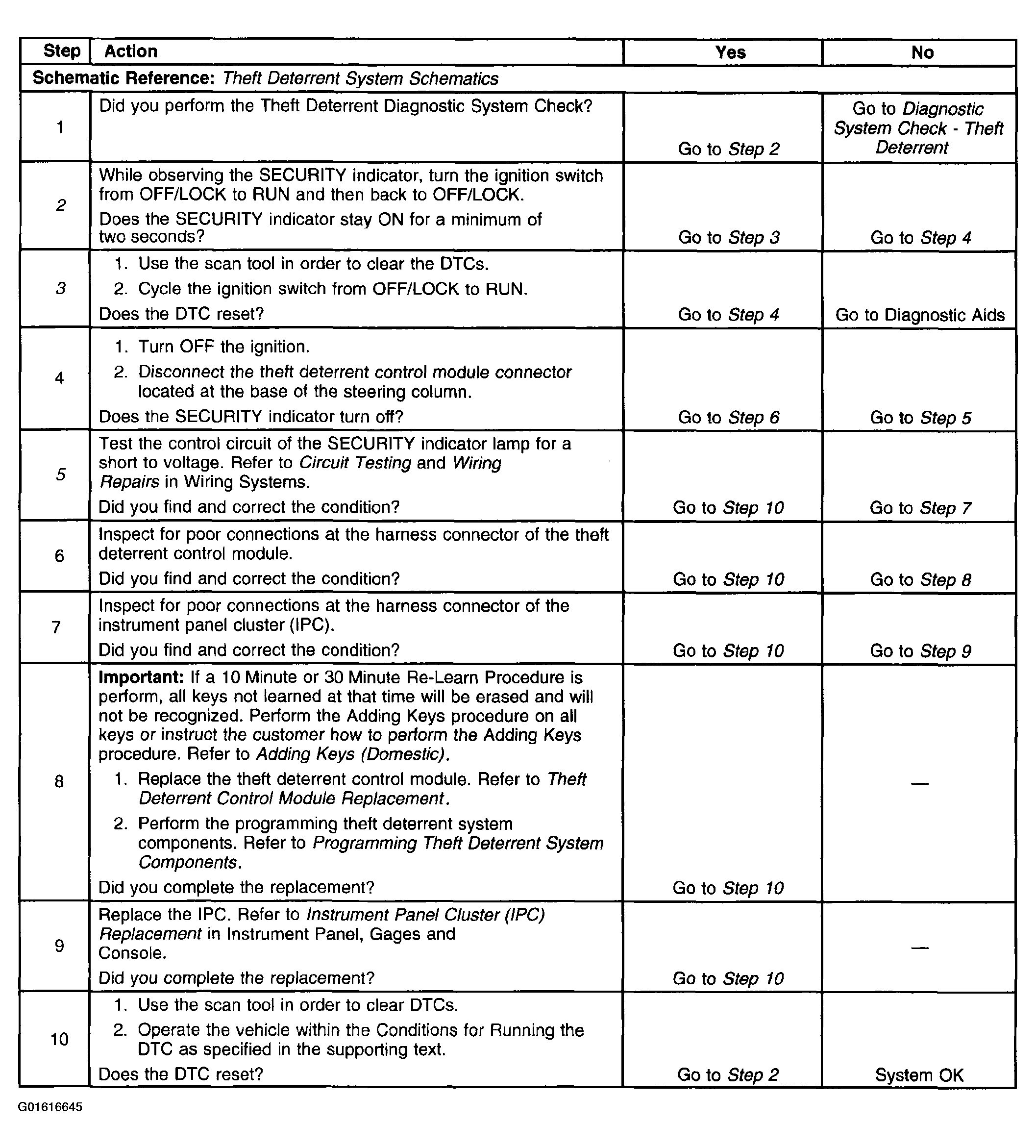

    Fig 1: DTC B0686
    G01616645Courtesy of GENERAL MOTORS CORP.
