Test Description

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 3. This step checks the integrity of the headlamp relay control circuit.

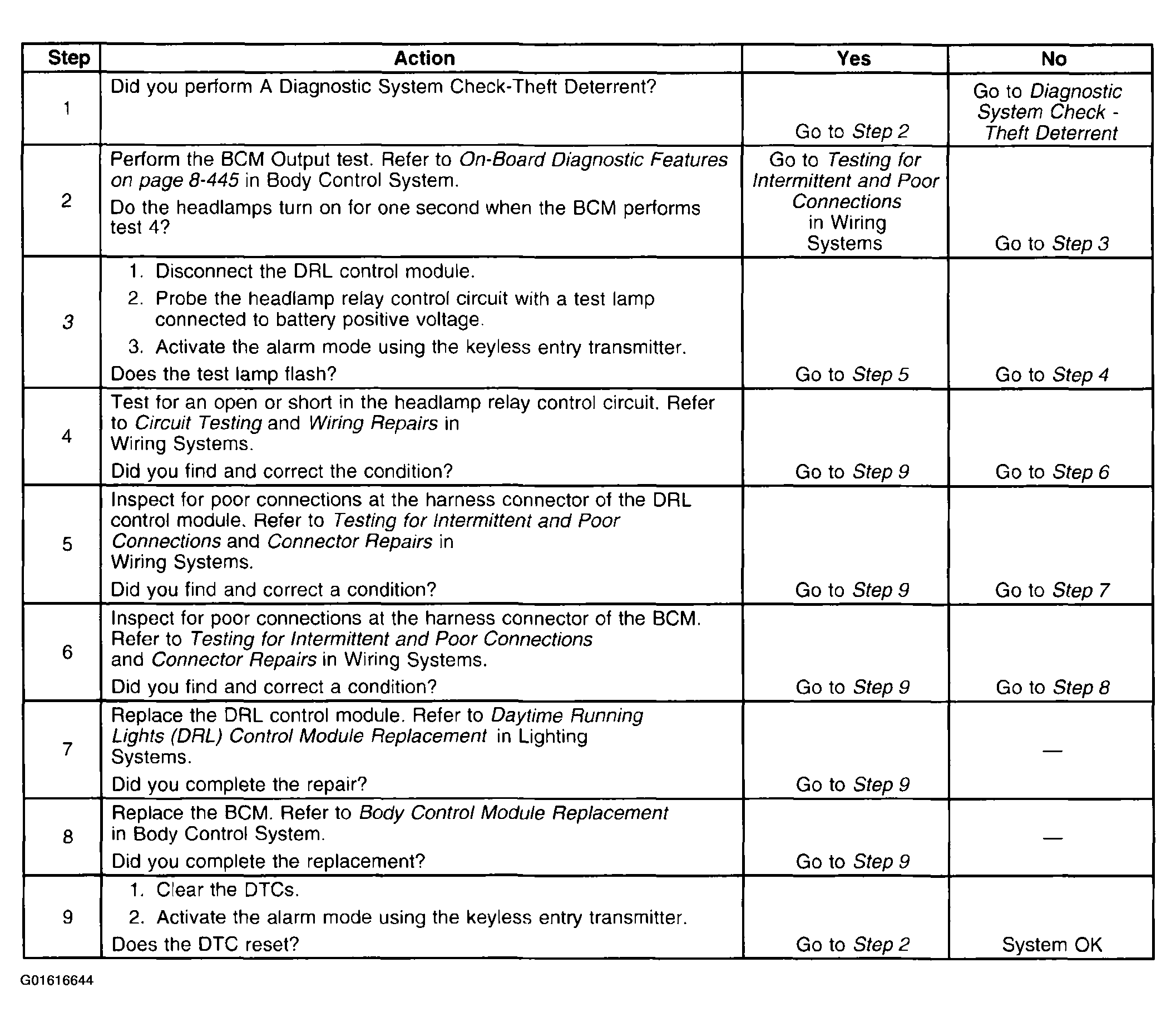

    Fig 1: DTC 006
    G01616644Courtesy of GENERAL MOTORS CORP.
