Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the right front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
  3. Disconnect the washer hose from the washer pump.
  4. Lower the Vehicle.

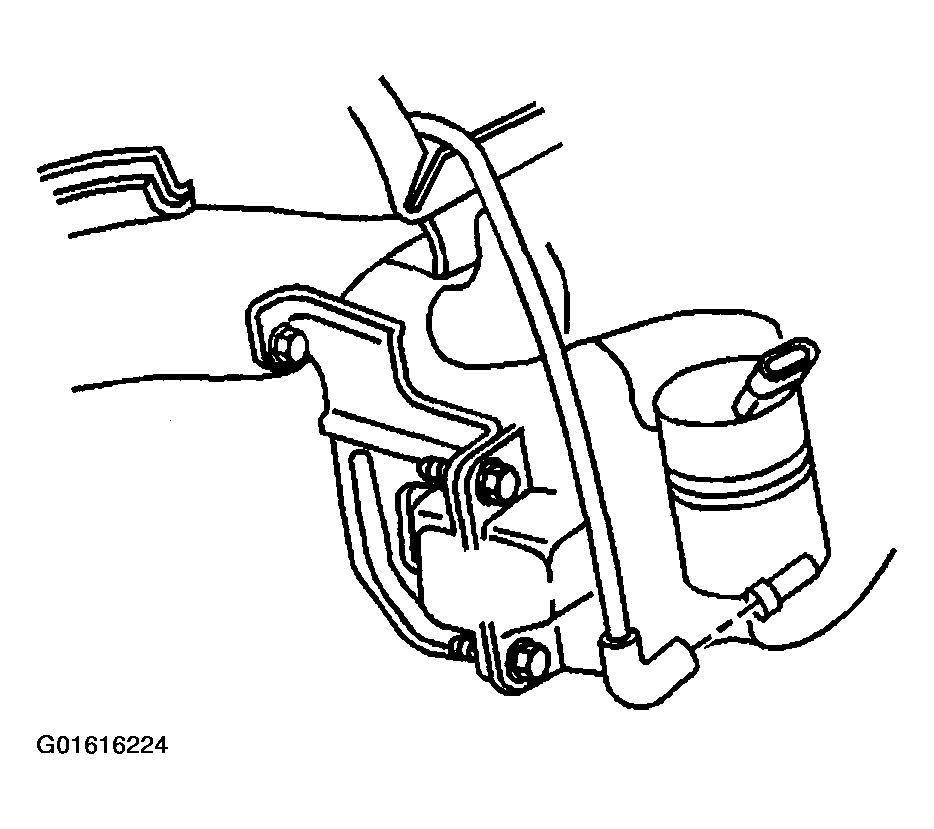

    Fig 1: Disconnecting Washer Hose From Washer Pump
    G01616224Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the washer hose from the wiper arms.
    Fig 2: Disconnecting Washer Hose From Wiper Arms
    G01616225Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the washer hose from the air inlet grille panel.
  7. Pull the washer hose pump end out alongside the right front inner fender and into the engine compartment.
  8. Remove the washer hose from the vehicle.

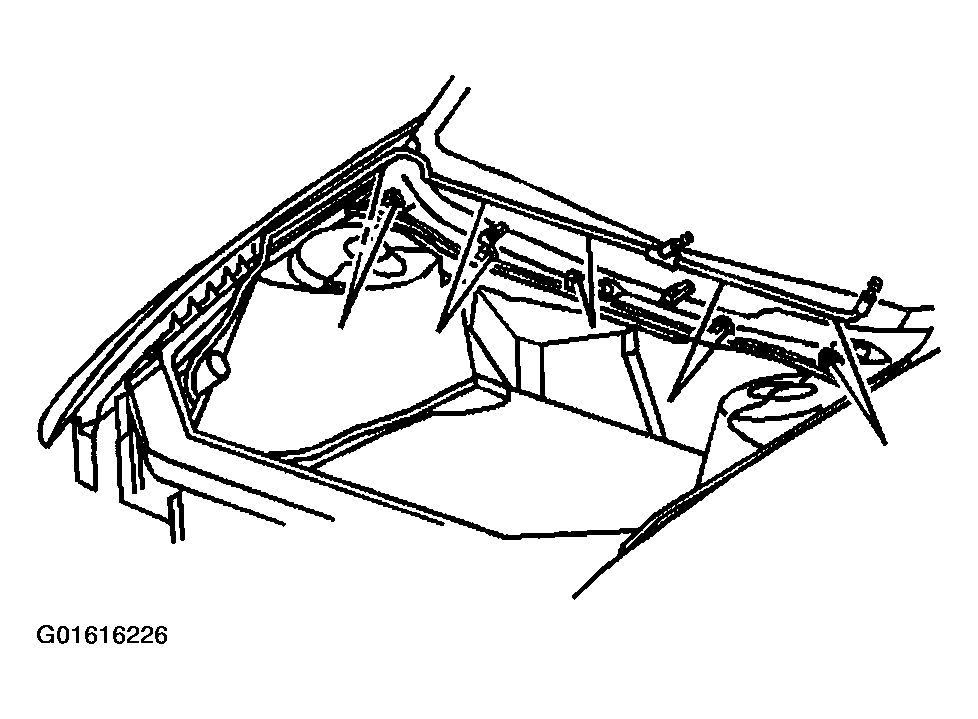

    Fig 3: Disconnecting Washer Hose From Air Inlet Grille Panel
    G01616226Courtesy of GENERAL MOTORS CORP.
