Washers Always On

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

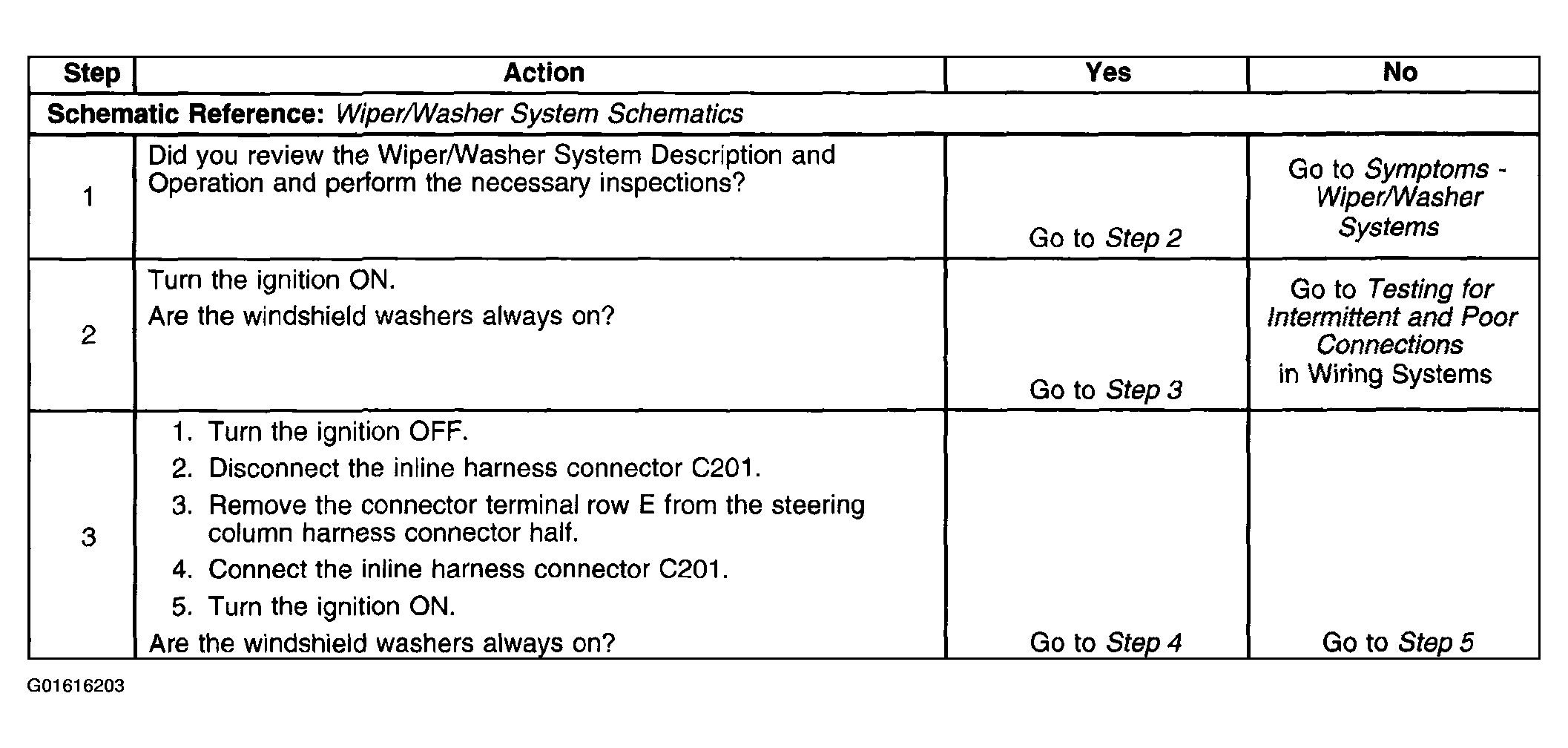

Fig 1: Washers Always On (1 Of 2)
G01616203Courtesy of GENERAL MOTORS CORP.

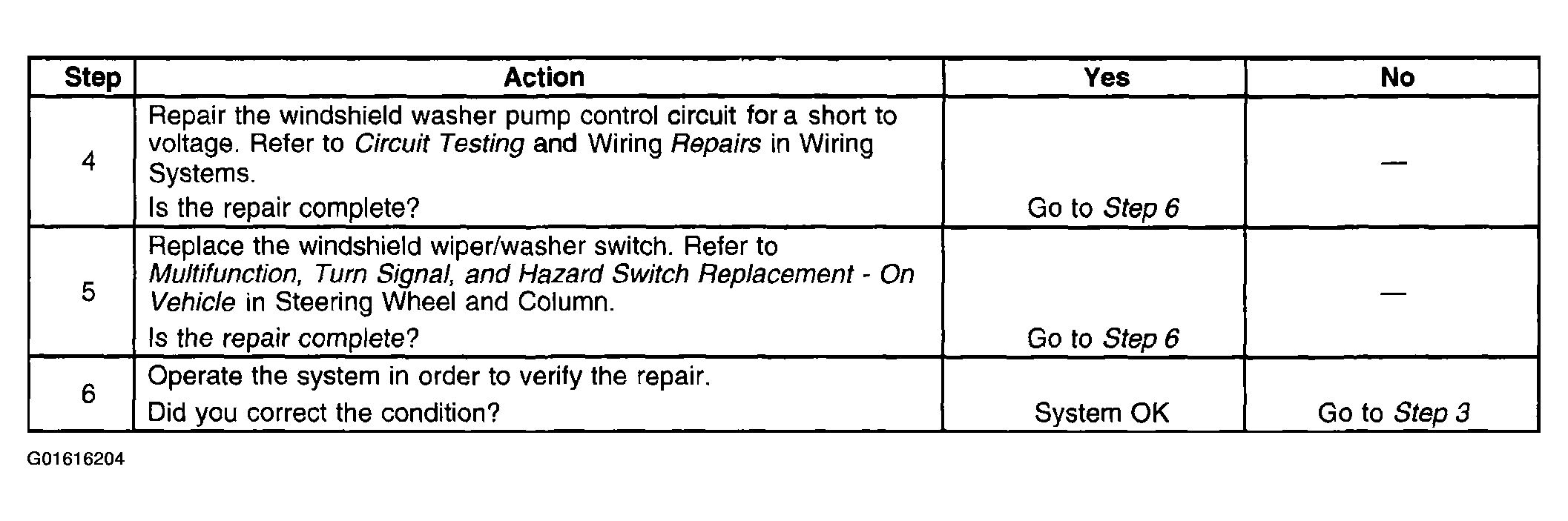

Fig 2: Washers Always On (2 Of 2)
G01616204Courtesy of GENERAL MOTORS CORP.
