Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) .
  2. Remove the shoulder belt guide adjuster bracket bolts.
  3. Remove the shoulder belt guide belt adjuster bracket from the upper center pillar.

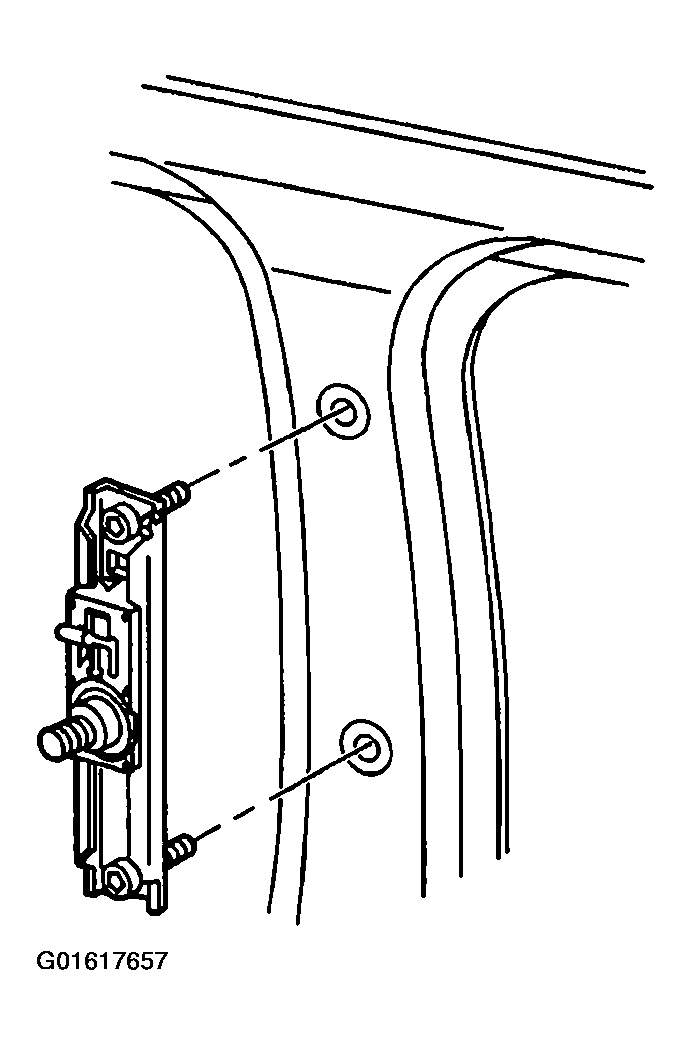

    Fig 1: Shoulder Belt Guide Belt Adjuster Bracket
    G01617657Courtesy of GENERAL MOTORS CORP.
