Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat belt retractor into the T-slot in the center pillar.
NOTE: Refer to FASTENER NOTICE .
Install the retractor side seat belt bolt.
Tighten

Tighten the seat belt retractor bolt to 68 N.m (50 lb ft).

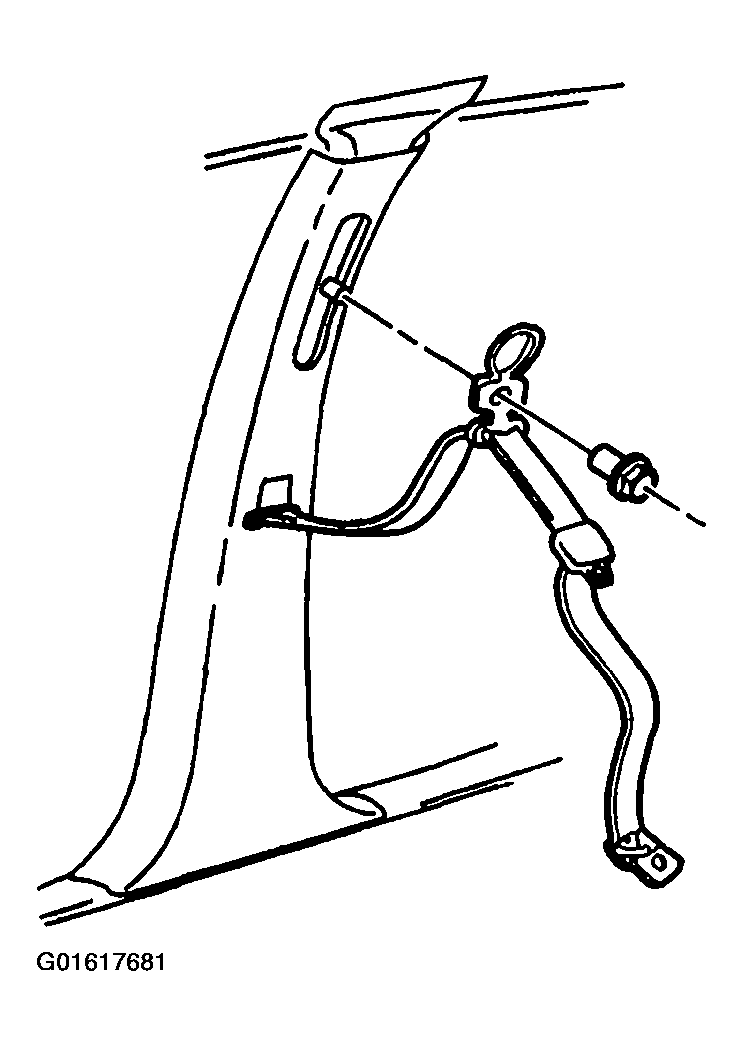

Fig 1: Installing Retractor Side Seat Belt
Courtesy of GENERAL MOTORS CORP.
Install the seat belt intermediate guide bolts.
Tighten

Tighten the seat belt intermediate guide bolts to 10 N.m (89 lb in).

Fig 2: Seat Belt Intermediate Guide Bolts
Courtesy of GENERAL MOTORS CORP.
Position the anchor plate to the seat stud.
Install the anchor plate nut to the seat stud.
Tighten

Tighten the anchor plate nut to 42 N.m (31 lb ft).
Install the lower quarter panel trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (SEDAN) .

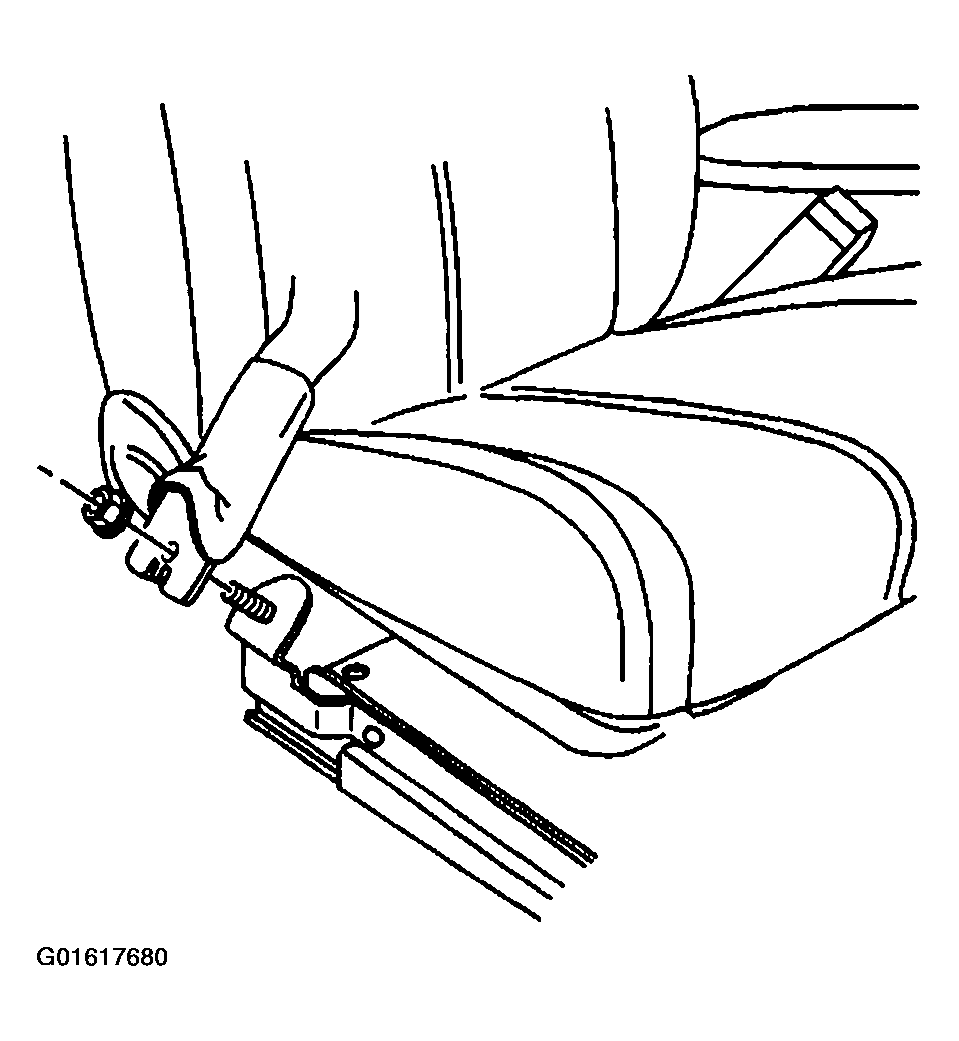

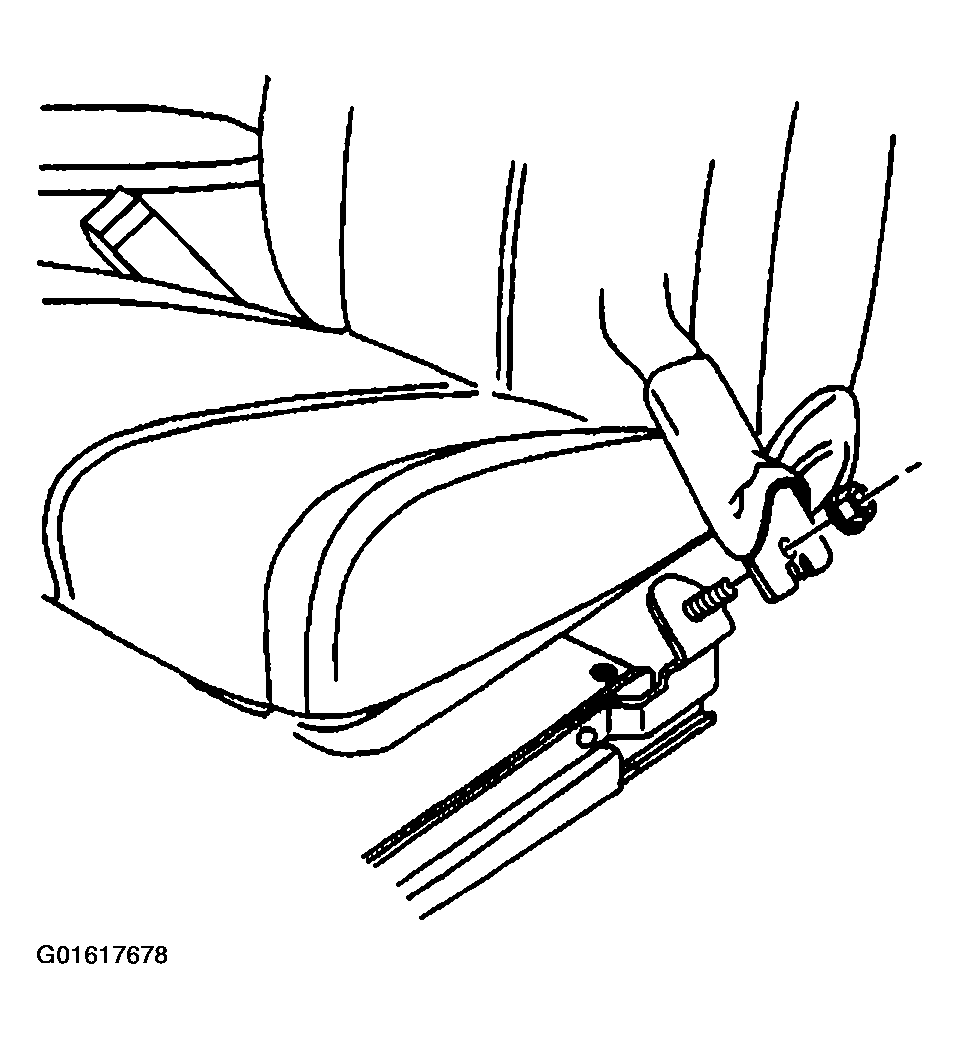

Fig 3: Anchor Plate Nut
Courtesy of GENERAL MOTORS CORP.
Position the seat belt guide loop to the guide adjuster bracket.
Install the seat belt guide loop nut.
Tighten

Tighten the seat belt guide loop nut to 42 N.m (31 lb ft).
Close the seat belt guide loop cover.

Fig 4: Seat Belt Guide Loop
Courtesy of GENERAL MOTORS CORP.
