Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  2. Remove the center rear seat belt nuts.
  3. Remove the center rear seat belts from the vehicle.

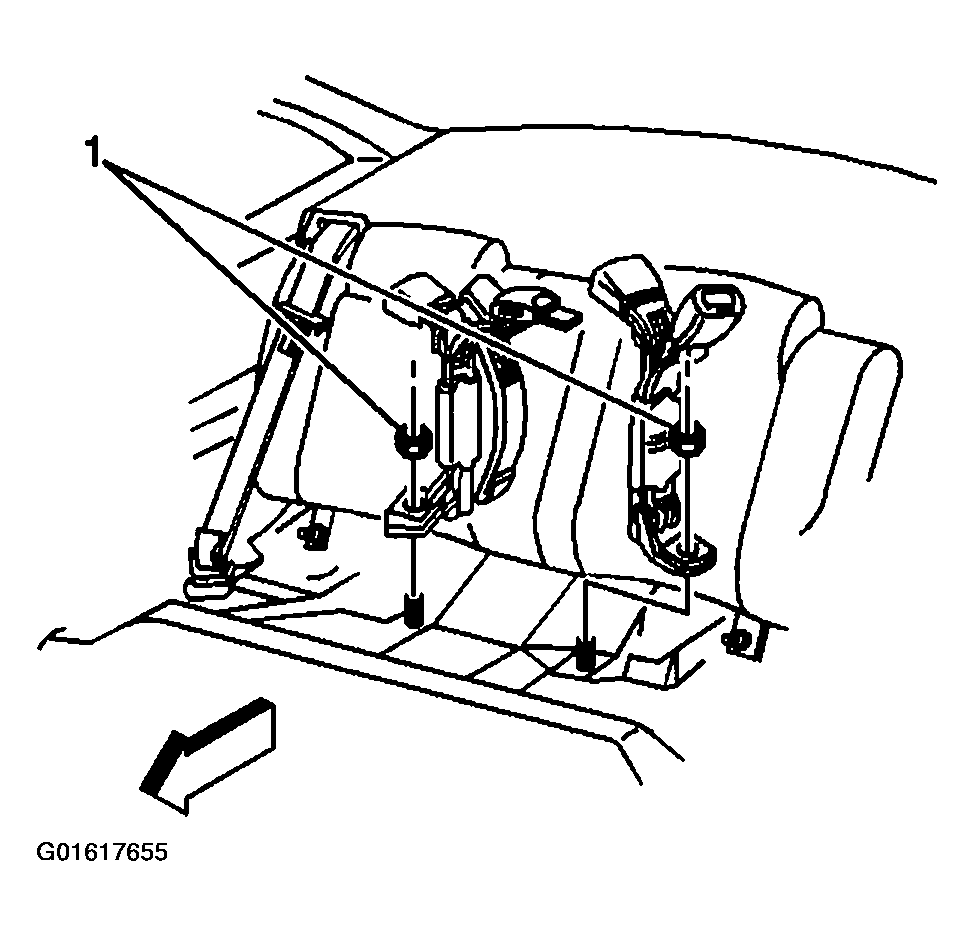

    Fig 1: Center Rear Seat Belt
    G01617655Courtesy of GENERAL MOTORS CORP.
