Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle to the left front seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Install buckle side seat belt nut.

    Tighten

    Tighten the seat belt buckle nut to 42 N.m (31 lb ft).

    Fig 1: Seat Belt Buckle Nut
    G01617651Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector from the seat belt buckle.
  4. Position the left front seat to the original position.

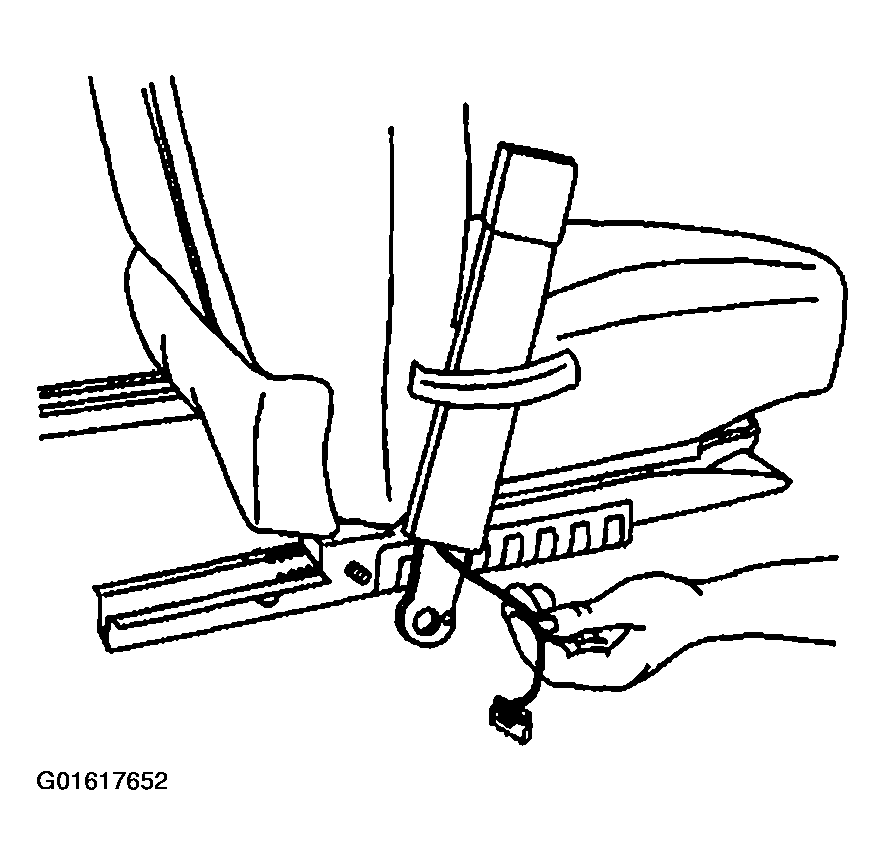

    Fig 2: Installing Seat Belt Buckle
    G01617652Courtesy of GENERAL MOTORS CORP.
