Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push back the rear seat back.
  2. Remove the push-pin retainer from the rear shoulder belt guide using the J 38778.
  3. Remove the rear shoulder belt guide from the lower rear quarter trim panel.

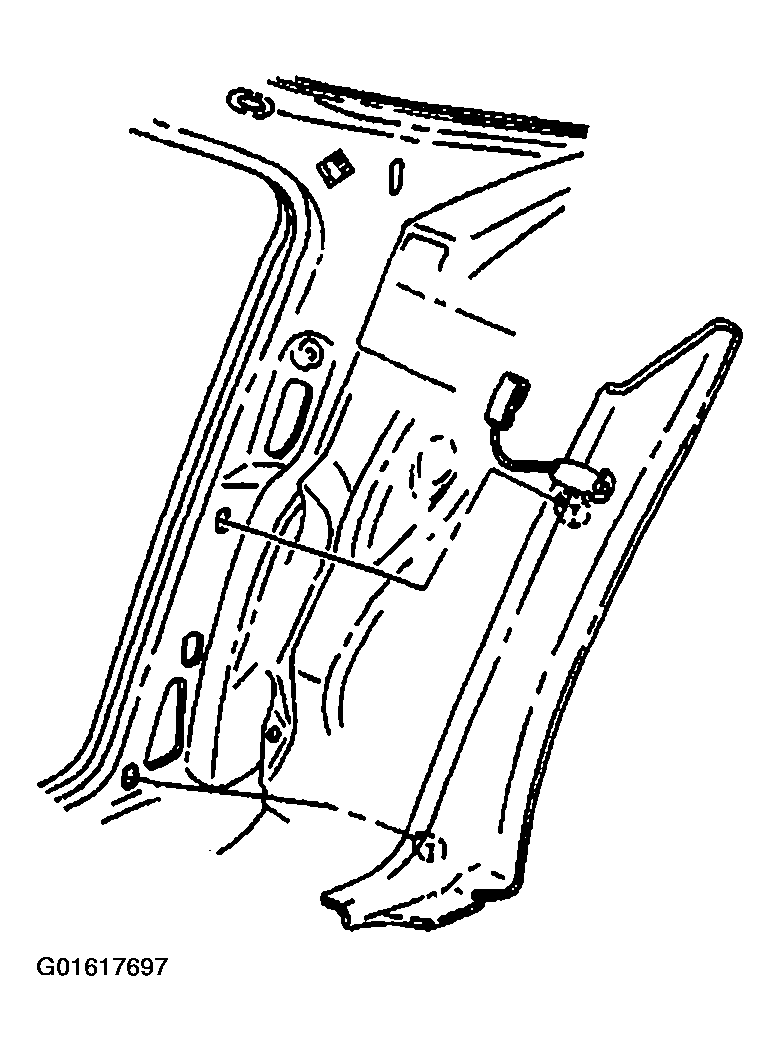

    Fig 1: Rear Shoulder Belt Guide
    G01617697Courtesy of GENERAL MOTORS CORP.
