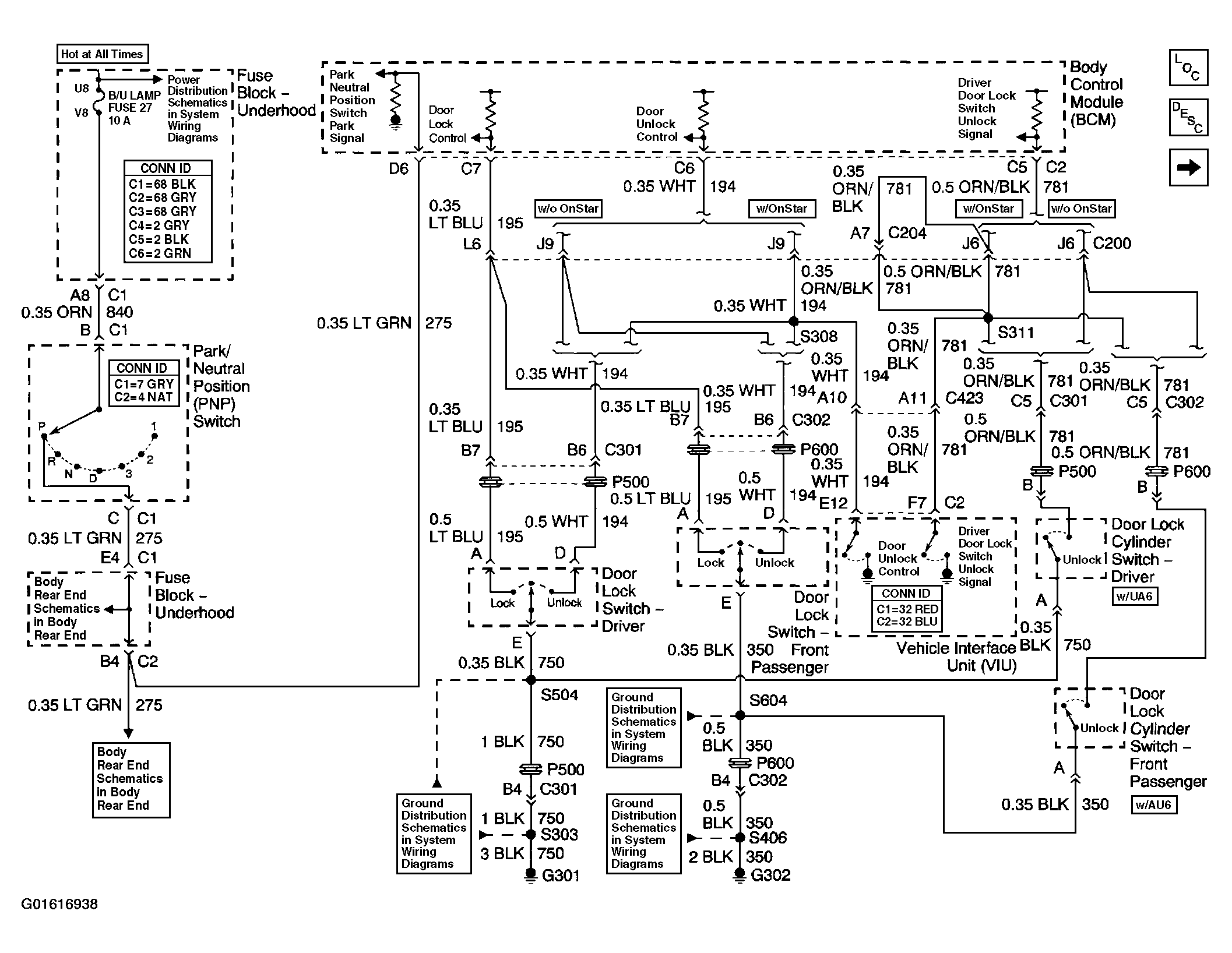

Fig 1: Door Lock/Indicator Schematics (Door Lock Switches)
Courtesy of GENERAL MOTORS CORP.

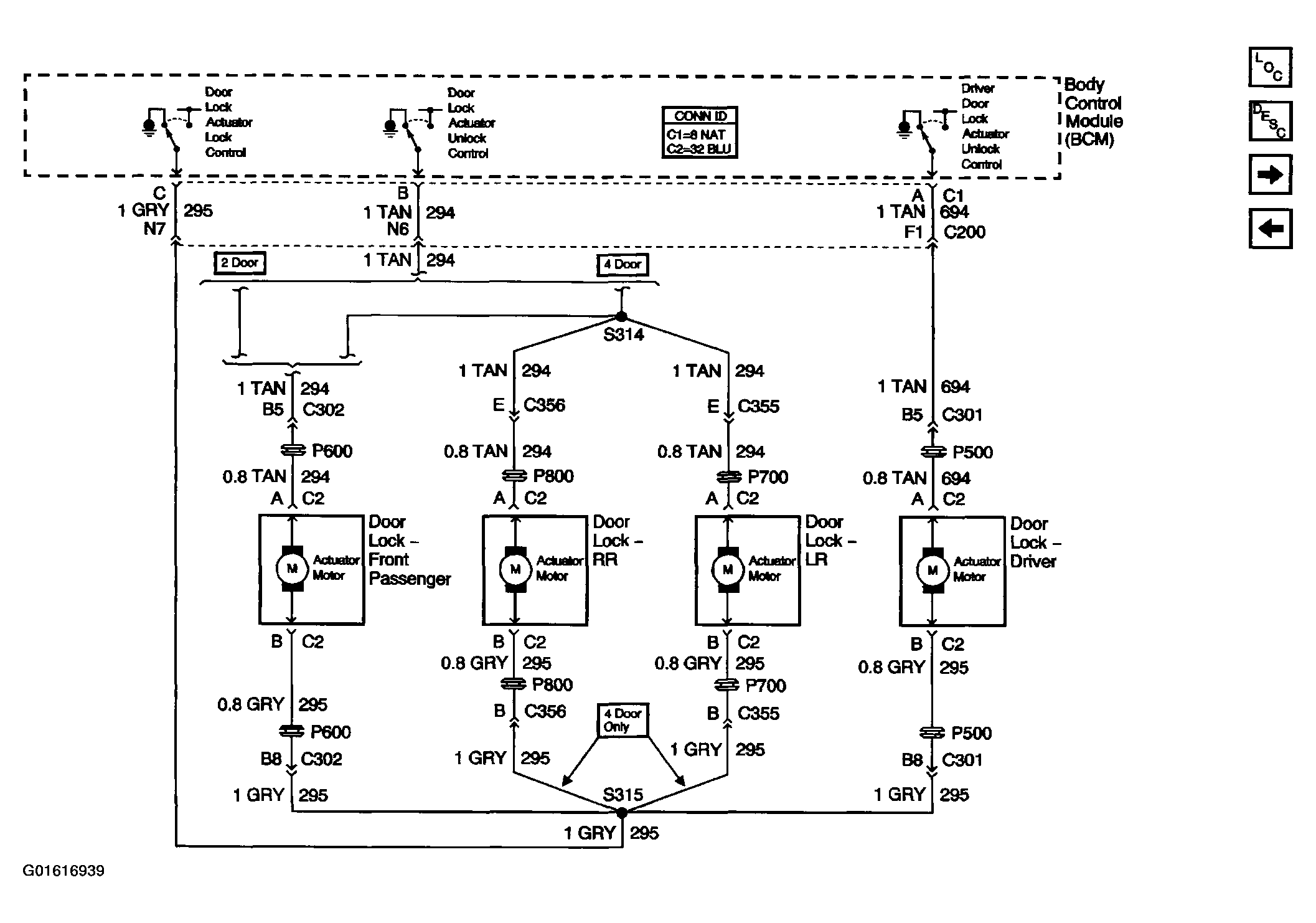

Fig 2: Door Lock/Indicator Schematics (Door Lock Actuators)
Courtesy of GENERAL MOTORS CORP.

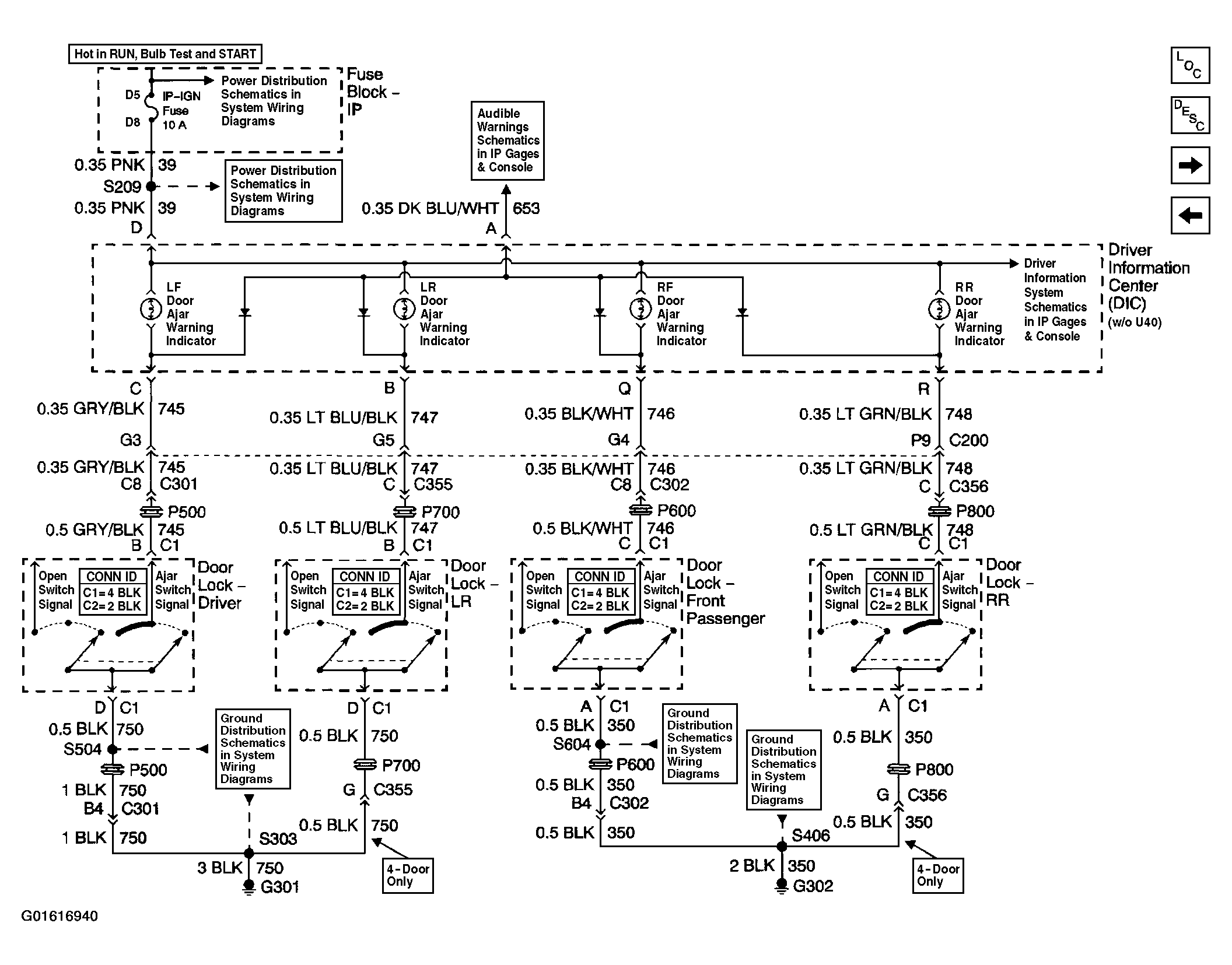

Fig 3: Door Lock/Indicator Schematics (Driver Information Center Door Ajar Indicators W/O RPO U40)
Courtesy of GENERAL MOTORS CORP.

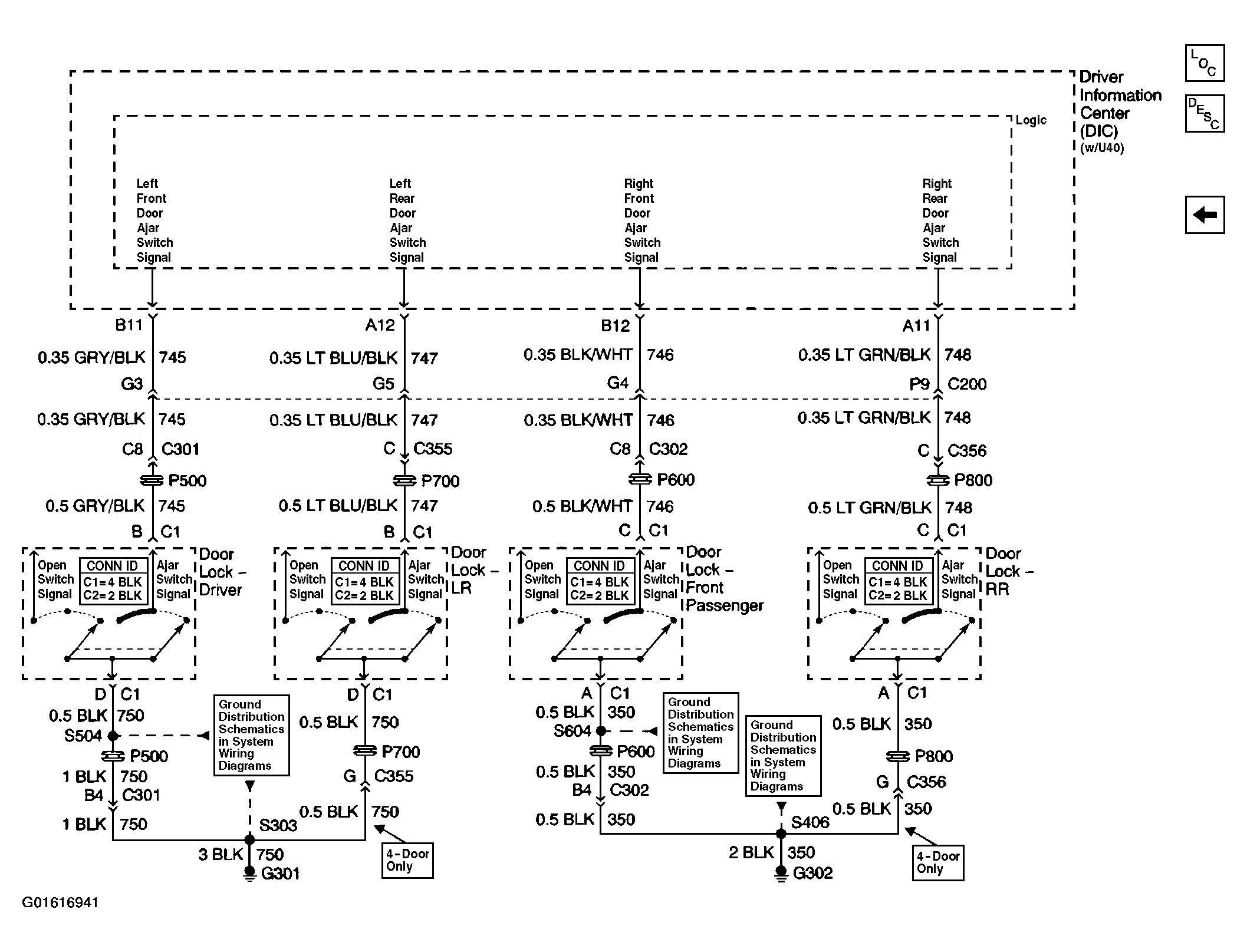

Fig 4: Door Lock/Indicator Schematics (Driver Information Center Door Ajar Indicators W/RPO U40)
