Removal Procedure

The rear door stationary window is part of the door window weatherstrip. If the stationary window needs service, replace the entire door window weatherstrip.

1. Place the rear door window in the full down position.
2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .

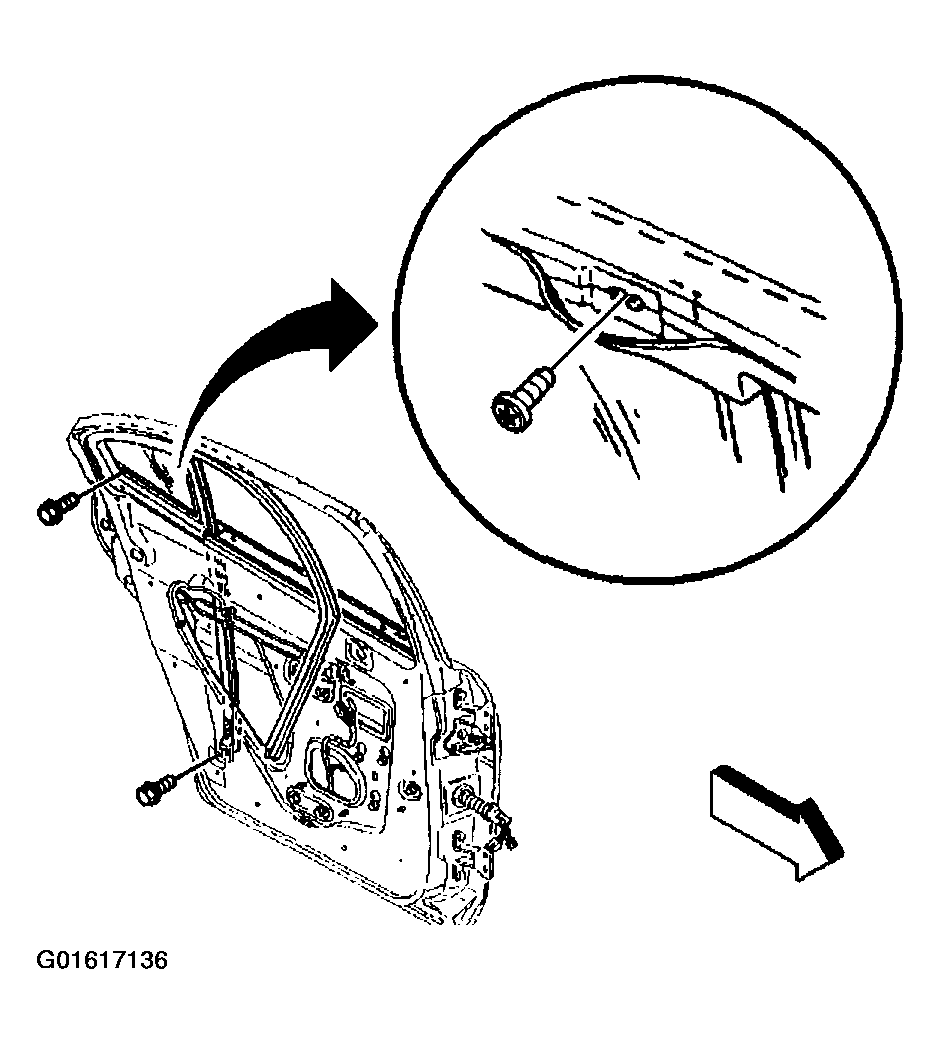

   Fig 1: Removing Bolts From Rear Door Window Weatherstrip

   Courtesy of GENERAL MOTORS CORP.
4. Remove the rear door inner energy absorber pad. Refer to Energy Absorber Pad Replacement - Inner Rear .
5. Remove the rear door inner sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
6. Remove the rear door stationary window molding. Refer to Window Molding Replacement - Rear Door Stationary .
7. Remove the bolts from the rear door window weatherstrip.
8. Remove the rear door window weatherstrip from the rear door.

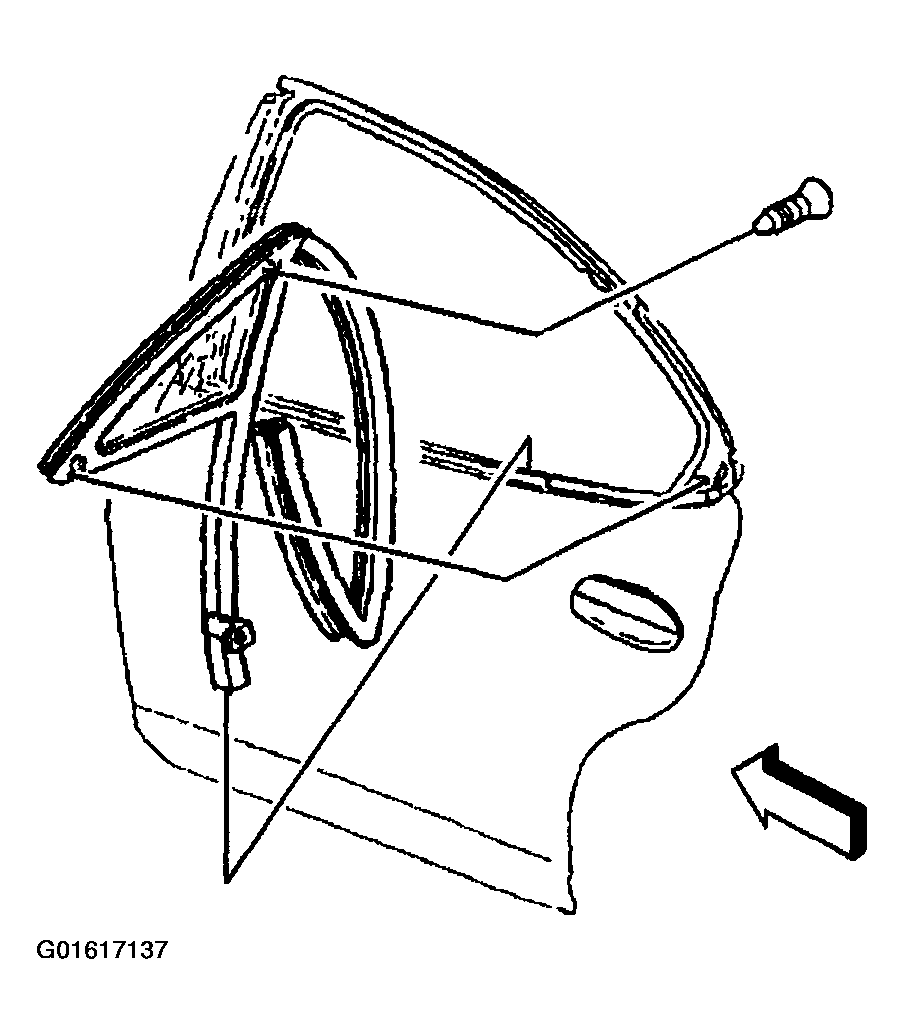

   Fig 2: Removing Rear Window Weatherstrip

   Courtesy of GENERAL MOTORS CORP.
