Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. Remove the rear door inner energy absorber. Refer to Energy Absorber Pad Replacement - Inner Rear .
  4. Remove the rear door window inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  5. Remove the rear door window outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  6. Remove the rear door frame applique. Refer to Door Frame Applique Replacement - Rear .
  7. Remove the bolts from the rear door window.
  8. Remove the rear door window.

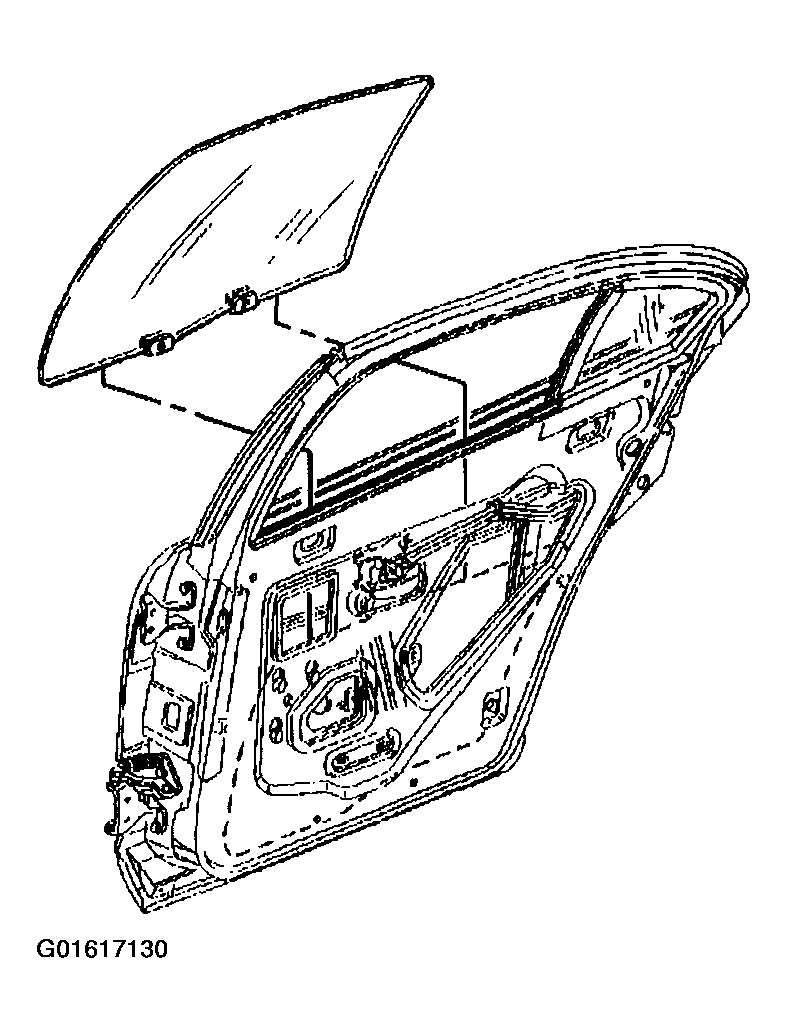

    Fig 1: Rear Door Window
    G01617130Courtesy of GENERAL MOTORS CORP.
