Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door inner energy absorber pad (coupe). Refer to Energy Absorber Pad Replacement - Inner Front (Coupe) .
  4. Remove the front door inner window belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  5. Remove the window to regulator bolts (2).

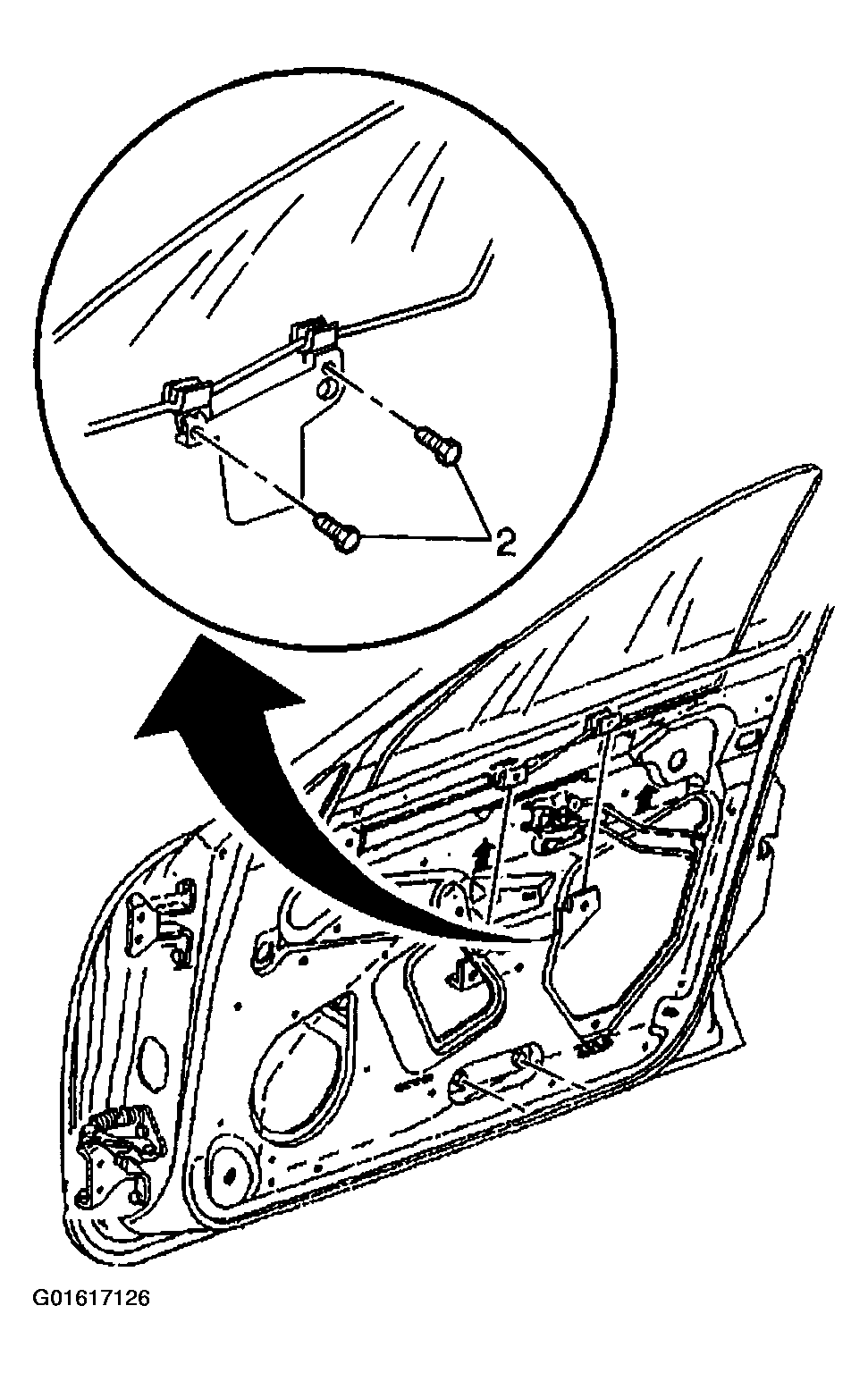

    Fig 1: Window-To-Regulator Bolts
    G01617126Courtesy of GENERAL MOTORS CORP.
  6. Remove the front door window from the front door.

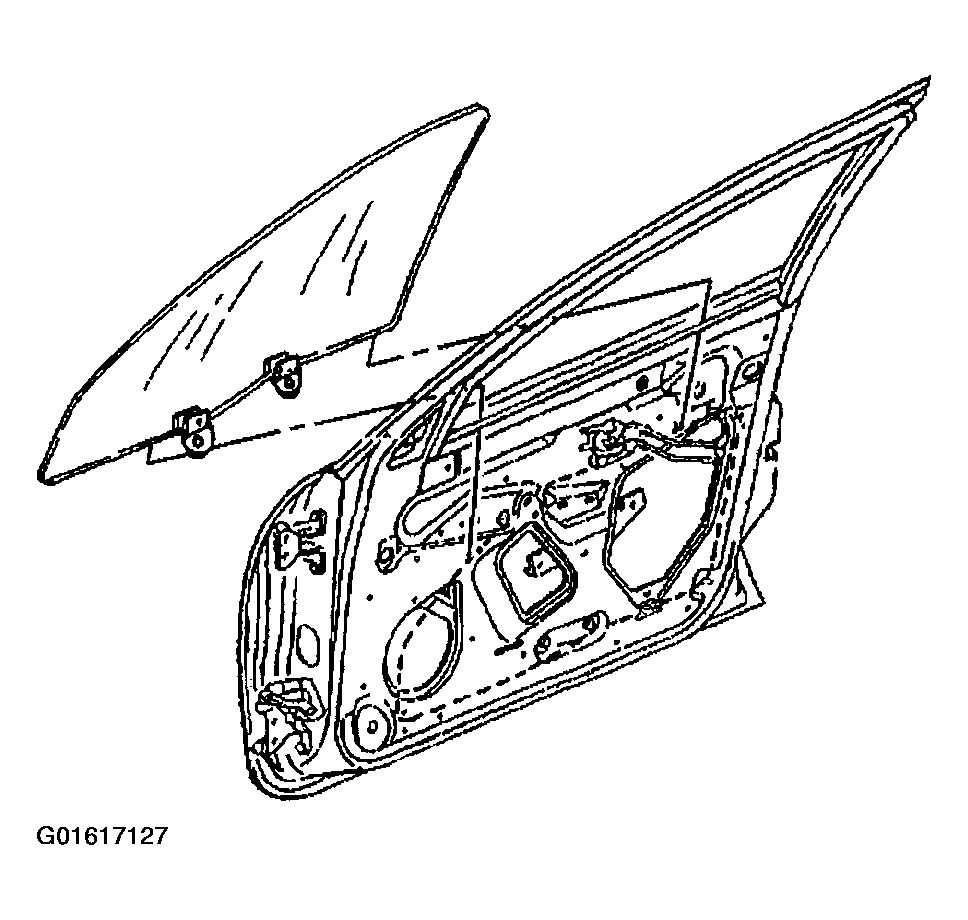

    Fig 2: Front Door Window
    G01617127Courtesy of GENERAL MOTORS CORP.
