Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door inner energy absorber pad (coupe). Refer to Energy Absorber Pad Replacement - Inner Front (Coupe) .
  4. Raise the front door window far enough in order to gain access through the inner door panel to the window to regulator bolts (2).
  5. Remove the bolts from front door window to regulator.
  6. Raise the front door window to the full up position.
  7. Tape the front door window in the full up position.
  8. Disconnect the electrical connector.

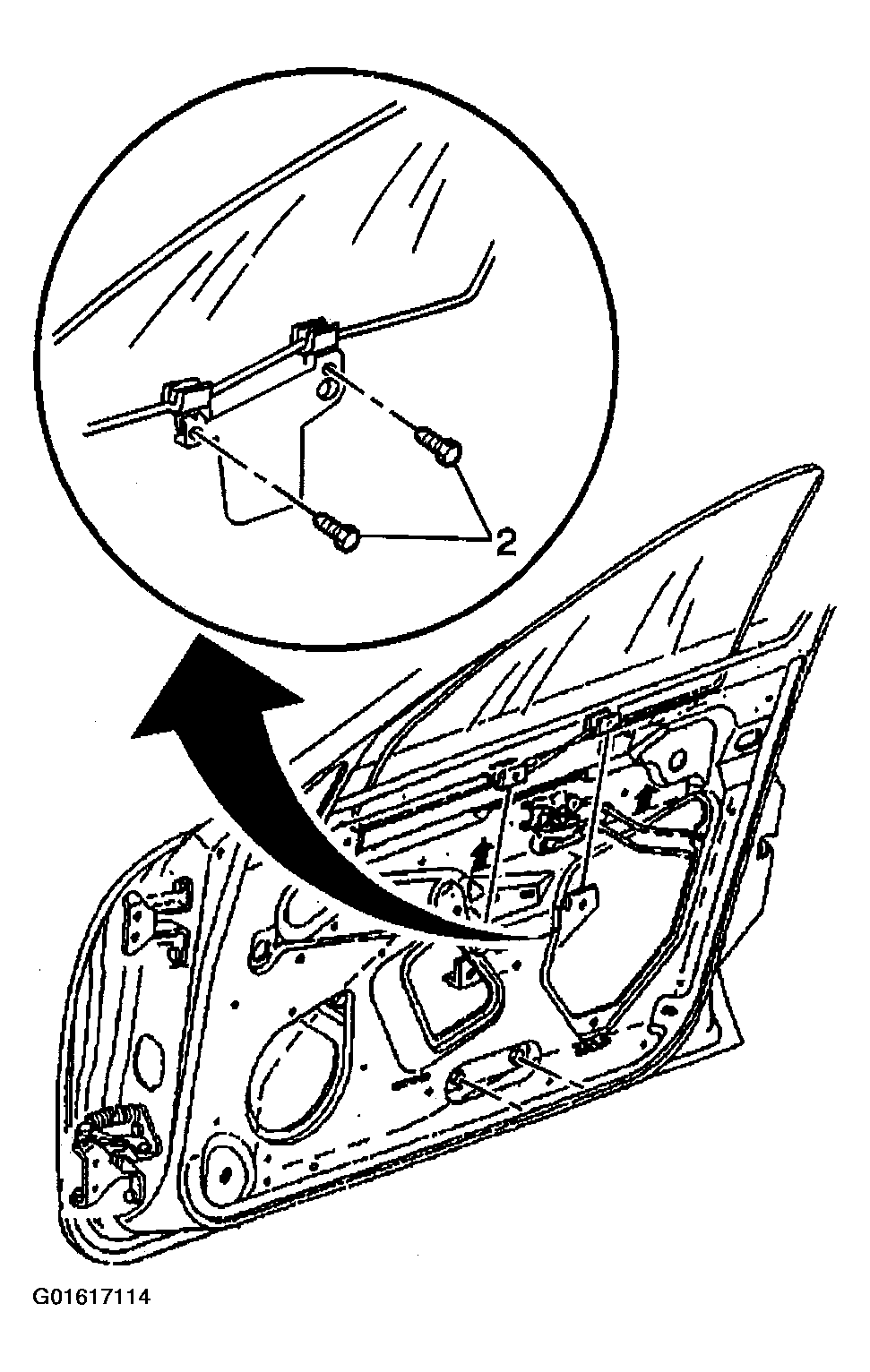

    Fig 1: Window-To-Regulator Bolts
    G01617114Courtesy of GENERAL MOTORS CORP.
  9. Remove the bolts from the front door window regulator and motor.
  10. Remove the front door window regulator from the front door.

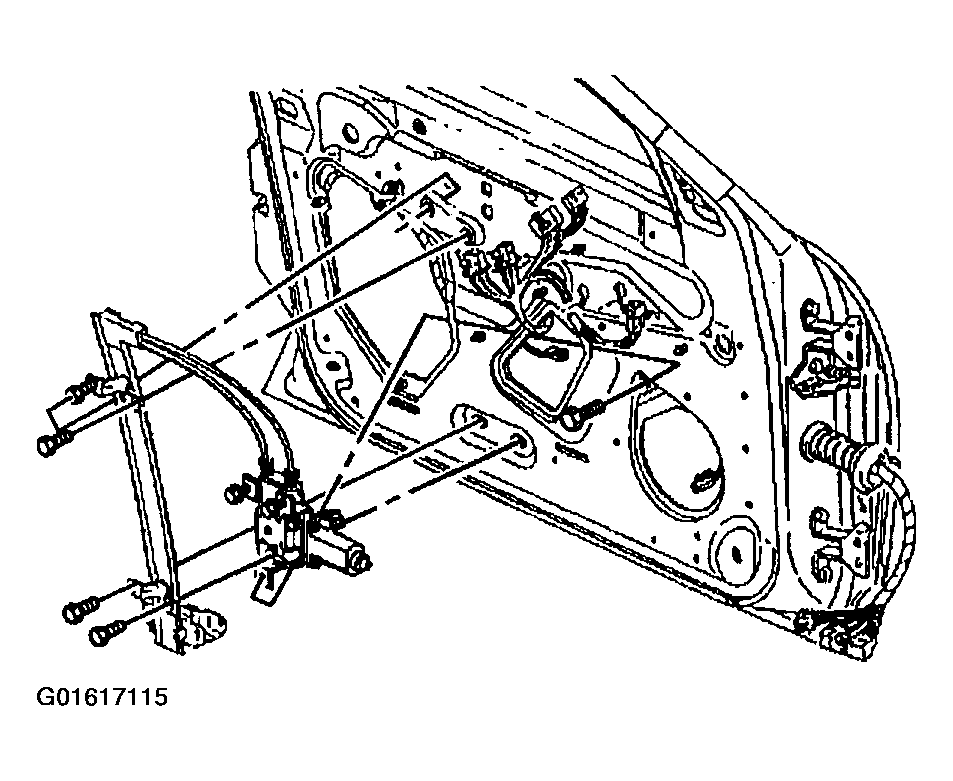

    Fig 2: Front Door Window Regulator
    G01617115Courtesy of GENERAL MOTORS CORP.
