Removal Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear door window outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
- Remove the rear door window channel retainer. Refer to Window Channel Retainer Replacement - Rear Door .

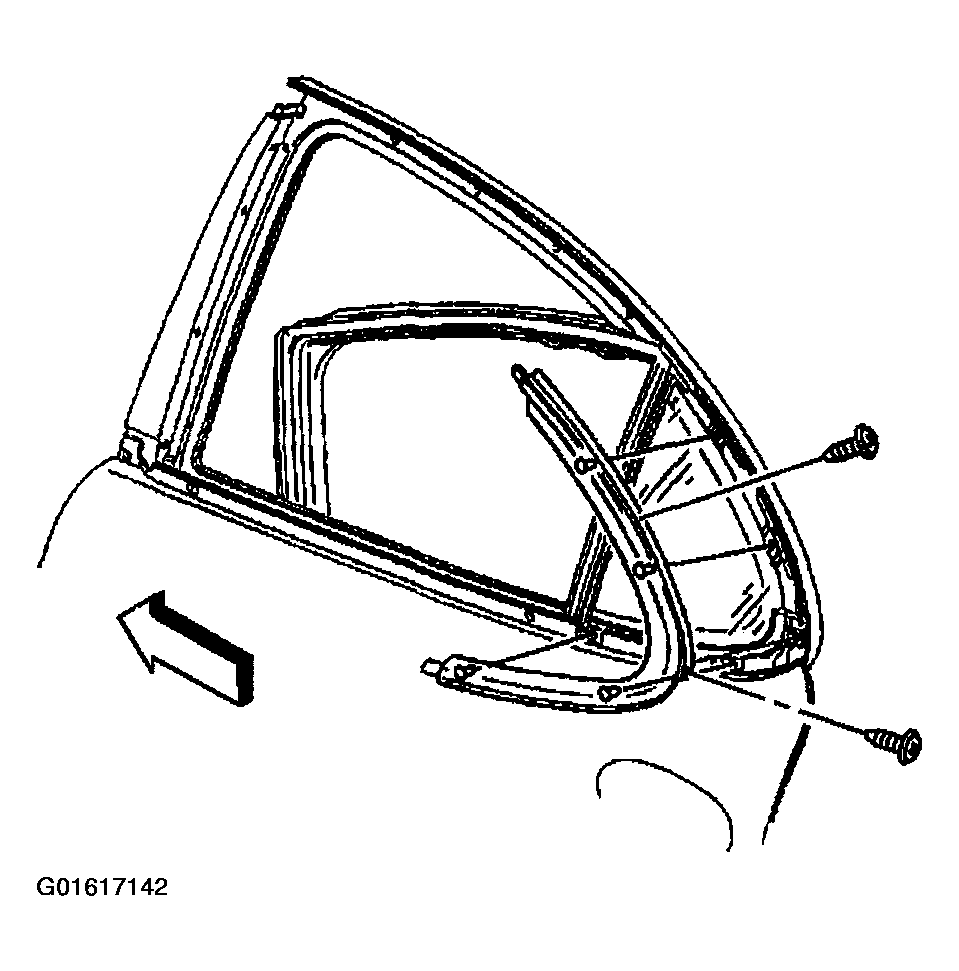

- Remove the screws from the rear door stationary window molding.
- Slide the molding rearward at the bend in order to release the molding.
- Pull the molding away from the stationary window module.
Some back and forth movement may be needed in order to release the rear door stationary window molding mounting pins from the door stationary window module.
- Remove the stationary window molding from the rear door.
