Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside mirror. Refer to Mirror Replacement - Power .
  2. Pull down and reposition the front door window weatherstrip in order to gain access to the screws.
  3. Loosen the front door frame applique screws. Refer to Door Frame Applique Replacement - Front .
  4. Remove the screws from the front door window channel retainer.
  5. Remove the front door window channel retainer from the front door.

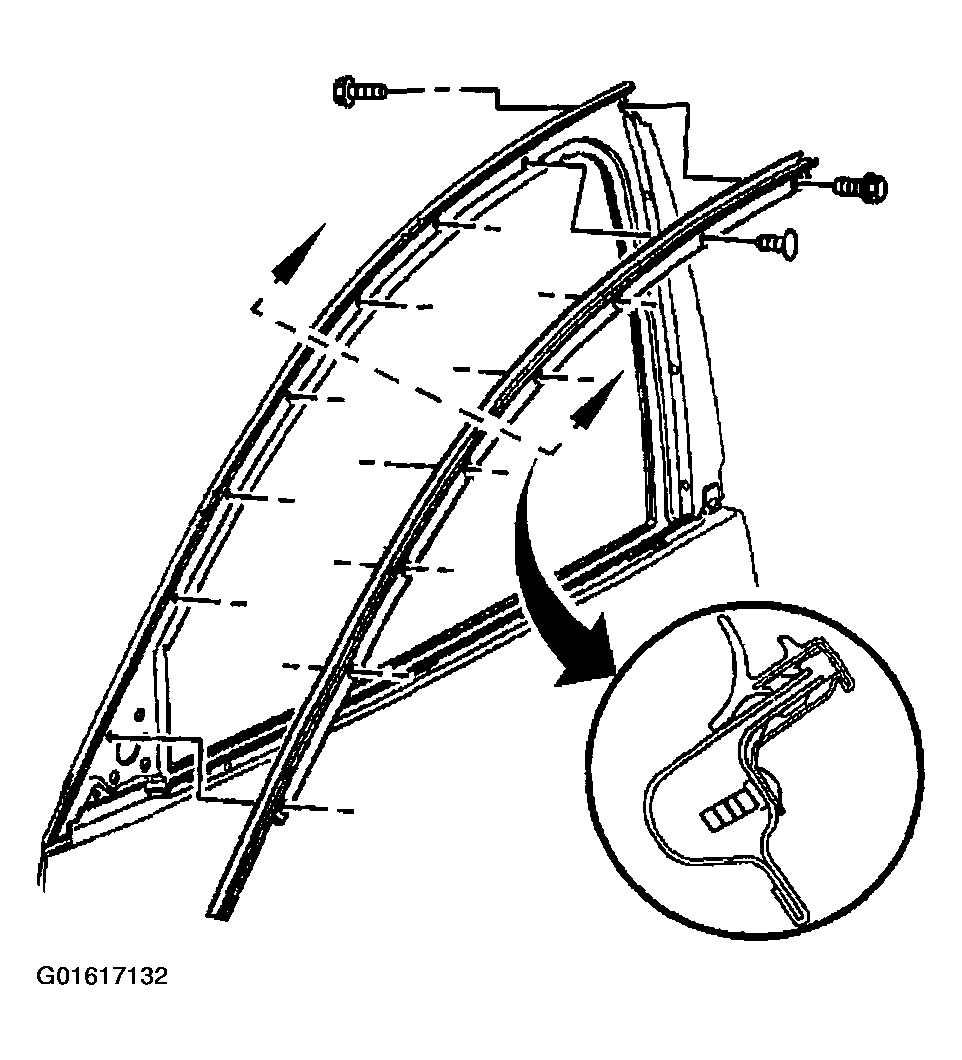

    Fig 1: Front Door Window Channel Retainer
    G01617132Courtesy of GENERAL MOTORS CORP.
