Adjustment Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front and/or rear door trim panel.
- For the front door, refer to Trim Panel Replacement - Side Front Door .
- For the rear door, refer to Trim Panel Replacement - Side Rear Door .
- Remove the front and/or rear door water deflector.
- For the front door, refer to Water Deflector Replacement - Front Door .
- For the rear door, refer to Water Deflector Replacement - Rear Door .
NOTE: Refer to FASTENER NOTICE . - Remove the front and/or rear door inner energy absorber.
- For the front door, refer to Energy Absorber Pad Replacement - Inner Front (Coupe) .
- For the rear door, refer to Energy Absorber Pad Replacement - Inner Rear .
- Using a flat-bladed tool, straighten the run channel lip by pulling it out to its correct position.
- Use a flat-bladed tool to push the run channel rearward to seat it in the door frame.
- Condition 2.3: Loosen the window to regulator bolts.

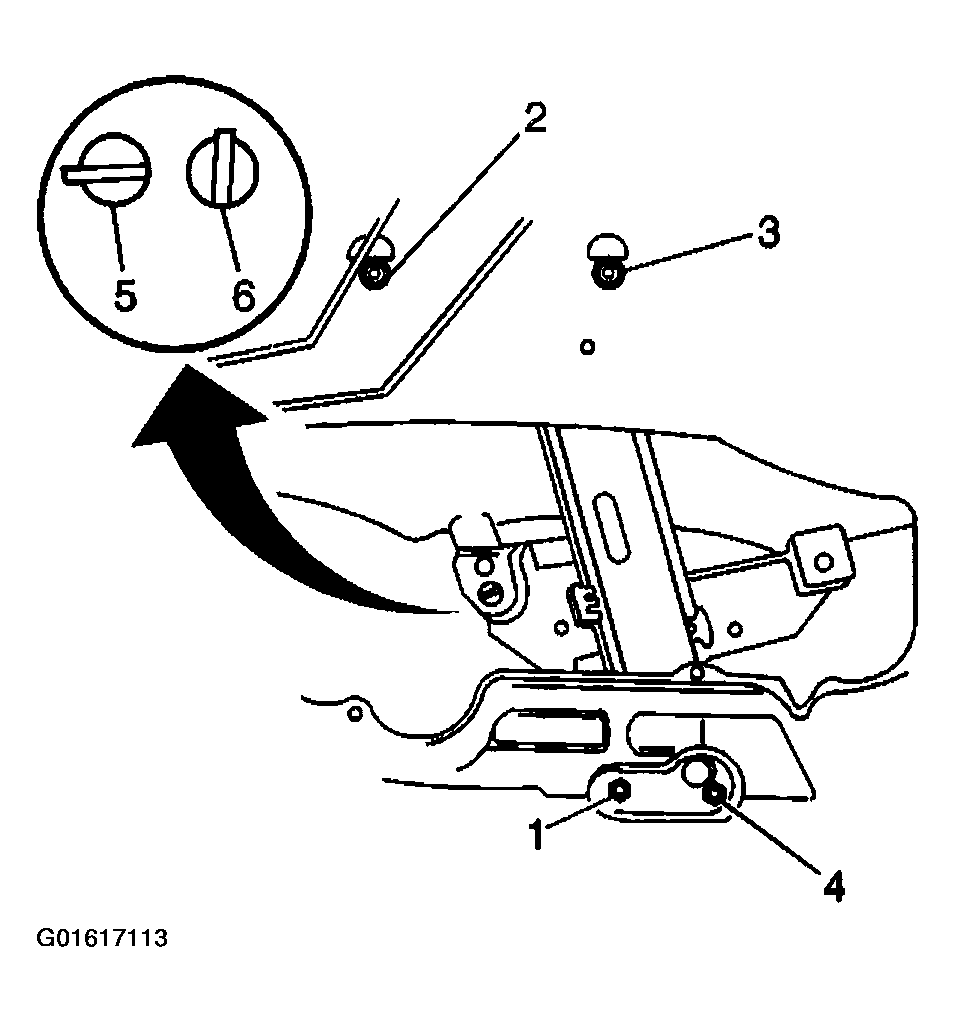

Rotate the cam (5) on the window regulator plate so that the slot (6) is straight up and down. In this position, the back of the glass will tilt forward.
Tighten
Tighten the 2 window to regulator bolts to 10 N.m (89 lb in).
- Loosen the window to regulator bolts.
Loosen the 4 regulator bolts.
Now, tighten the window regulator bolts according to the tightening sequence: 1,2,3, and 4.
Tighten
Tighten the 4 window regulator bolts to 10 N.m (89 lb in).
Tighten the 2 window to regulator bolts.
Tighten
Tighten the 2 window regulator bolts to 10 N.m (89 lb in).
- Connect the power window switch.
- Install the front and/or rear door inner energy absorber.
- For the front door, refer to Energy Absorber Pad Replacement - Inner Front (Coupe) .
- For the rear door, refer to Energy Absorber Pad Replacement - Inner Rear .
- Install the front and/or rear door water deflector.
- For the front door, refer to Water Deflector Replacement - Front Door .
- For the rear door, refer to Water Deflector Replacement - Rear Door .
- Install the front and/or rear door trim panel.
- For the front door, refer to Trim Panel Replacement - Side Front Door .
- For the rear door, refer to Trim Panel Replacement - Side Rear Door .
