Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear door window in the full down position.
  2. Remove the rear door trim panel.
  3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the rear door window inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  5. Remove the rear door stationary window molding. Refer to Window Molding Replacement - Rear Door Stationary .
  6. Remove the rear door window weatherstrip from the rear door.

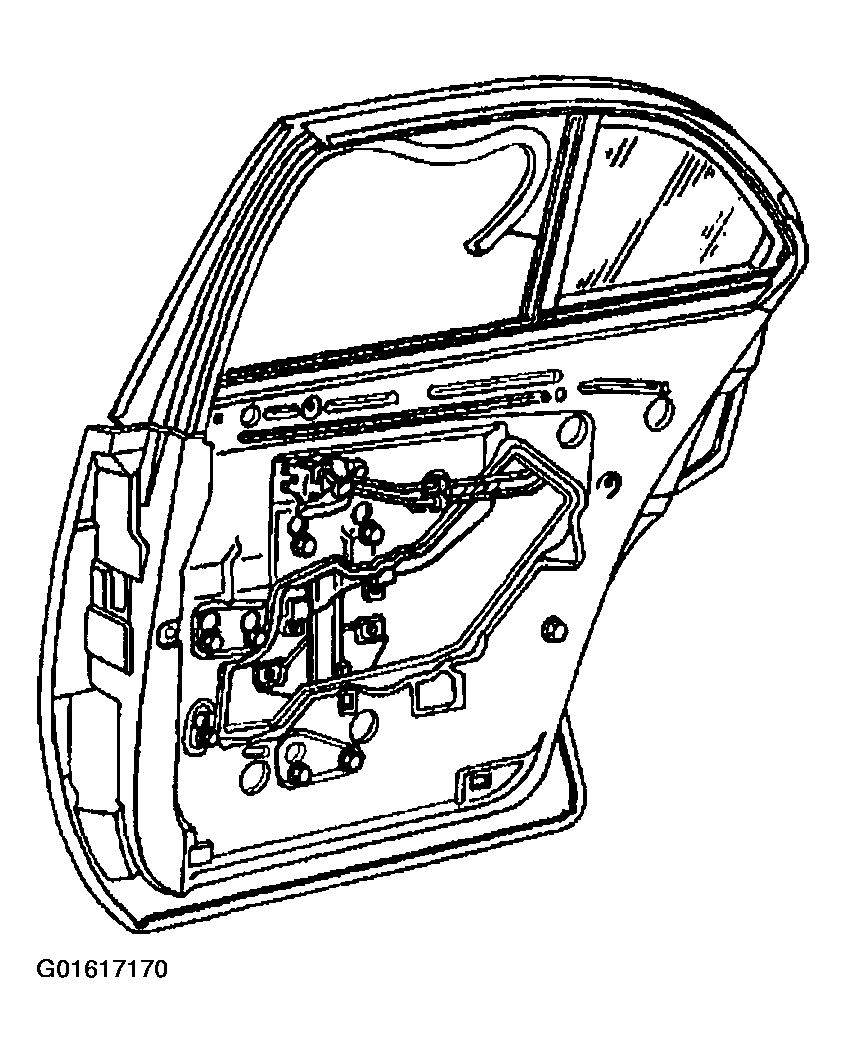

    Fig 1: Rear Door Window Weatherstrip
    G01617170Courtesy of GENERAL MOTORS CORP.
