Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear carpet retainers. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .
  2. Pull the lower edges of the weatherstrip and retainers away from the door.
  3. Pull the upper edges of the weatherstrip from the door.
  4. Remove the weatherstrip from the door.

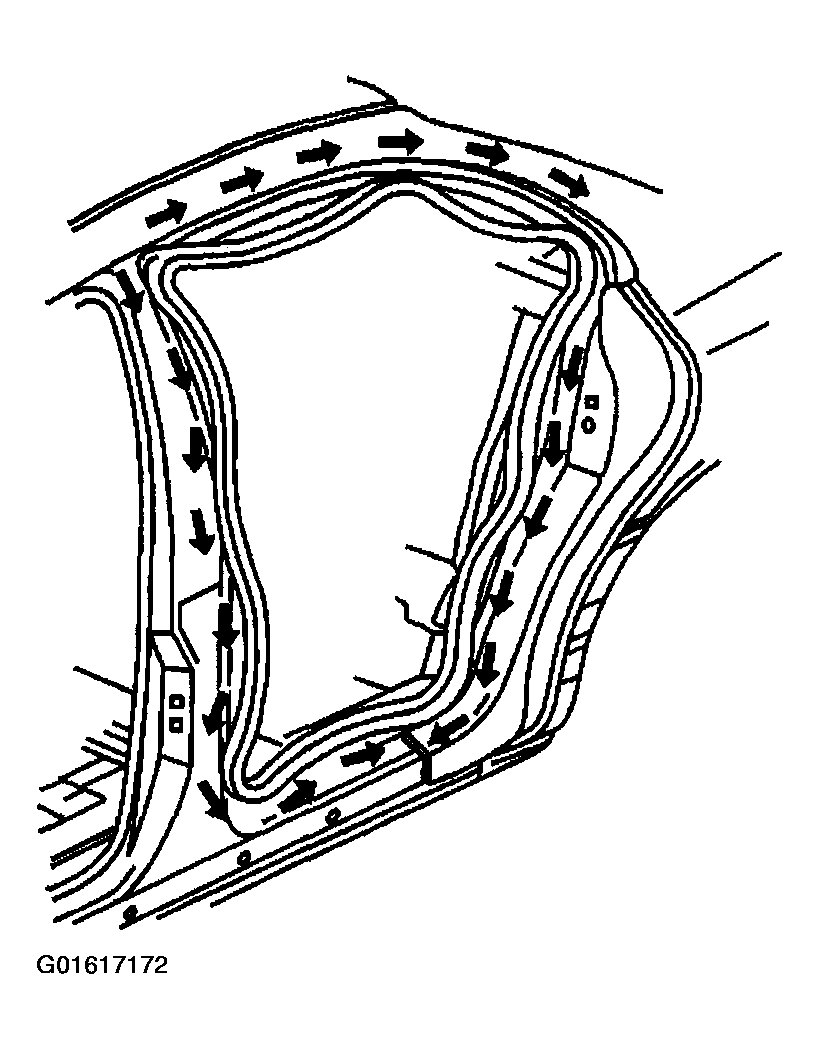

    Fig 1: Rear Door Opening Weatherstrip
    G01617172Courtesy of GENERAL MOTORS CORP.
