Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the door handle water deflector (1).
  3. Carefully peel the rear door water deflector (2) away from the rear door inner panel.

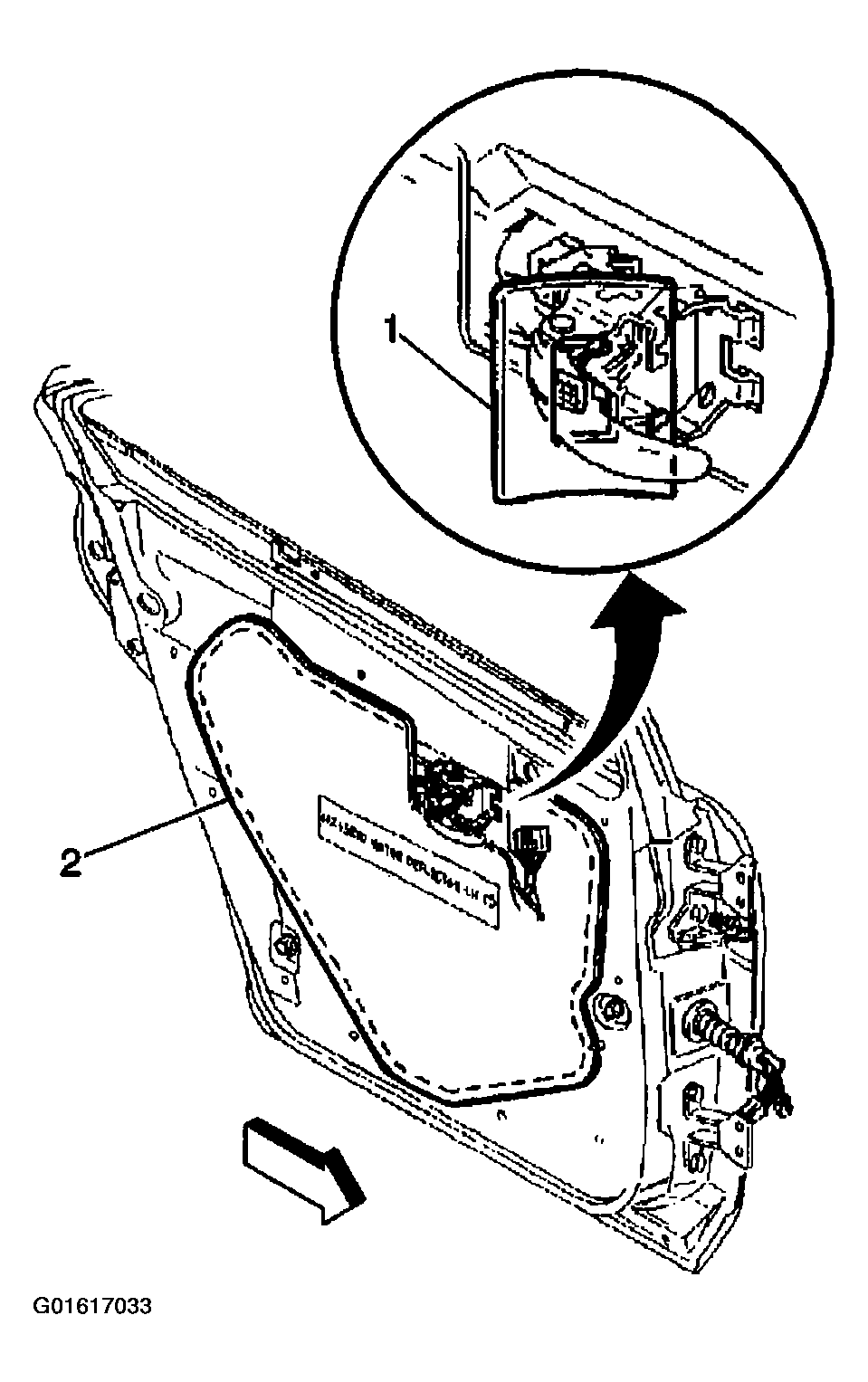

    Fig 1: Rear Door & Door Handle Water Deflectors
    G01617033Courtesy of GENERAL MOTORS CORP.
