Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door power window switch. Refer to SEAT BACK REPLACEMENT -- REAR (STATIONARY) or SEAT BACK REPLACEMENT -- REAR (FOLDING) .
  2. Remove the rear door trim panel plugs from under the pull handle.
  3. Remove the screws from behind the trim plugs.
  4. Beginning at the lower rear of the door, use J 38778  to remove the rear door trim panel from the rear door inner panel.
  5. Remove the rear door trim panel from the vehicle.

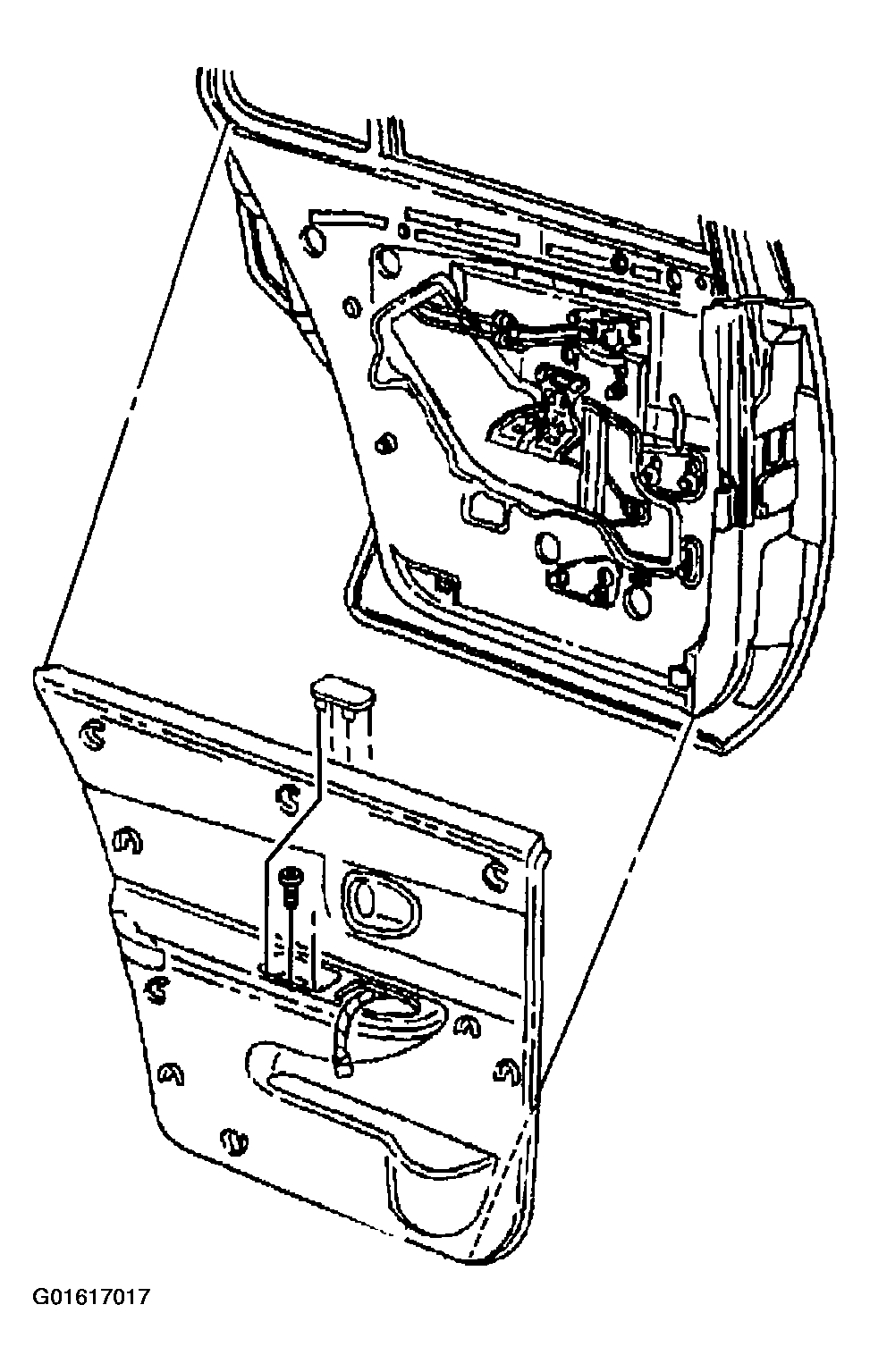

    Fig 1: Rear Door Trim Panel
    G01617017Courtesy of GENERAL MOTORS CORP.
