Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door switch mounting plate. Refer to Front Door Switch Replacement .
  2. Remove the 2 front door trim panel plugs from under the pull handle.
  3. Remove the screws from behind the trim plugs.
  4. Use J 38778  to disengage the push-in retainers, remove the front door trim panel from the front door inner panel. Begin at the lower rear of the panel.

    Support the front door trim panel while disconnecting the electrical connectors.

  5. Disconnect the electrical connectors from the speaker and door reflector light.
  6. Remove the front door trim panel from the vehicle.

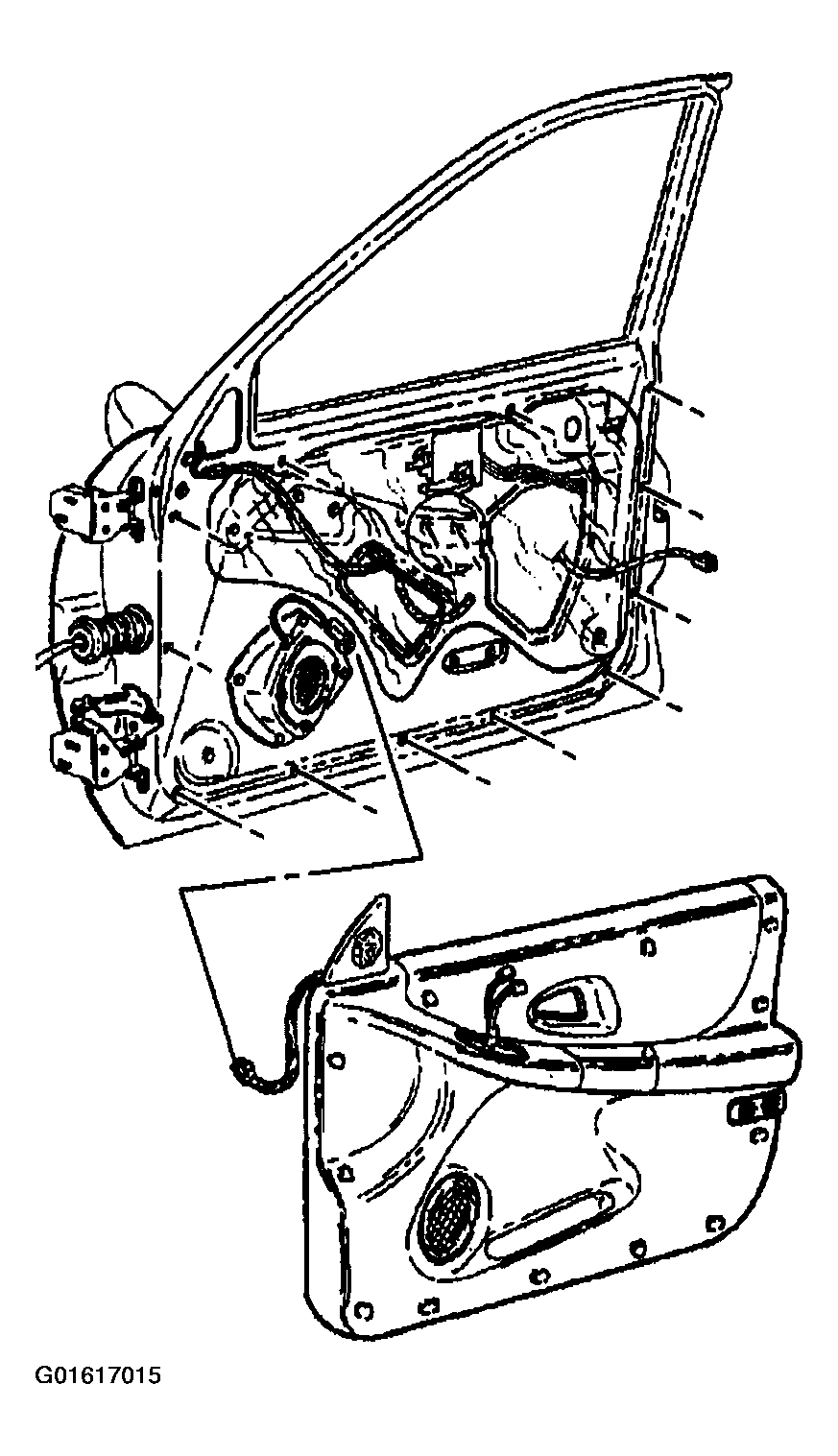

    Fig 1: Front Door Trim Panel
    G01617015Courtesy of GENERAL MOTORS CORP.
