Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door outer belt sealing strip screw.
  2. Lift to remove the sealing strip (3) from the door flange.

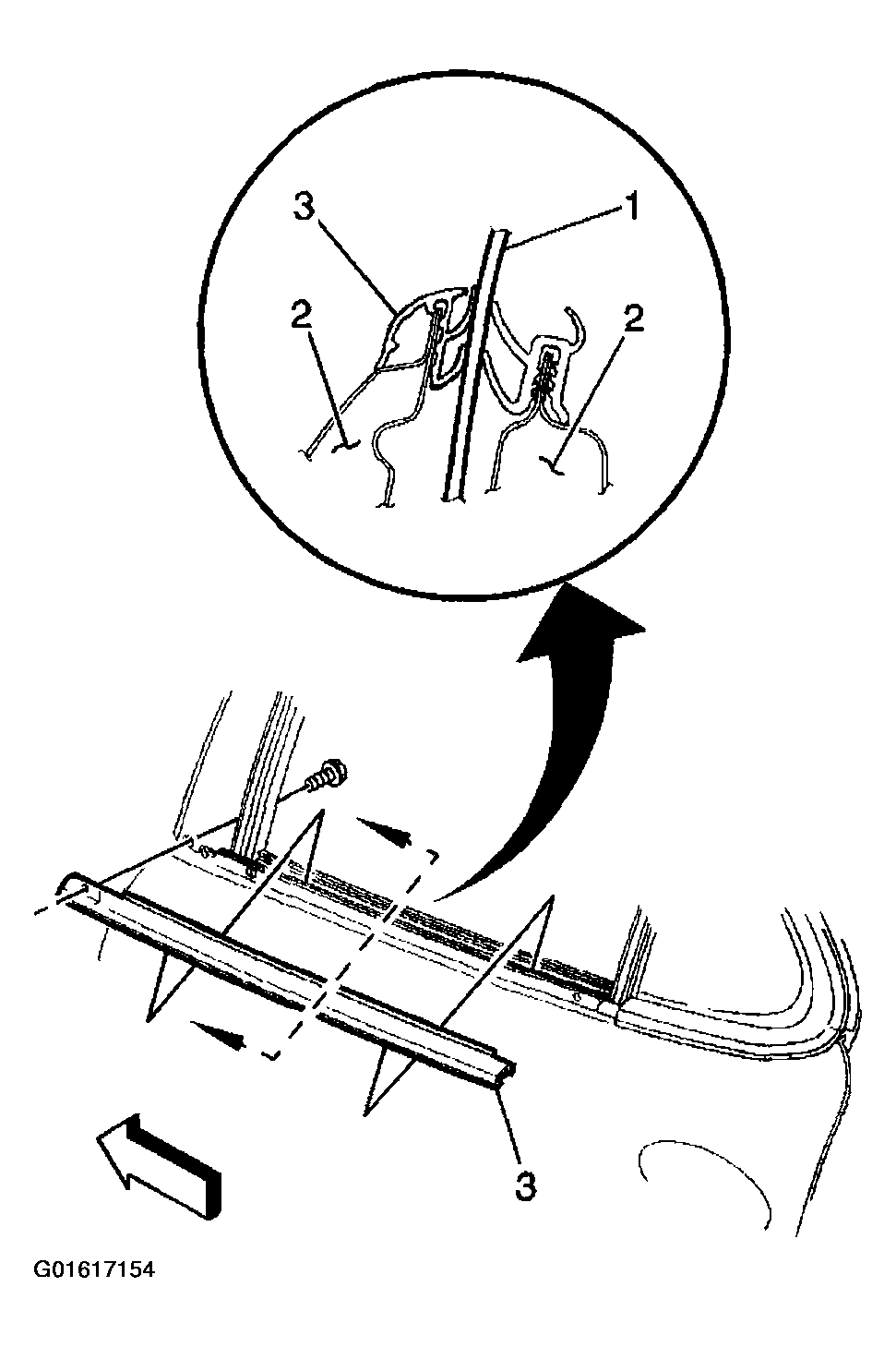

    Fig 1: Rear Door Window Belt Outer Sealing Strip
    G01617154Courtesy of GENERAL MOTORS CORP.
