Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the front door window.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the front door window sealing strip by lifting it off the weld flange.

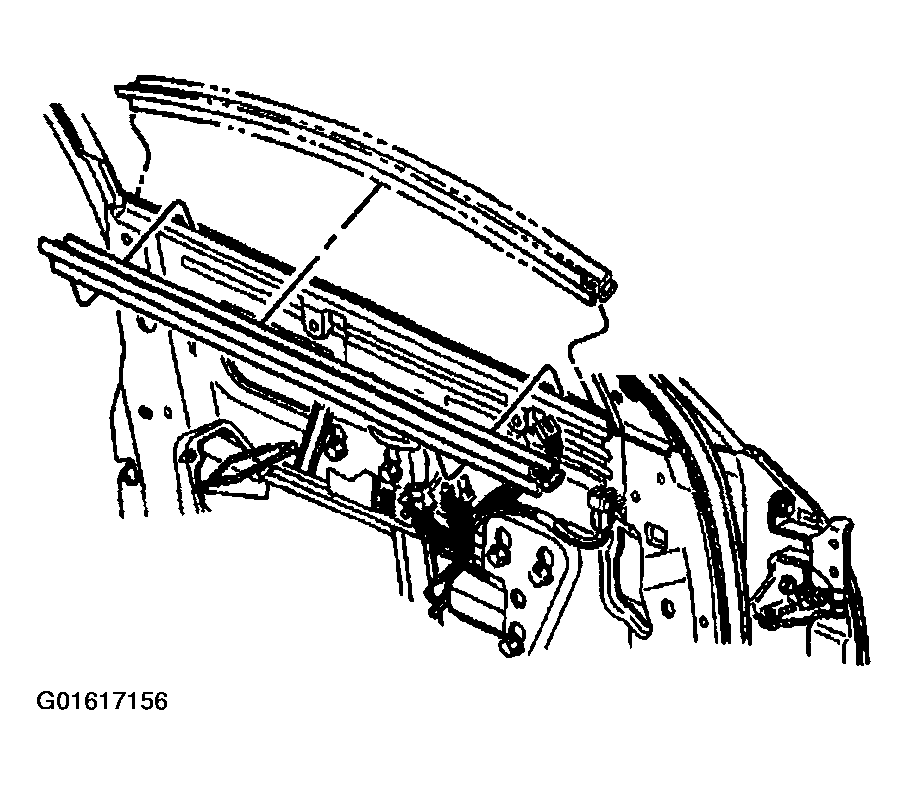

    Fig 1: Front Door Window Sealing Strip
    G01617156Courtesy of GENERAL MOTORS CORP.
