Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door rubber conduit (1) from the center pillar.
  2. Disconnect the rear door wiring harness electrical connector.
  3. Remove the rear door rubber conduit (1) from the rear door.

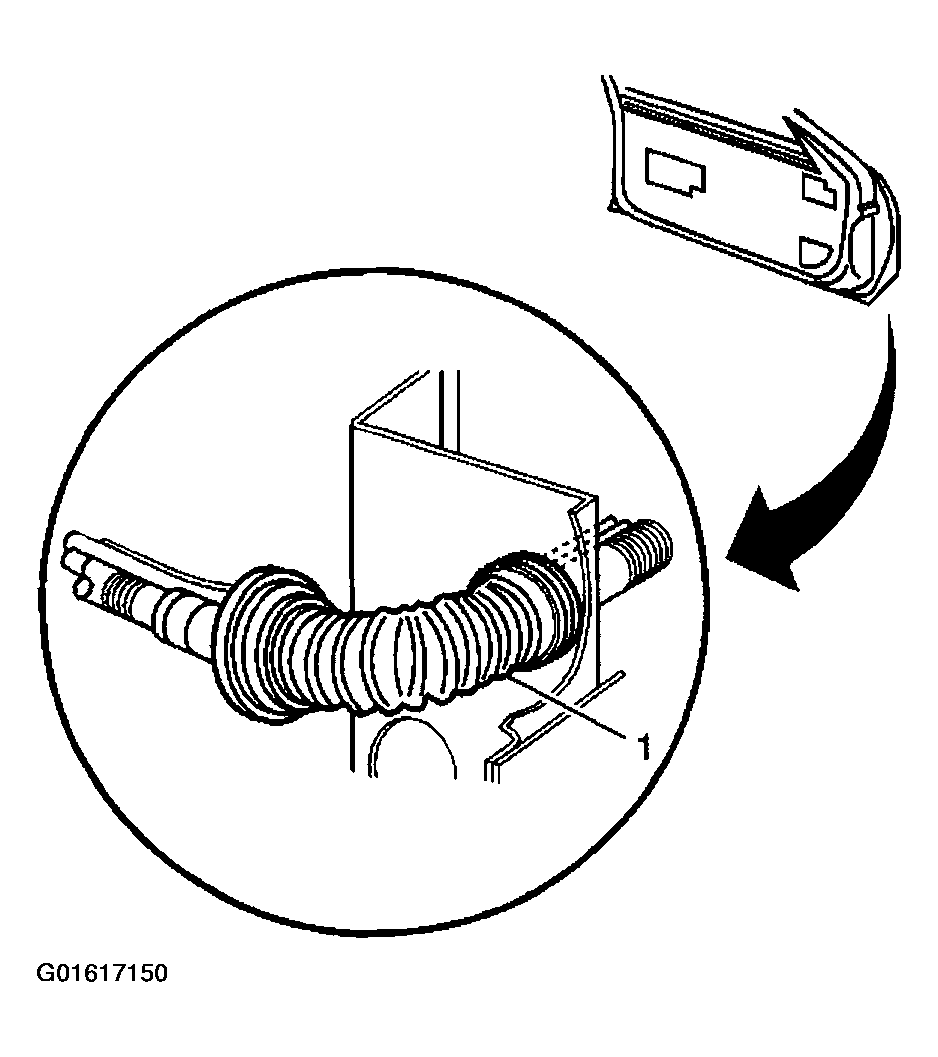

    Fig 1: Rear Door Rubber Conduit
    G01617150Courtesy of GENERAL MOTORS CORP.
