Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: When removing a power window switch, the ignition switch must be in the OFF position. This will eliminate the possibility of shorting out the switch if a flat-bladed tool, awl, or metal object is used to remove the power window switch from the wiring harness.
  1. Apply protective coating/tape at the rear of the rear door power window switch for both the right and/or left door.

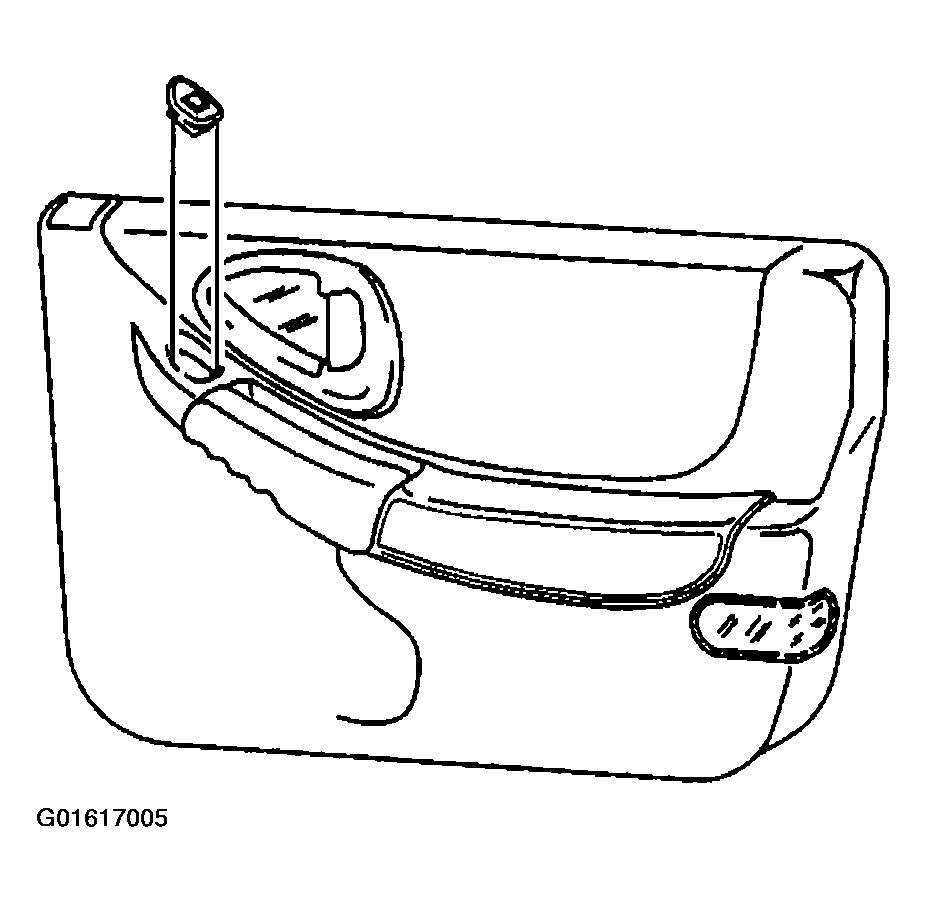

    Fig 1: Locating Rear Door Power Window Switch
    G01617005Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear door power window switch the rear door trim panel using a small, flat-bladed tool, inserted at the rear of the rear door power window switch plastic mounting plate.

    Press forward in order to release the rear door power window switch mounting plate.

  3. With the rear retainer released, pull the switch to the rear and lift up to remove the mounting plate and switch.
  4. Disconnect the electrical connector from the rear door power window switch.
  5. Remove the rear door power window switch from the mounting plate.

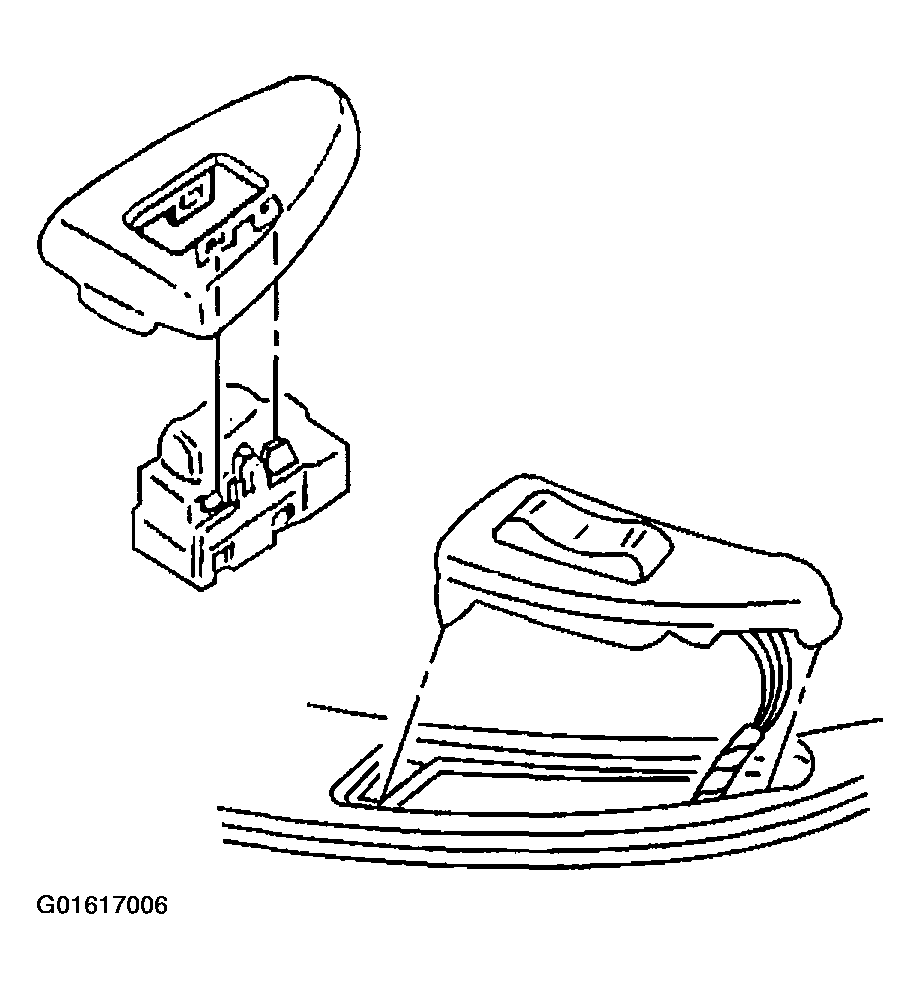

    Fig 2: Rear Door Power Window Switch
    G01617006Courtesy of GENERAL MOTORS CORP.
