Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Disconnect the electrical connector to the mirror wire harness.
    CAUTION: Refer to EYE PROTECTION CAUTION .
  3. Remove the mirror face. Refer to Mirror Face Replacement .

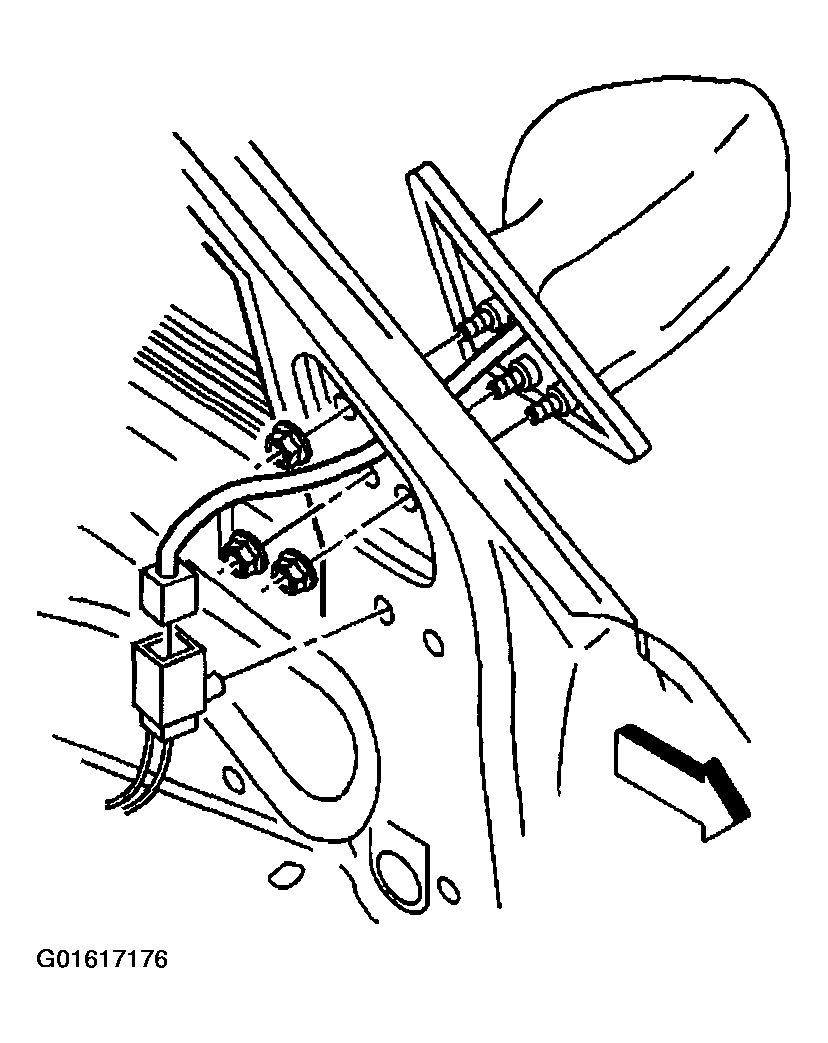

    Fig 1: Power Mirror
    G01617176Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws from the mirror motor.
  5. Pull the motor electrical harness through the mirror housing.
  6. Remove the motor from the mirror housing.

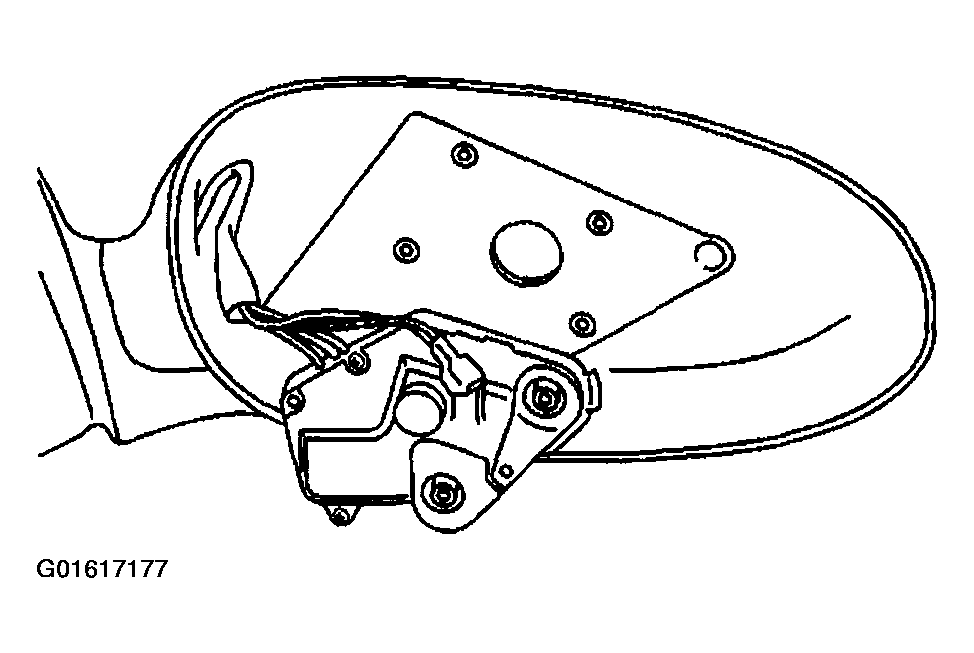

    Fig 2: Power Mirror Motor
    G01617177Courtesy of GENERAL MOTORS CORP.
