Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Using J 36604,  remove the rear door hinge spring from the rear door hinge.
  3. Remove the rear door hinge spring from the vehicle.

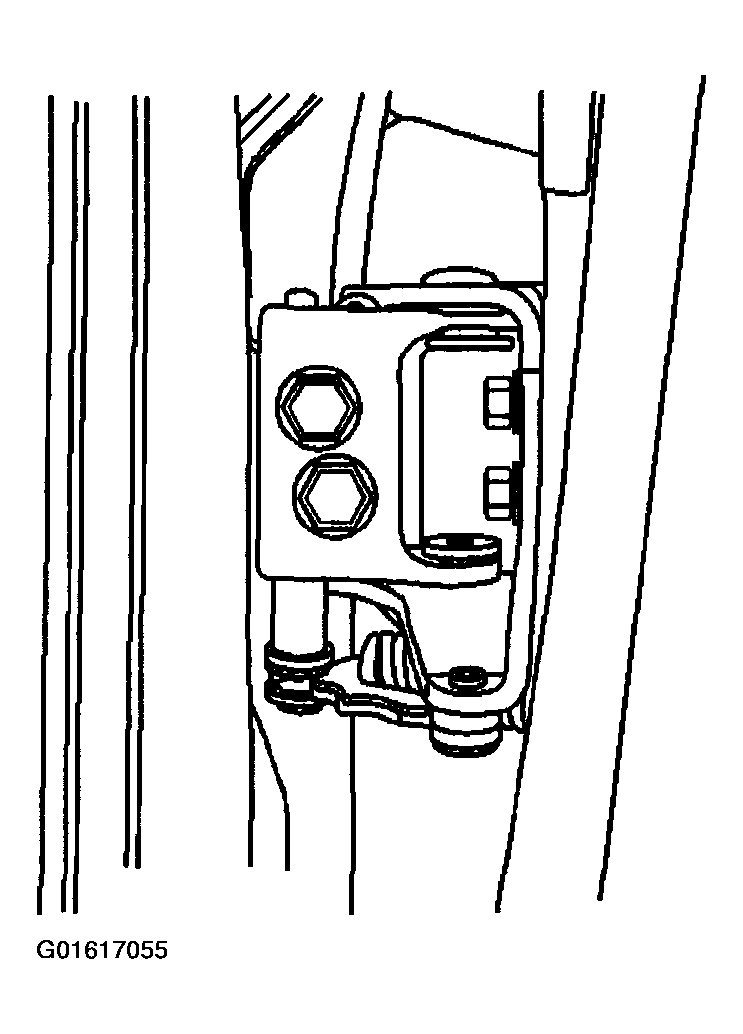

    Fig 1: Rear Door Hinge
    G01617055Courtesy of GENERAL MOTORS CORP.
