Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: This vehicle has energy-absorbing foam blocks for side impact protection. To help avoid personal injury in a collision, foam blocks that are damaged, or removed during repairs must be replaced. Failure to replace foam blocks that are removed can violate federal law.
  1. Open the rear door.
  2. Remove the rear door trim panel.
  3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the rear door energy absorber pad screw and clip from the rear door.
  5. Grasp the energy absorber with both hands and pull it away from the door.

    If necessary, warm the outer door panel to soften the adhesive.

  6. Use a rag and alcohol to clean the adhesive off the door panel.

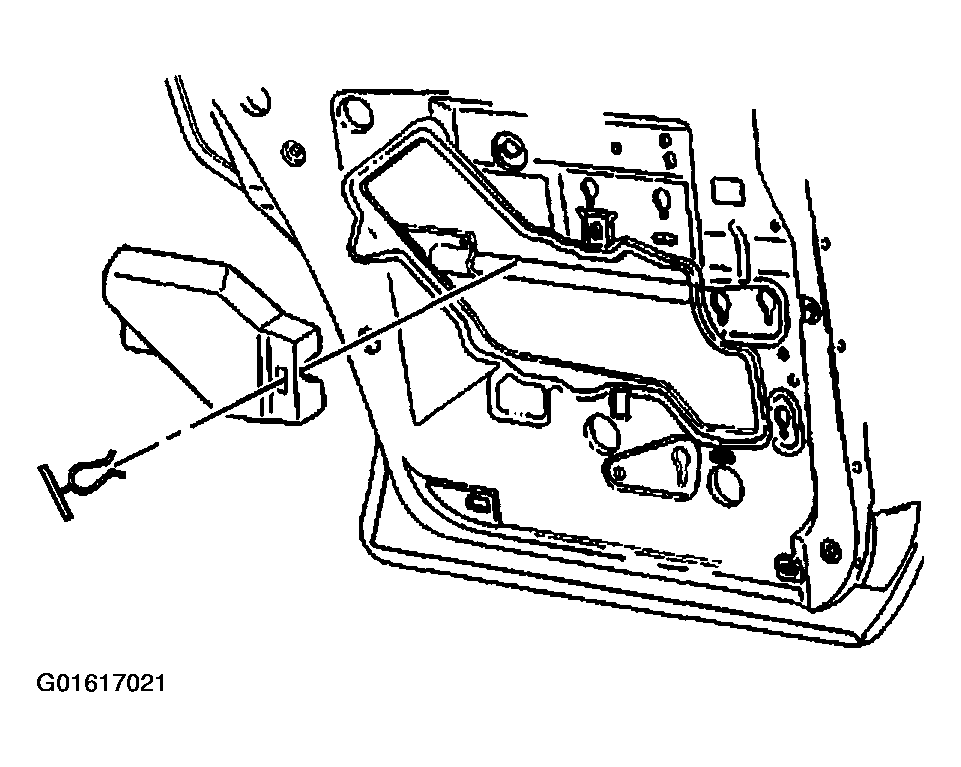

    Fig 1: Rear Door Outer Energy Absorber Pad
    G01617021Courtesy of GENERAL MOTORS CORP.
