Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Remove the rear door trim panel.
  3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Disconnect the retainer clips from the rear door inner energy absorber pad.
  5. Remove the rear door inner energy absorber pad from the rear door.

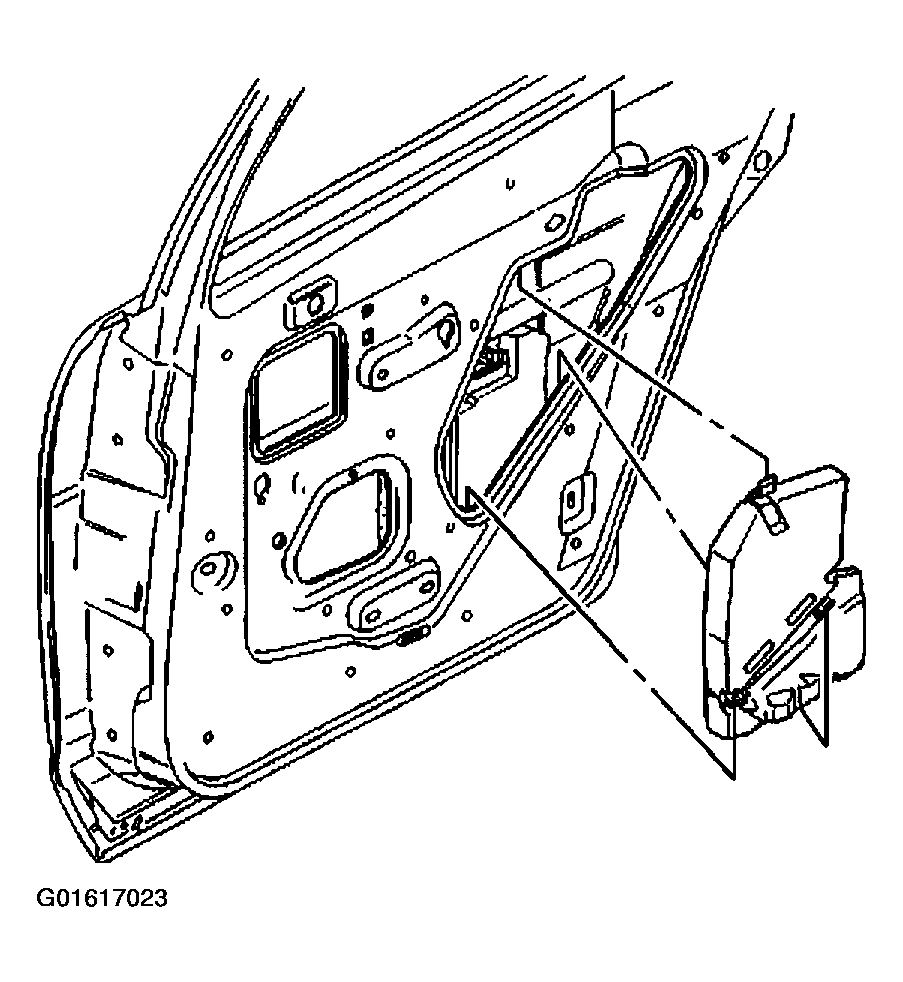

    Fig 1: Rear Door Inner Energy Absorber Pad
    G01617023Courtesy of GENERAL MOTORS CORP.
