Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. Remove the rear inner energy absorber pad. Refer to Energy Absorber Pad Replacement - Inner Rear .
  4. Disconnect the inside locking rod (2) and handle rod (3) from the inside door handle.
  5. Remove the retainer clips from the rods.
  6. Remove the rear door lock. Refer to Lock Replacement - Rear Door .
  7. Remove the locking rod from the rear door lock.

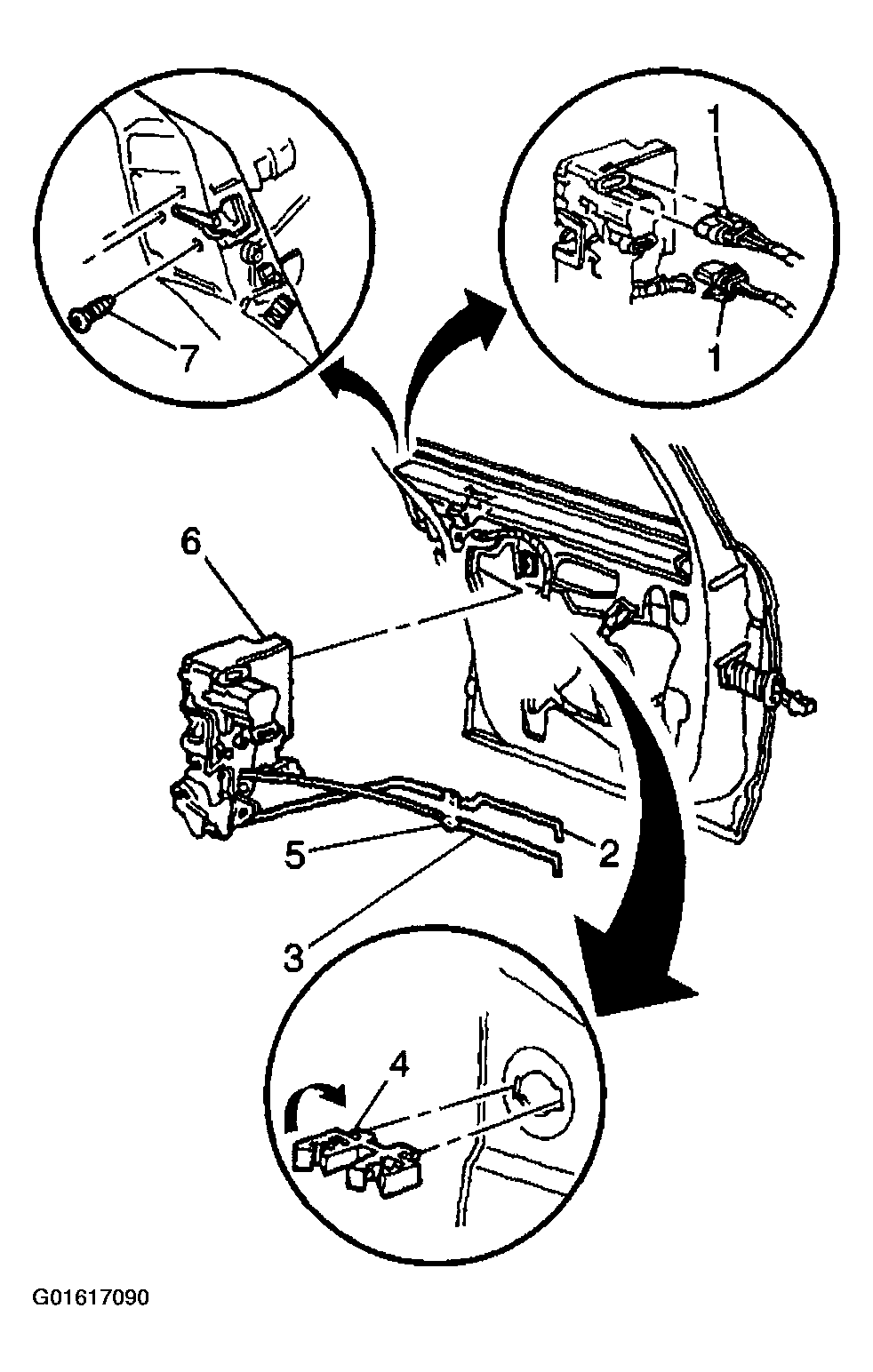

    Fig 1: Rear Door Locking Components
    G01617090Courtesy of GENERAL MOTORS CORP.
