Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. Remove the rear inner energy absorber pad. Refer to Energy Absorber Pad Replacement - Inner Rear .
  4. Remove the inside handle rod (3) and lock rod (2) from the inside door handle.
  5. Remove the rear door lock (6). Refer to Lock Replacement - Rear Door .
  6. Remove the rear door inside handle rod from the door lock.

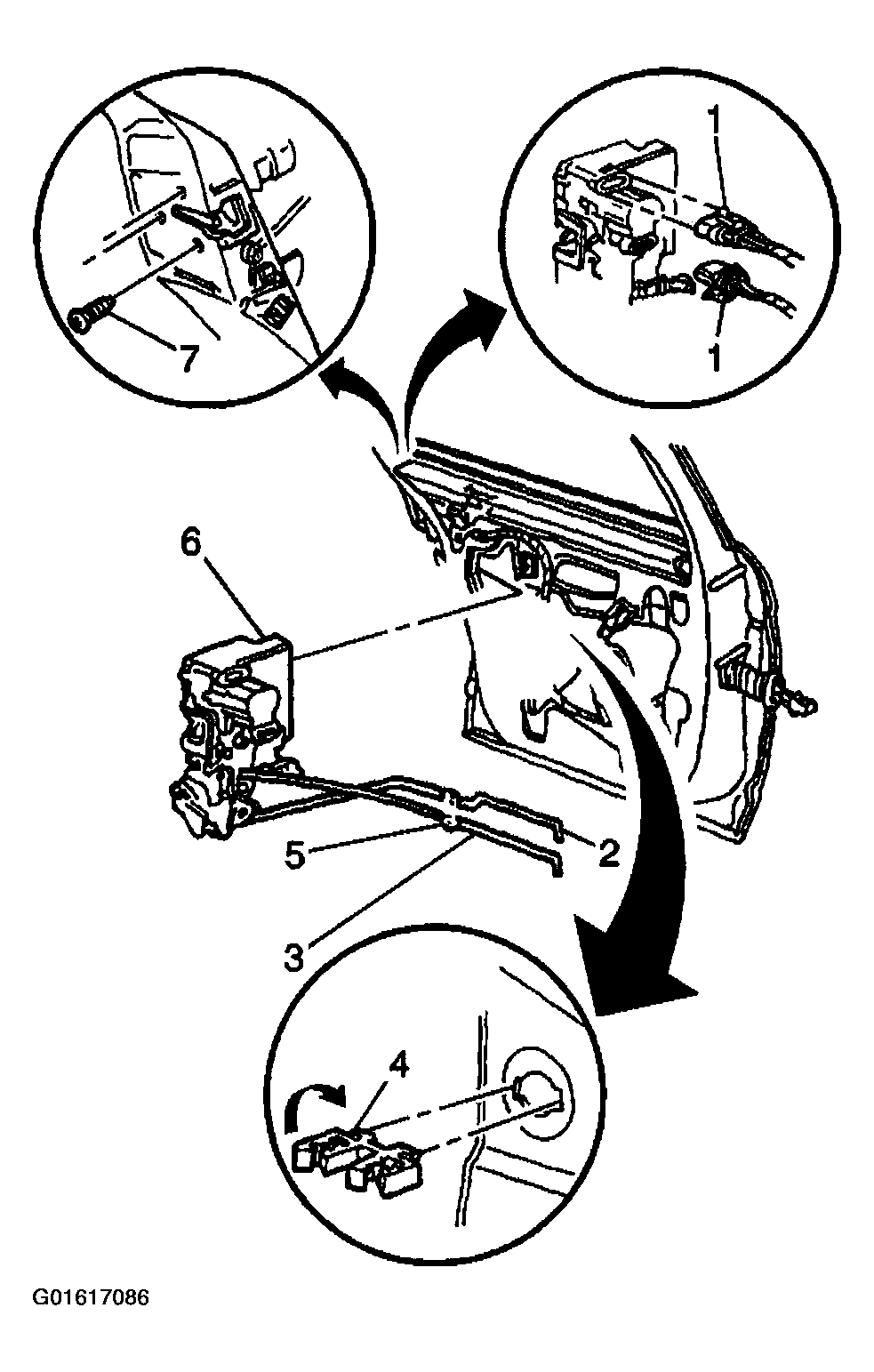

    Fig 1: Rear Inside Door Handle Components
    G01617086Courtesy of GENERAL MOTORS CORP.
