Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector as needed. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door trim panel energy absorber pad. Refer to Trim Panel Energy Absorber Pad - Front Door .
  4. Use side cutters in order to cut off the outside handle rod-to-lock clip from the lock.
  5. Unscrew the remainder of the clip from the outside handle rod.
  6. Discard the clip.

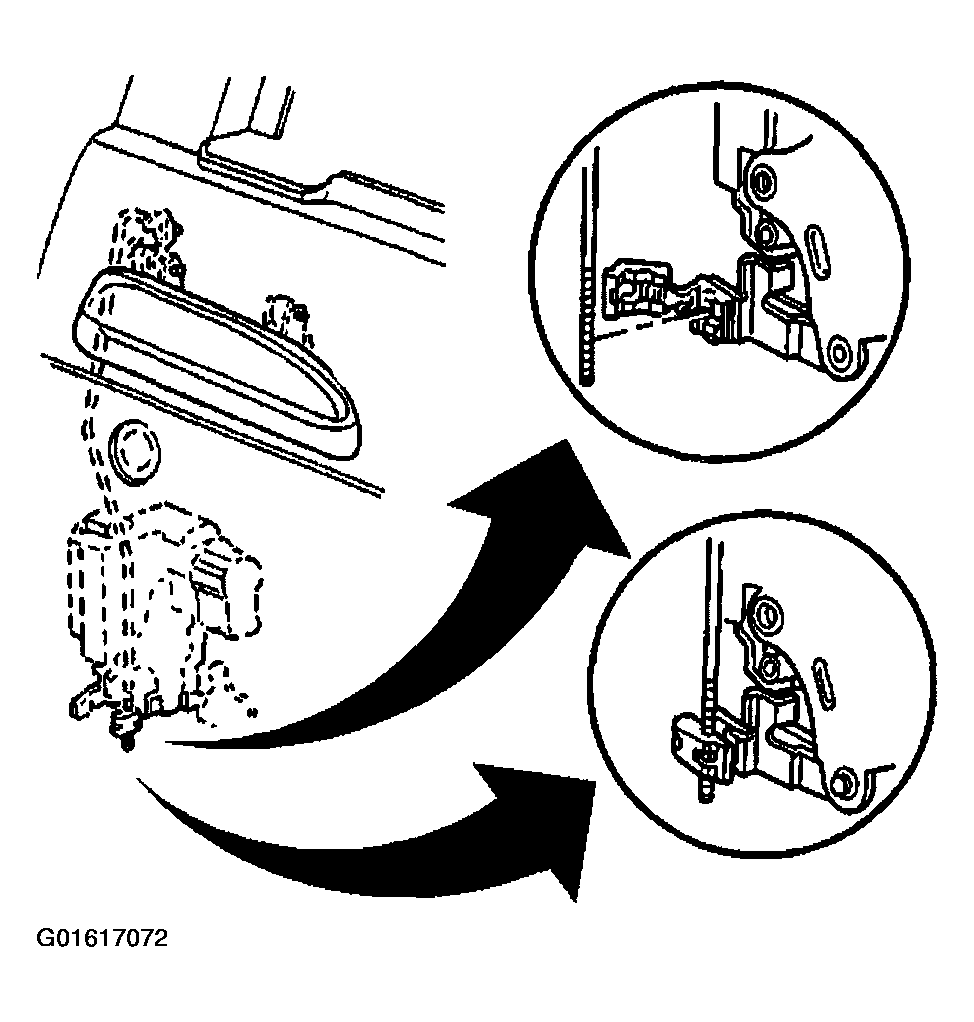

    Fig 1: Removing Outside Handle Rod From Clip
    G01617072Courtesy of GENERAL MOTORS CORP.
