Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. Remove the rear inner energy absorber pad. Refer to Energy Absorber Pad Replacement - Inner Rear .

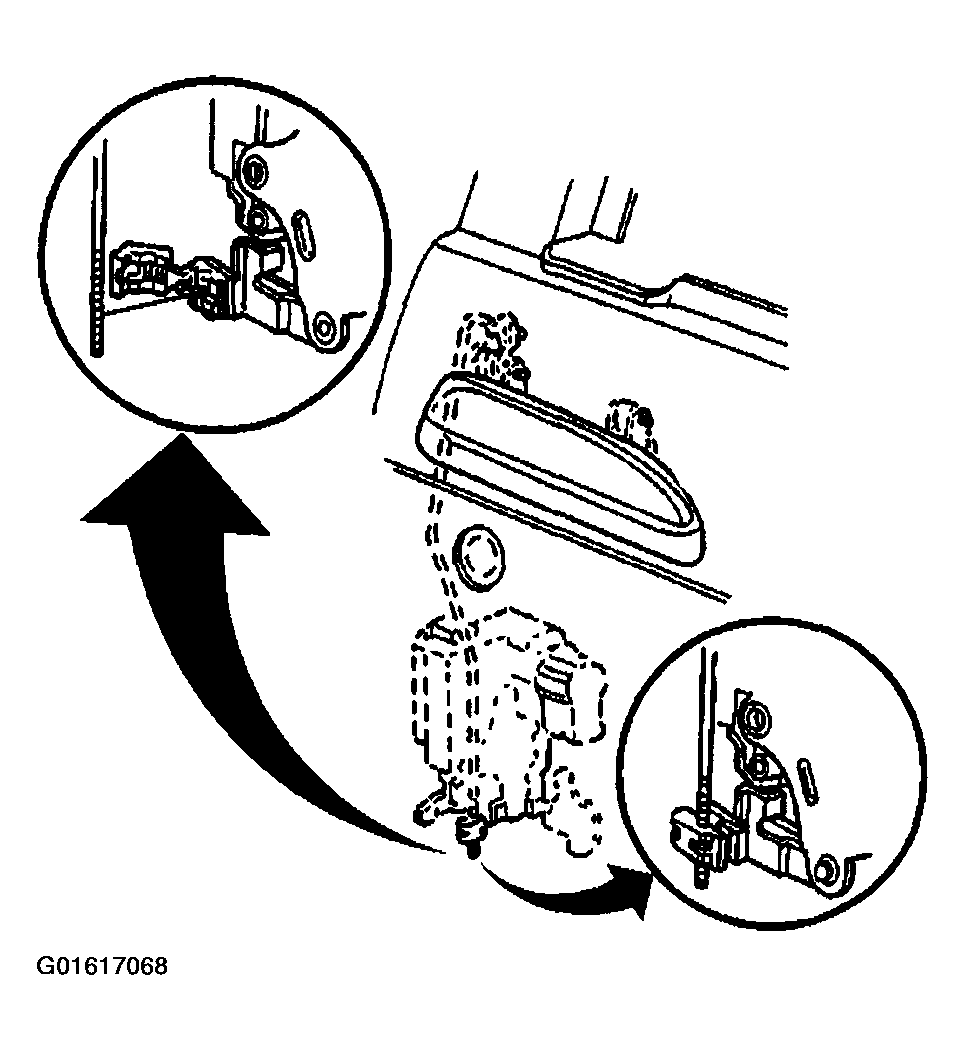

    Fig 1: Removing Outside Handle Rod From Clip
    G01617068Courtesy of GENERAL MOTORS CORP.
  4. Use side cutters in order to cut off the outside handle rod-to-lock clip from the lock.
  5. Unscrew the remainder of the clip from the outside handle rod.
  6. Discard the clip.
  7. Remove the door handle bolt access plug, located by the door lock.
  8. Remove the rear door outside door handle bolts (3).
  9. Remove the rear door outside door handle (2) from the handle rod (1).

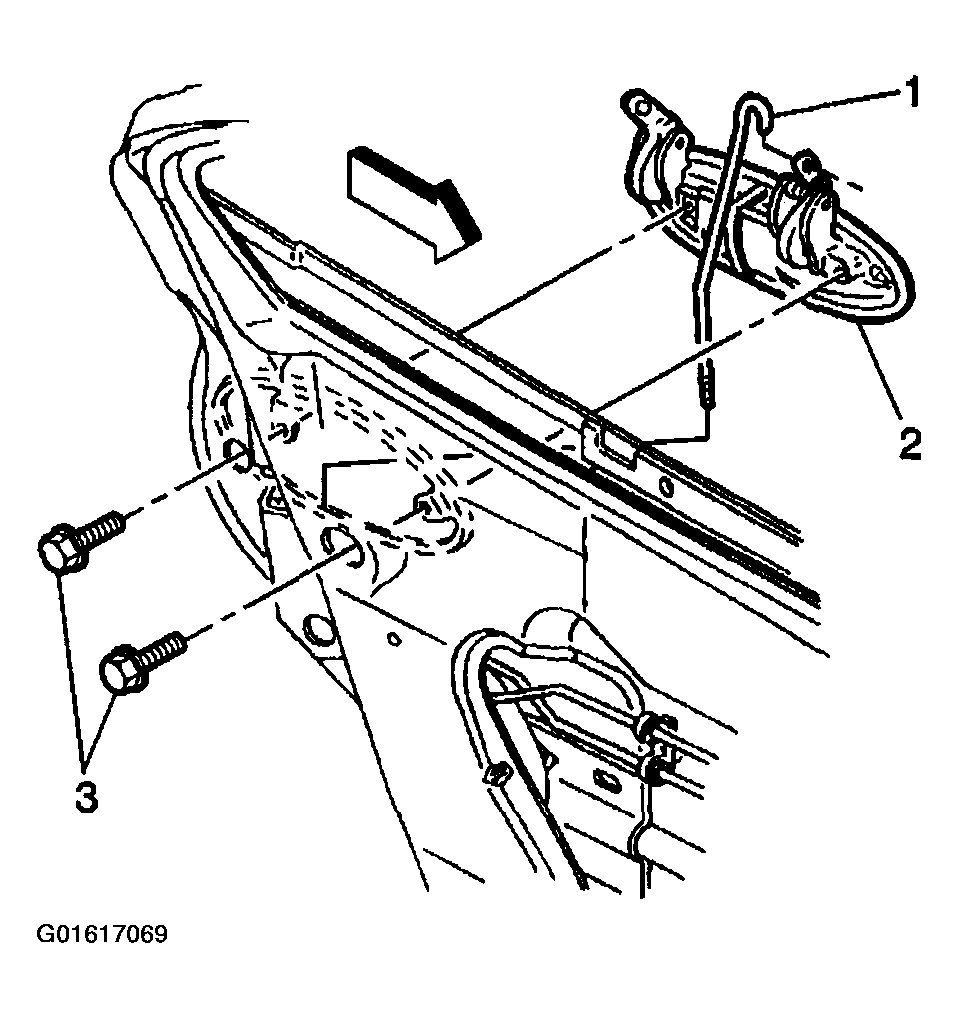

    Fig 2: Rear Door Outside Handle
    G01617069Courtesy of GENERAL MOTORS CORP.
