Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front door window in the full up position.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the front door inside handle to front door rivet.
    1. 3.1. Use a center punch to drive the front door inside handle mounting rivet mandrel into the rivet head to create a pilot hole.
    2. 3.2. Use a 6.35 mm (1/4 in) drill bit to drill out the rivet.
  4. Open the inside door handle clips in order to remove the handle rods (2) from the inside door handle.
  5. Remove the front door inside door handle.

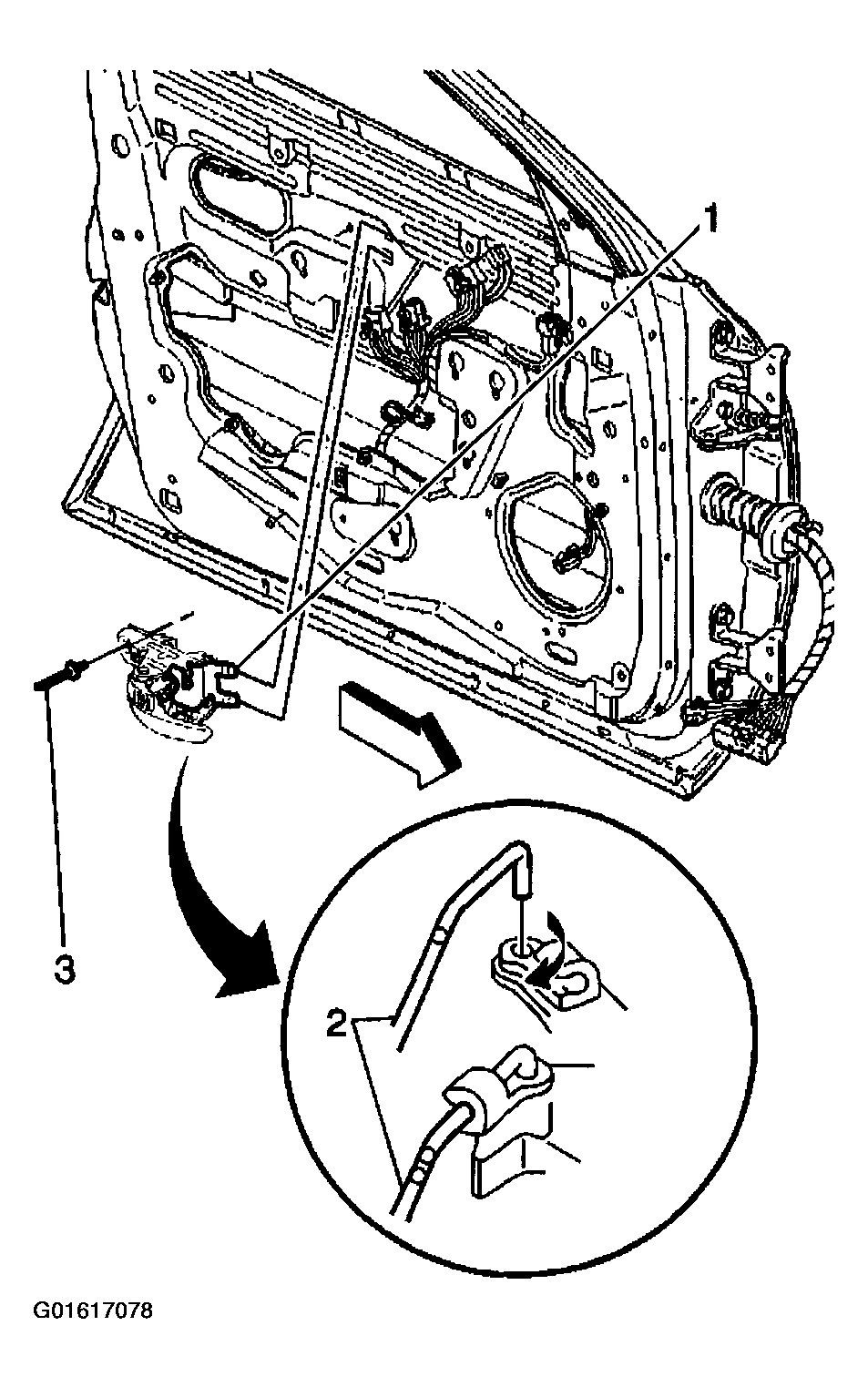

    Fig 1: Removing Handle Rods From Inside Door Handle
    G01617078Courtesy of GENERAL MOTORS CORP.
