Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down and reposition the front door weatherstrip in order to gain access to the applique screws.
  2. Remove the screws from the front door frame applique.
  3. Remove the front door frame applique from the front door.

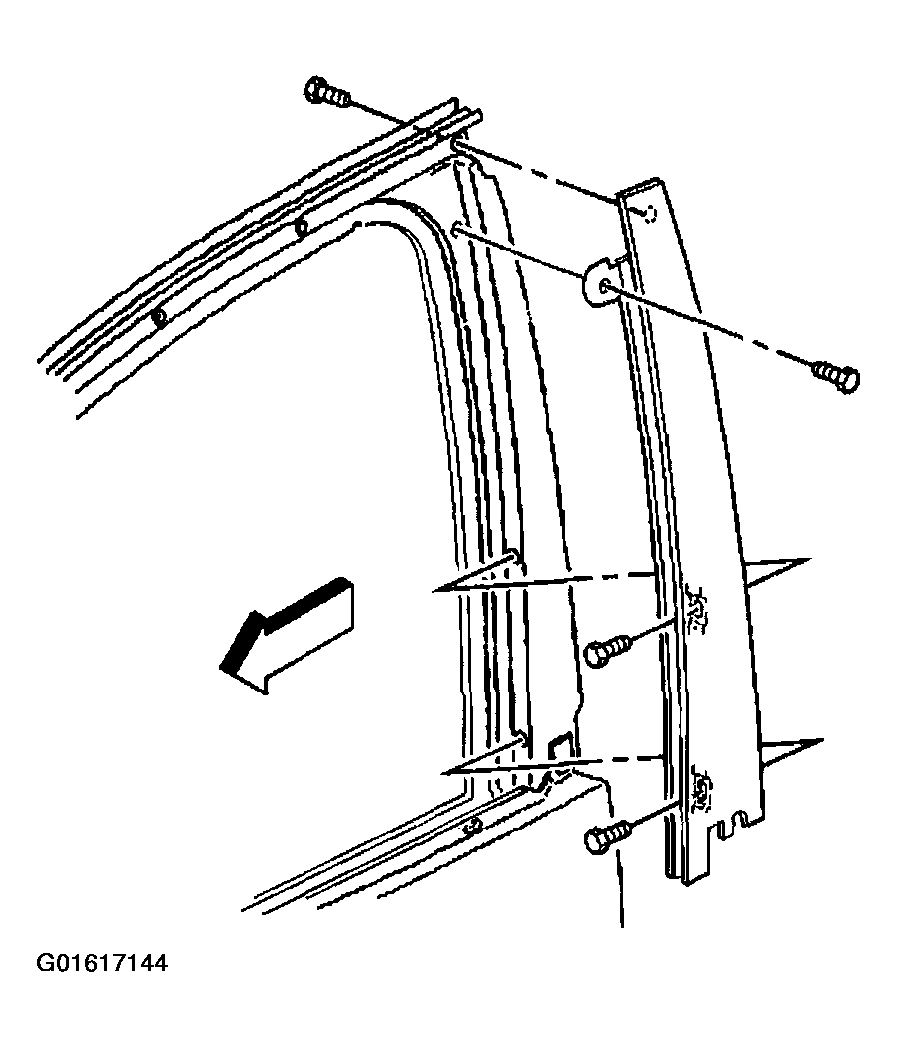

    Fig 1: Front Door Frame Applique
    G01617144Courtesy of GENERAL MOTORS CORP.
