Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the hood latch cable to the latch.
    Fig 1: Disconnecting/Connecting Hood Latch Cable To Latch
    GM742161Courtesy of GENERAL MOTORS CORP.
  2. Position the latch to the previously marked location on the mounting bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts which retain the latch to the mounting bracket.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

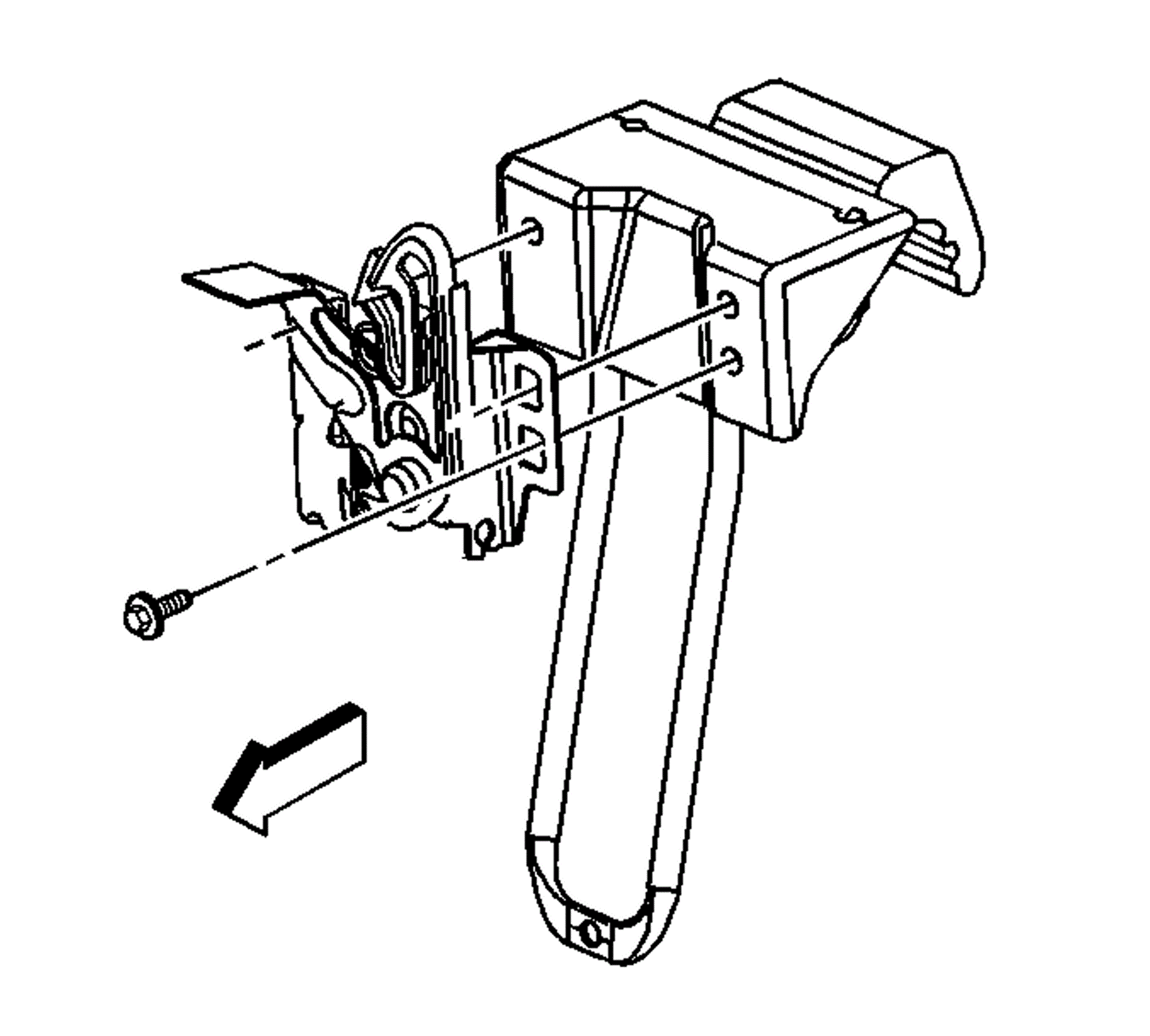

    Fig 2: Removing/Installing Hood Latch-To-Support Bracket & Bolts
    GM749964Courtesy of GENERAL MOTORS CORP.
  4. Inspect the latch for proper operation before closing the hood.
  5. Check the alignment of the latch to the hood striker. Adjust the latch, if necessary. Refer to Hood Latch Adjustment  .
  6. Install the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) or GRILLE REPLACEMENT (OLDSMOBILE) in Exterior Trim.
