Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the body to fender seal, position the seal to the vehicle.
  2. Ensure that the integral clips (1) on the seal are seated into the fender bracket (2).
    Fig 1: Removing/Installing Fender Bracket To Body Seal Retaining Clips
    GM750119Courtesy of GENERAL MOTORS CORP.
  3. Position the fender to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts that retain the fender to the vehicle.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

    Fig 2: Removing/Installing Fender Retaining Bolts
    GM750116Courtesy of GENERAL MOTORS CORP.
  5. Install the hood bumper to the vehicle.

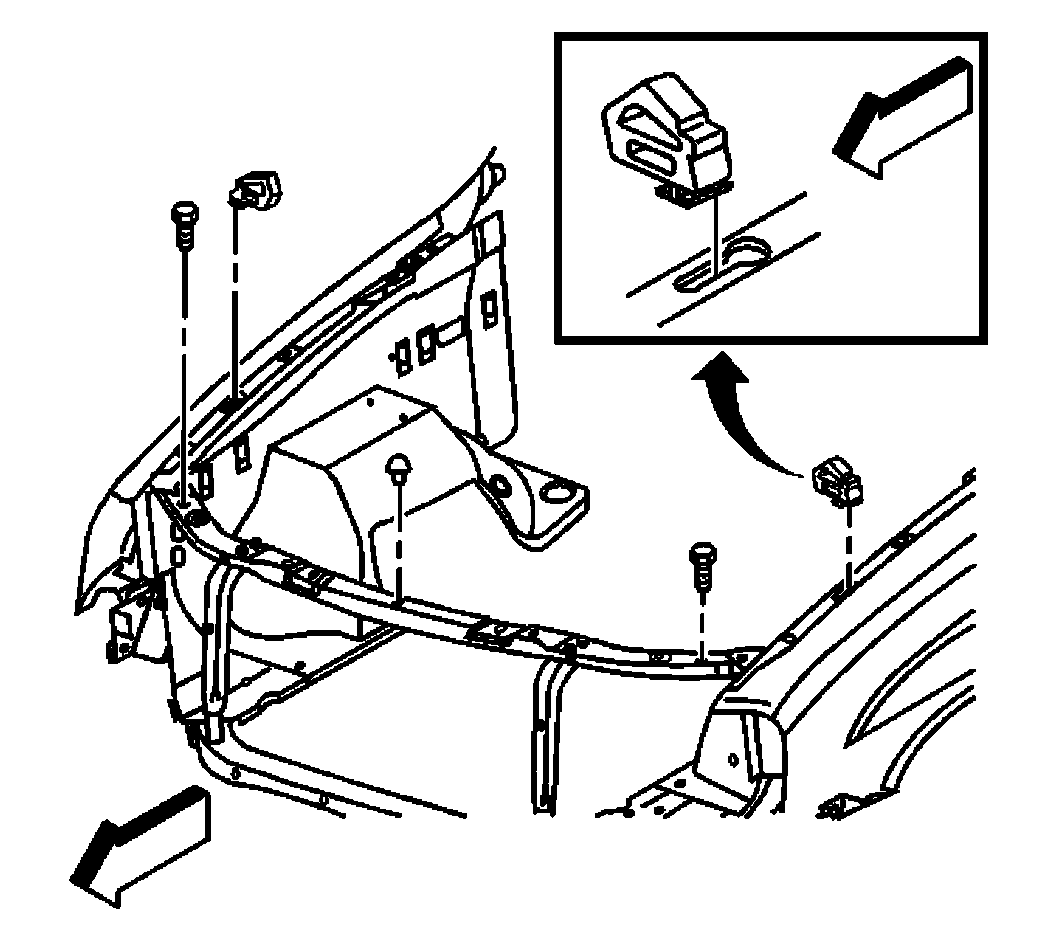

    Fig 3: View Of Side Hood Bumper
    GM742125Courtesy of GENERAL MOTORS CORP.
  6. Install the rocker panel molding. Refer to MOLDING REPLACEMENT - ROCKER PANEL (TRAILBLAZER, ENVOY, BRAVADA) or MOLDING REPLACEMENT - ROCKER PANEL (TRAILBLAZER EXT, ENVOY XL) in Exterior Trim.
  7. Install the wheelhouse panel. Refer to Wheelhouse Panel Replacement  .
  8. Install the assist step, if applicable. Refer to ASSIST STEP REPLACEMENT in Frame and Underbody.
  9. Remove the protective tape.
