Interior Lights Dimming Schematics

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

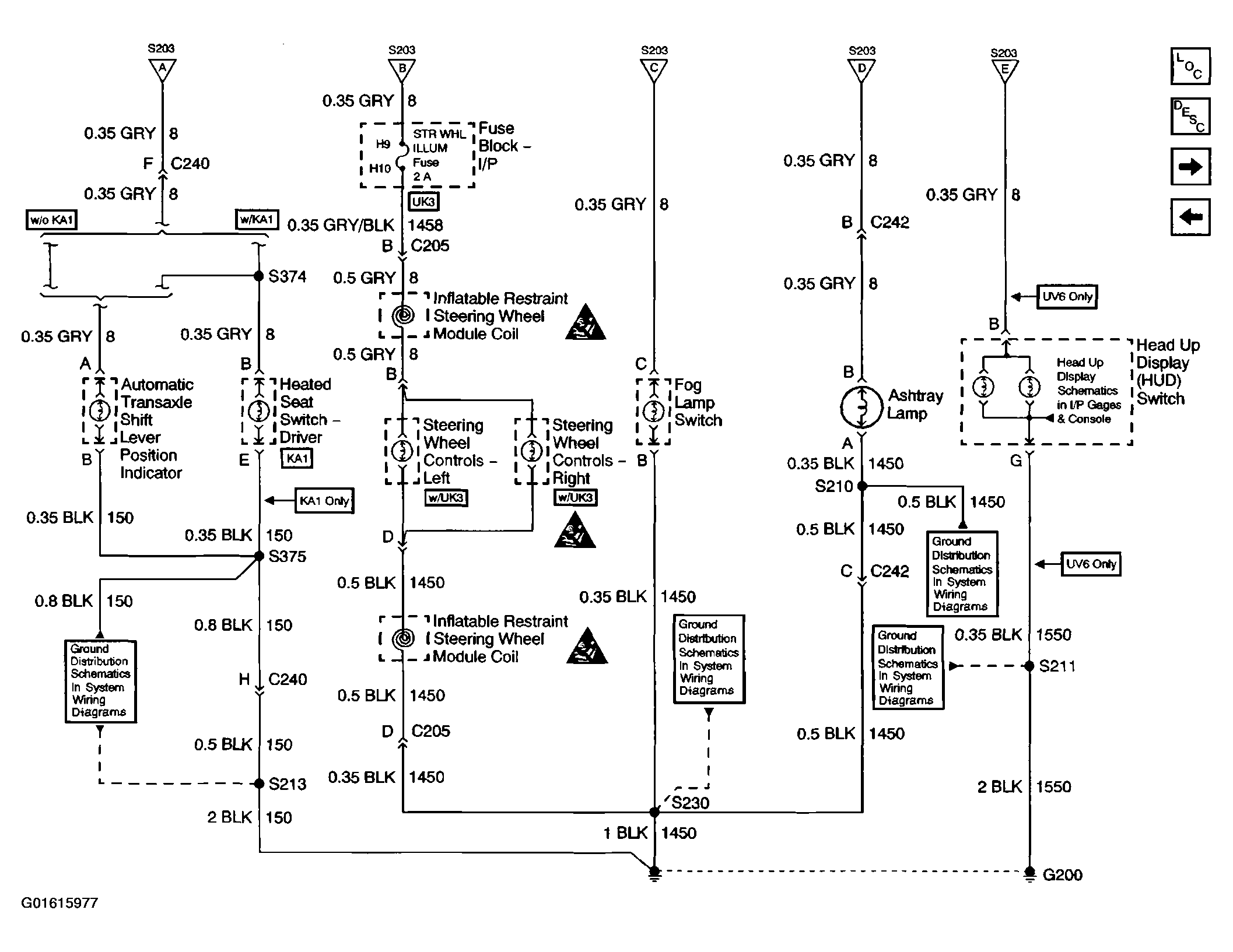

Fig 1: Interior Lights Dimming Schematics (Headlamp Switch & Instrument Panel Lighting)

Courtesy of GENERAL MOTORS CORP.

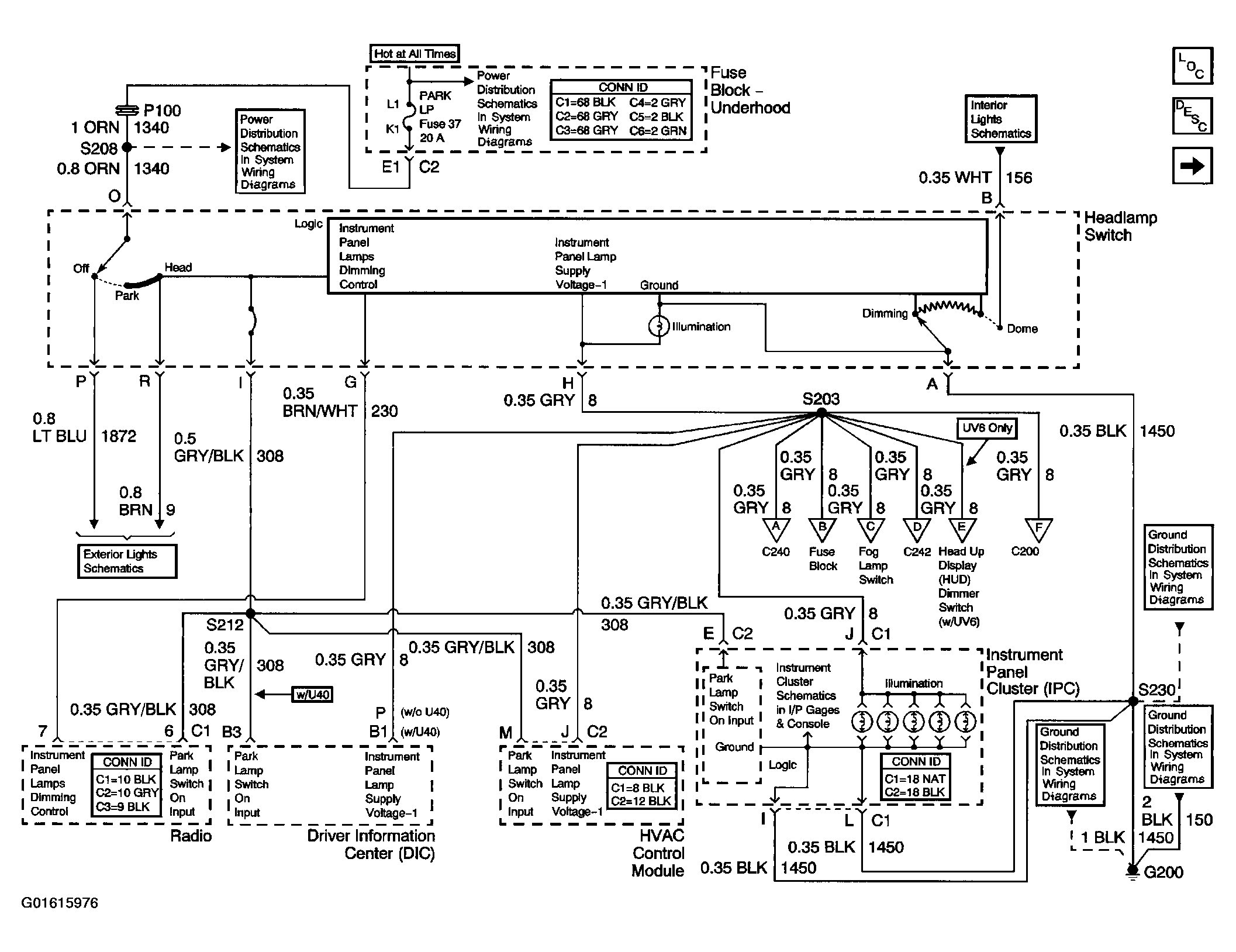

Fig 2: Interior Lights Dimming Schematics (Instrument Panel Lighting Continued)

Courtesy of GENERAL MOTORS CORP.

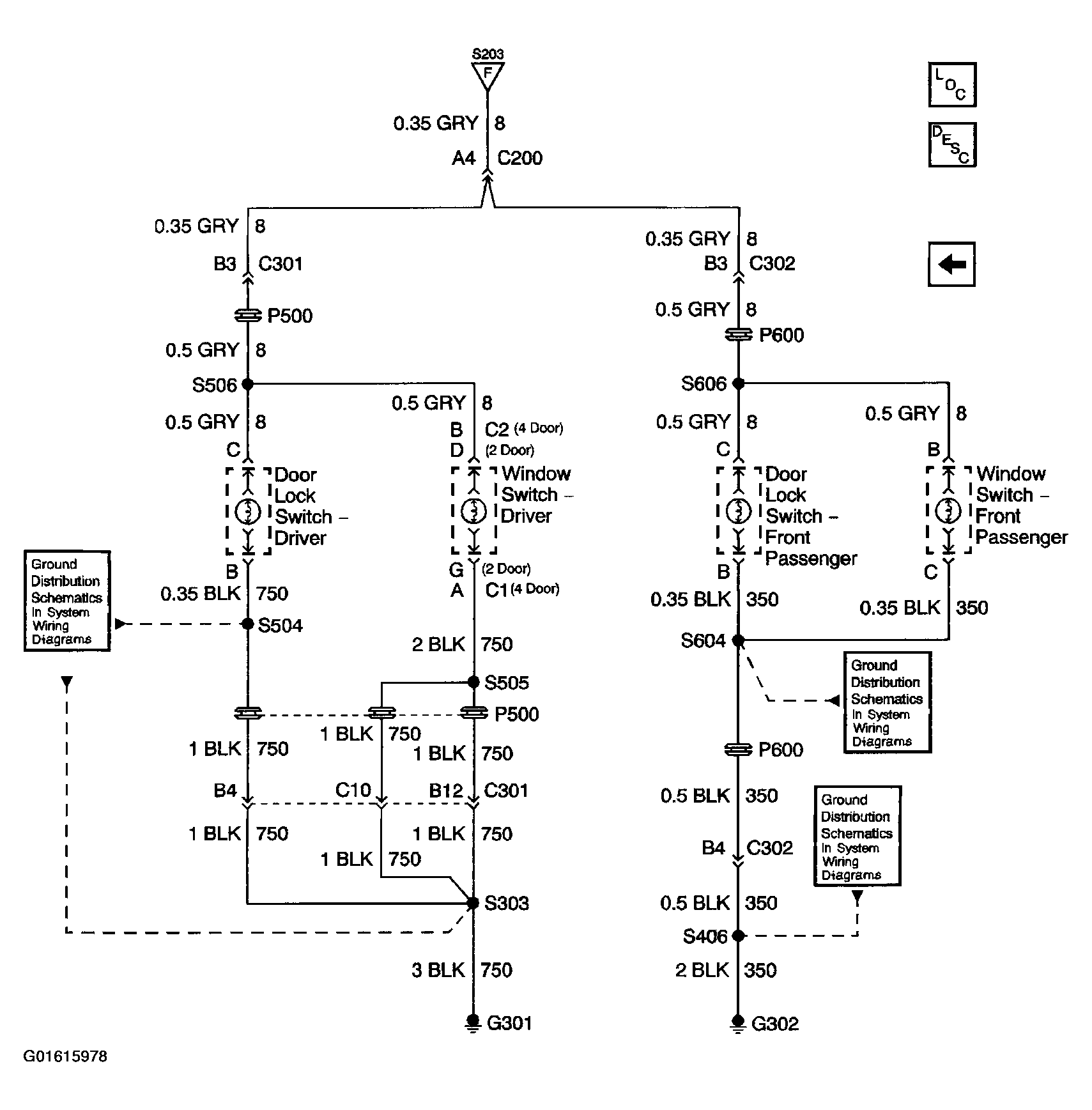

Fig 3: Interior Lights Dimming Schematics (Door Switch Lighting)

Courtesy of GENERAL MOTORS CORP.
