Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

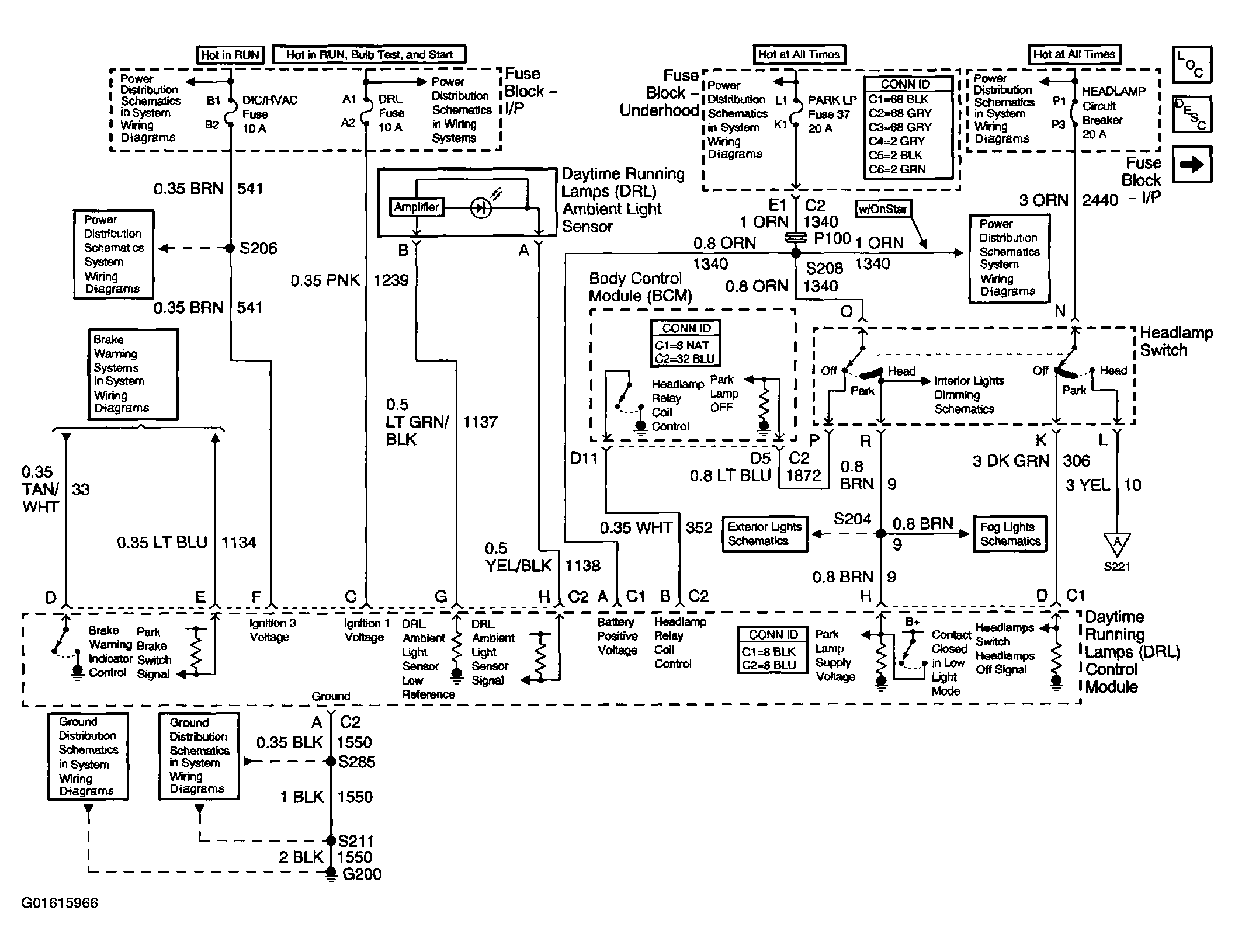

Fig 1: Headlights/Daytime Running Lights (DRL) Schematics (Daytime Running Lamps (DRL) Control Module Inputs)
G01615966Courtesy of GENERAL MOTORS CORP.

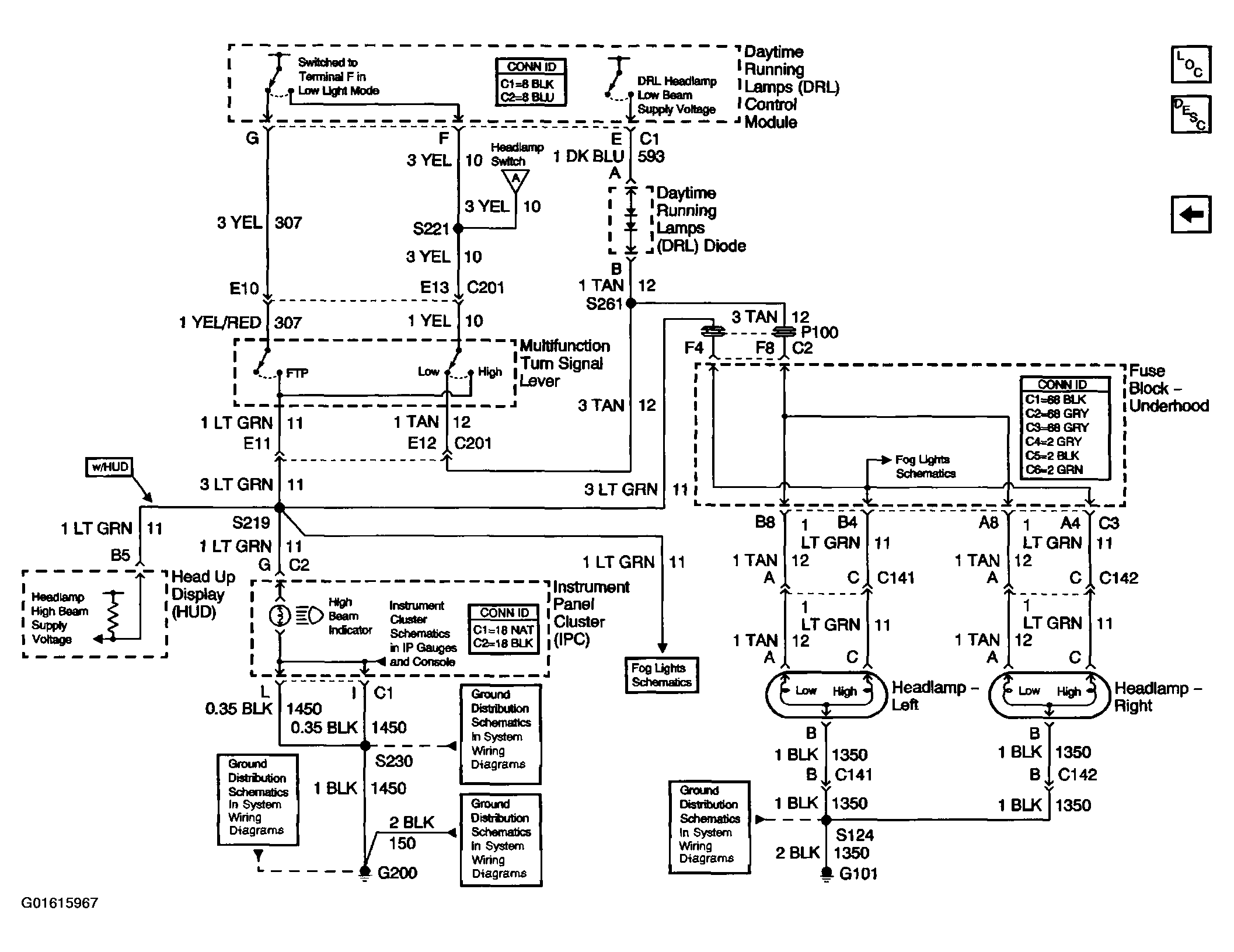

Fig 2: Headlights/Daytime Running Lights (DRL) Schematics (Daytime Running Lamps (DRL) Control Module Outputs)
G01615967Courtesy of GENERAL MOTORS CORP.
