Exterior Lights Schematics

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

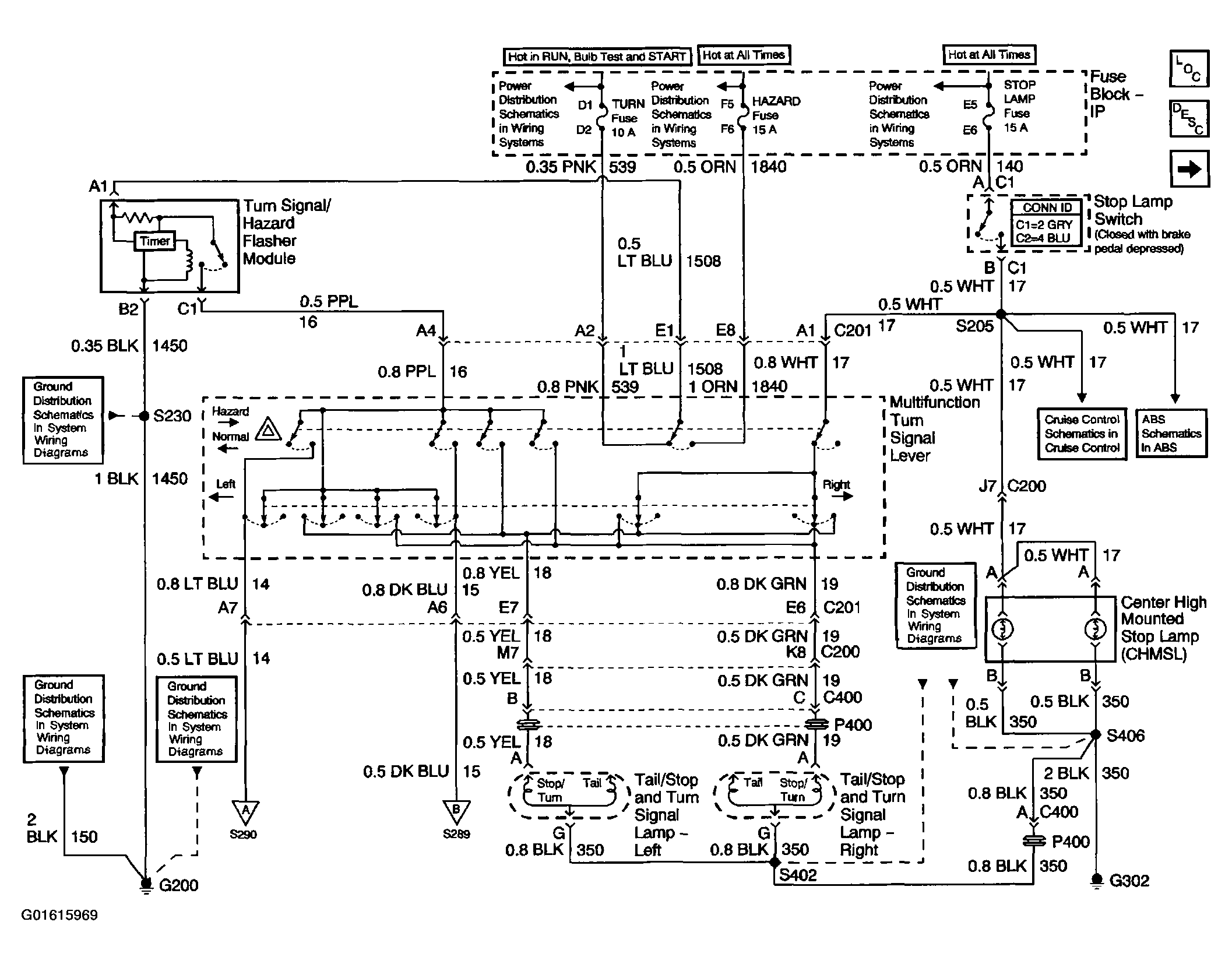

Fig 1: Exterior Lights Schematics (Rear Turn Signals & Stop Lamps)

Courtesy of GENERAL MOTORS CORP.

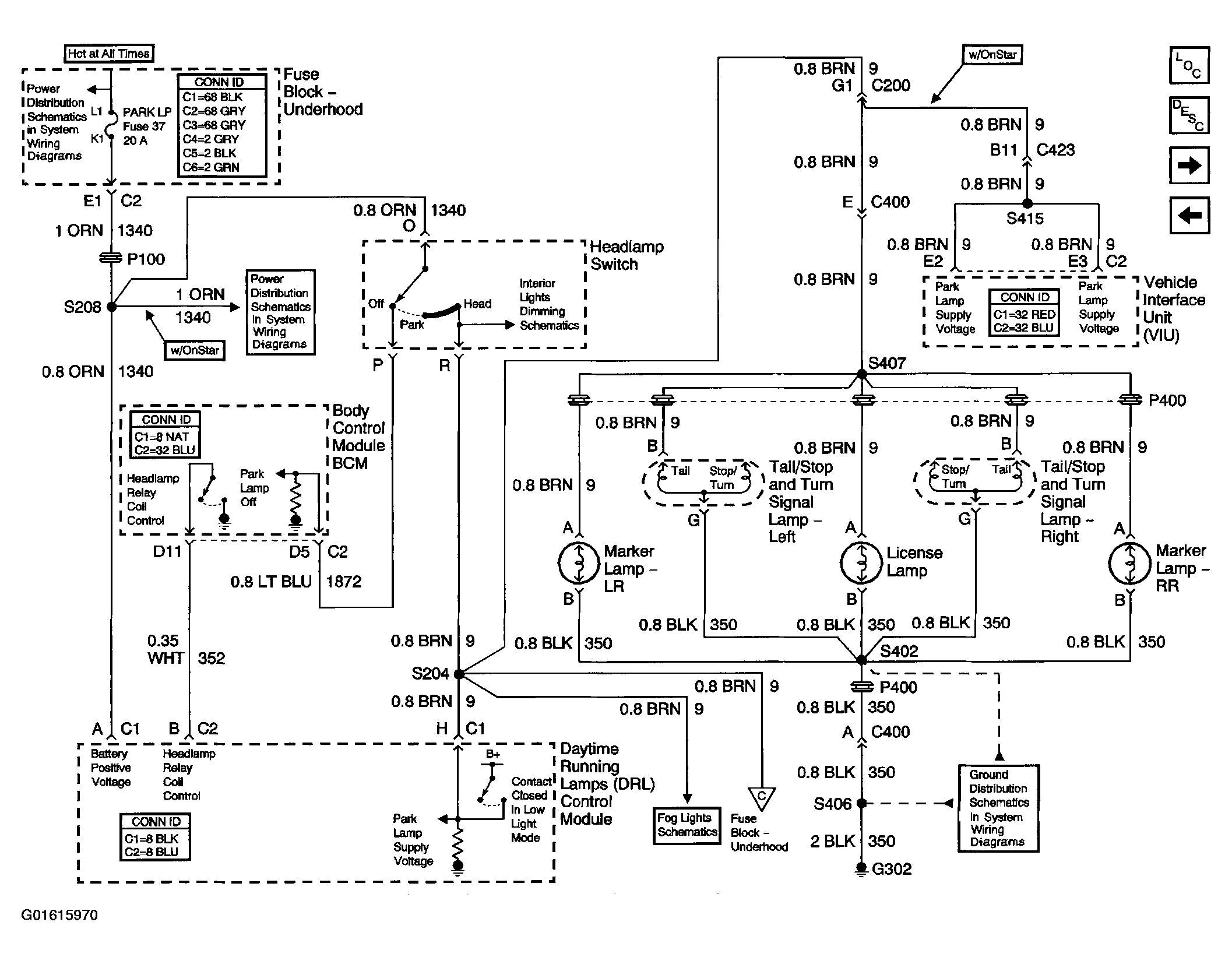

Fig 2: Exterior Lights Schematics (Park Lamps Rear)

Courtesy of GENERAL MOTORS CORP.

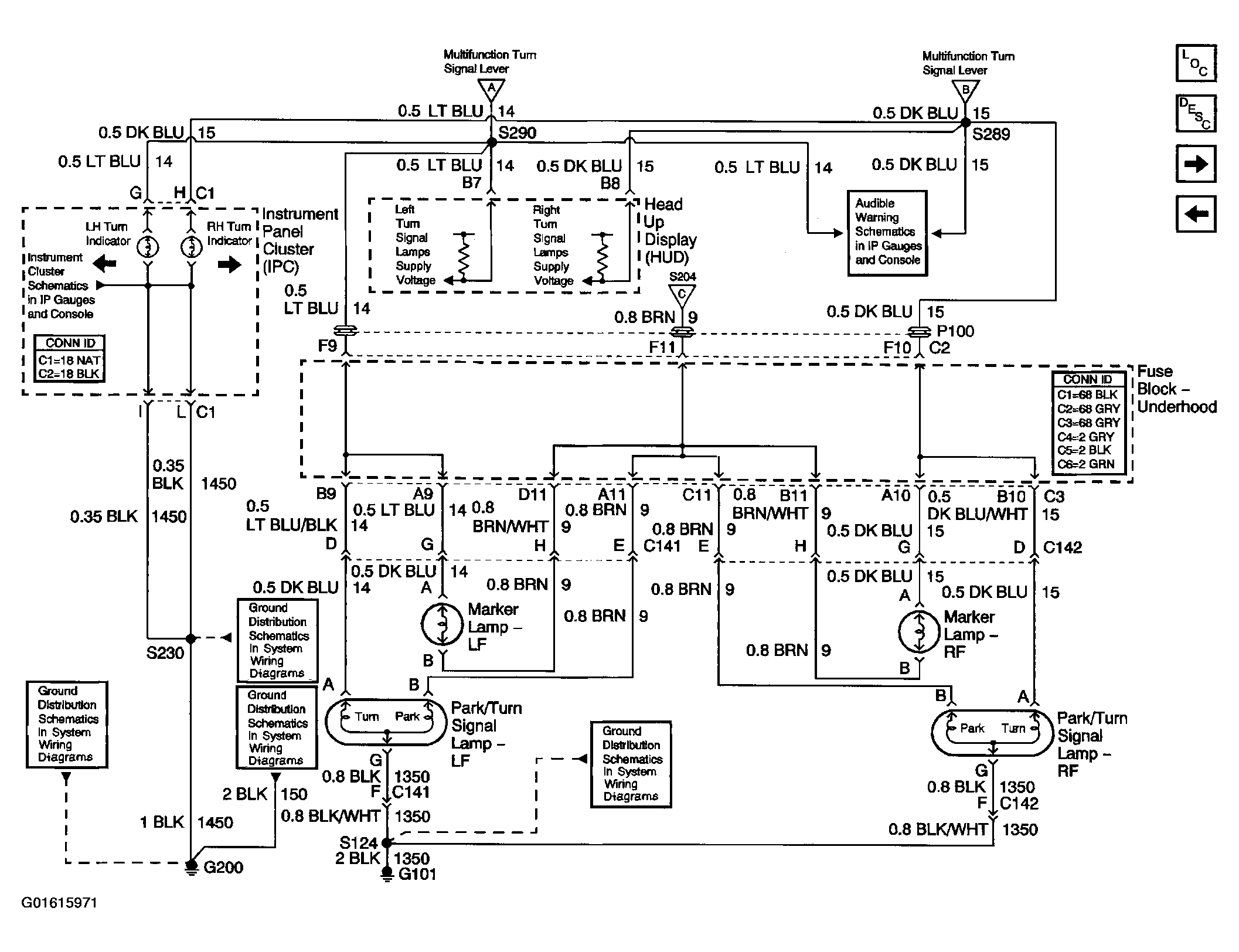

Fig 3: Exterior Lights Schematics (Front Park & Turn Signal Lamps)

Courtesy of GENERAL MOTORS CORP.

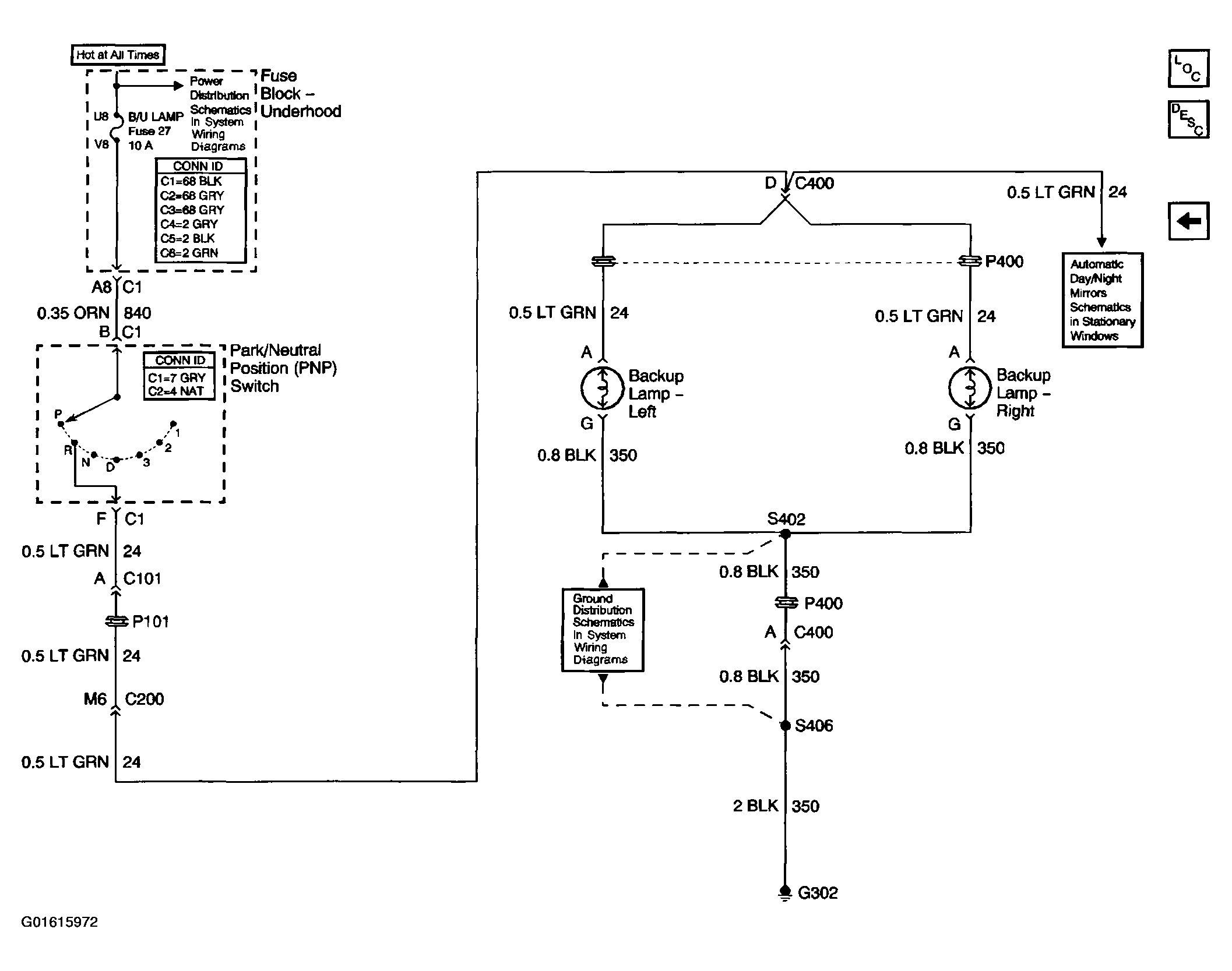

Fig 4: Exterior Lights Schematics (Backup Lights)

Courtesy of GENERAL MOTORS CORP.
