Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the assist handle.

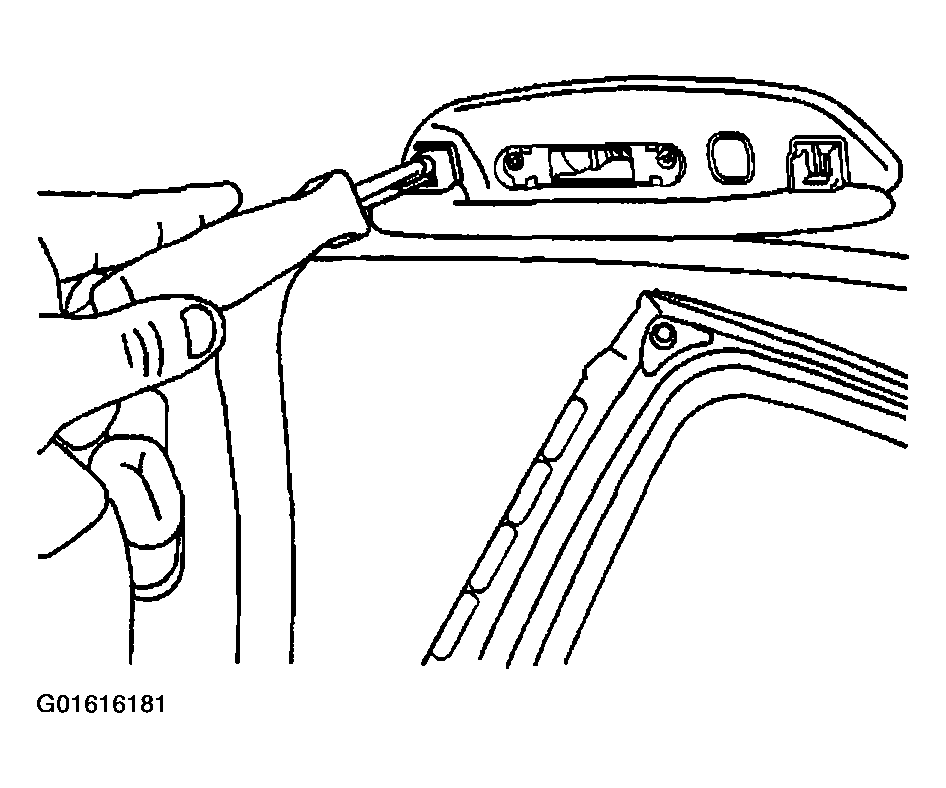

    Fig 1: Removing Screws From Assist Handle
    G01616181Courtesy of GENERAL MOTORS CORP.
  2. Remove the side rail lamp/assist handle from the roof.
    Fig 2: Removing Assist Handle
    G01616182Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the side rail lamp on the assist handle.

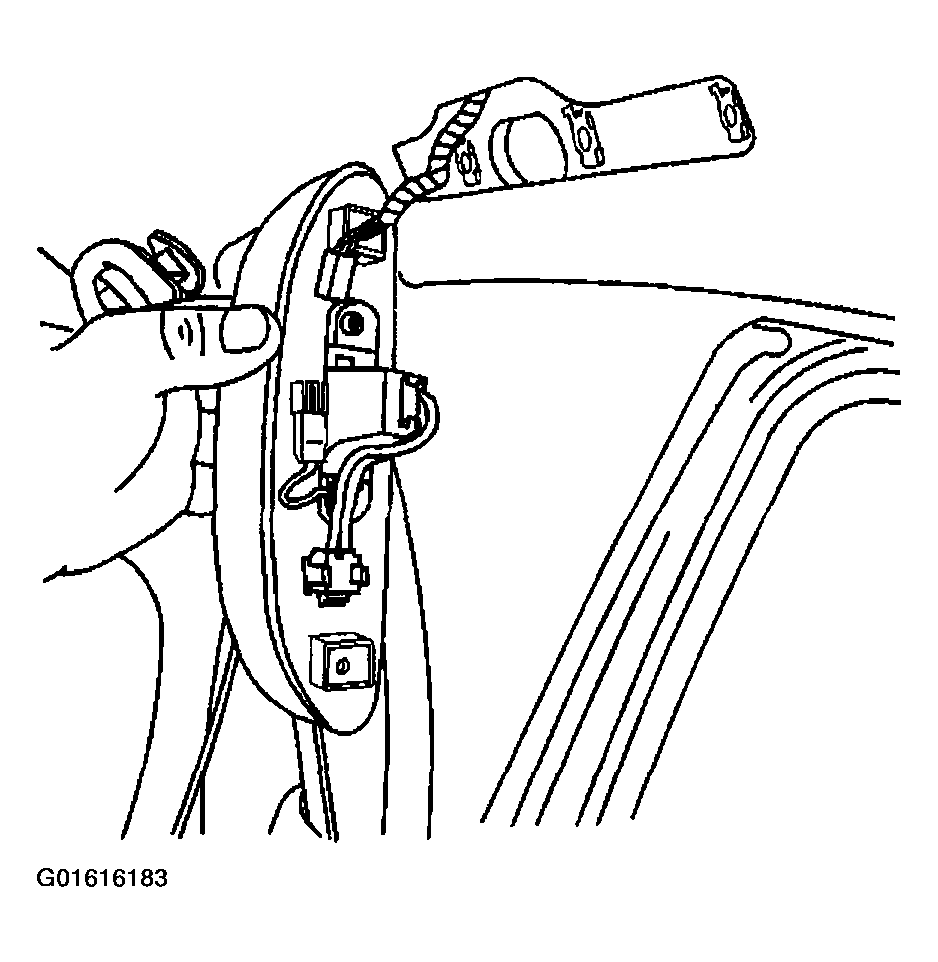

    Fig 3: Disconnecting Side Rail Lamp Electrical Connector
    G01616183Courtesy of GENERAL MOTORS CORP.
  4. Remove the socket from the lamp housing.

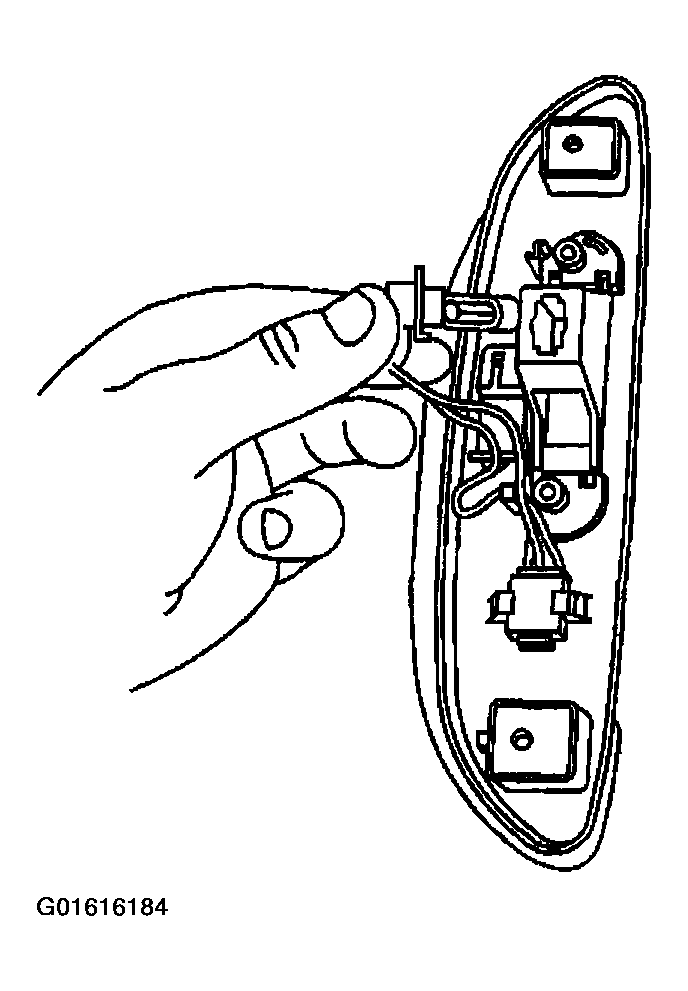

    Fig 4: Removing Socket From Lamp Housing
    G01616184Courtesy of GENERAL MOTORS CORP.
  5. Remove the bulb from the socket.

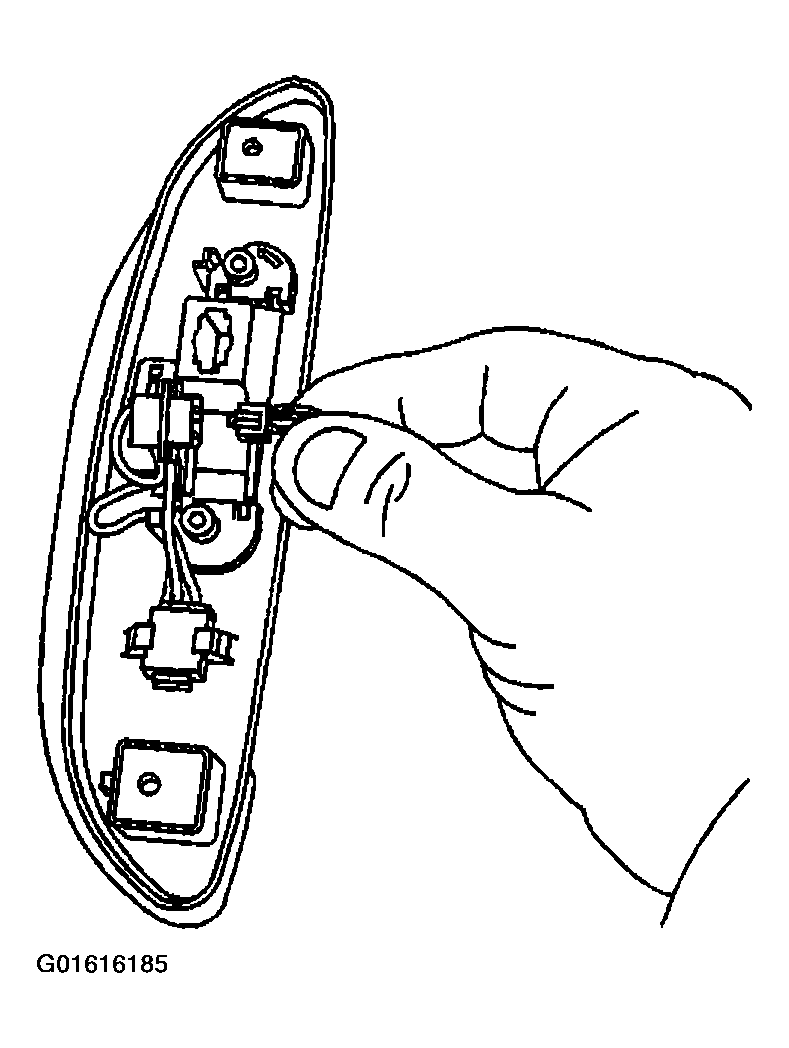

    Fig 5: Removing Bulb From Socket
    G01616185Courtesy of GENERAL MOTORS CORP.
