Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the side rail lamp socket.

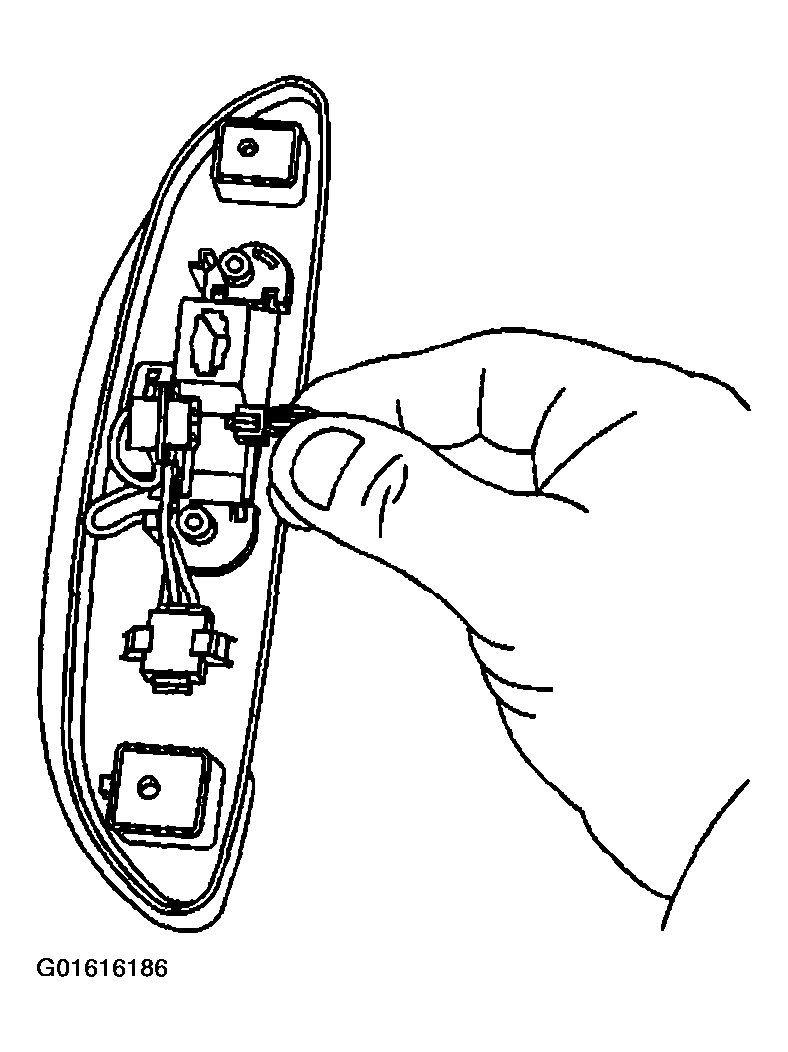

    Fig 1: Installing Bulb To Socket
    G01616186Courtesy of GENERAL MOTORS CORP.
  2. Install the socket to the side rail lamp housing.

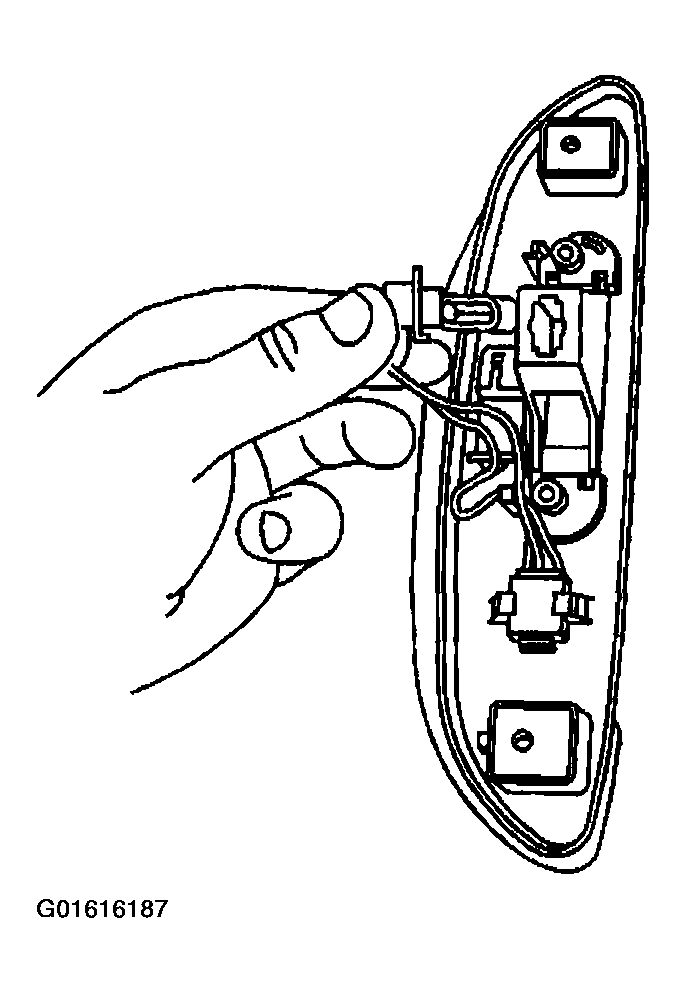

    Fig 2: Installing Socket To Lamp Housing
    G01616187Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the side rail lamp.

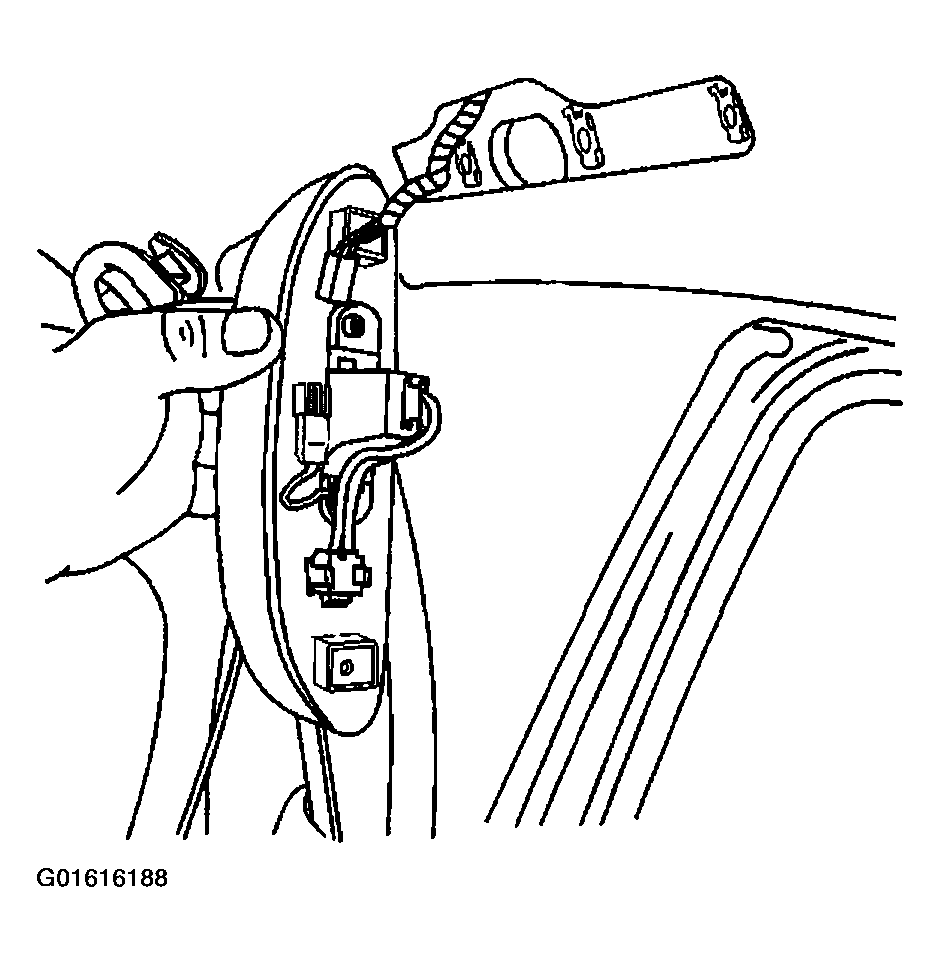

    Fig 3: Connecting Side Rail Lamp Electrical Connector
    G01616188Courtesy of GENERAL MOTORS CORP.
  4. Install the side rail lamp/assist handle to the roof.
    Fig 4: Installing Assist Handle
    G01616189Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the screws to the assist handle.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

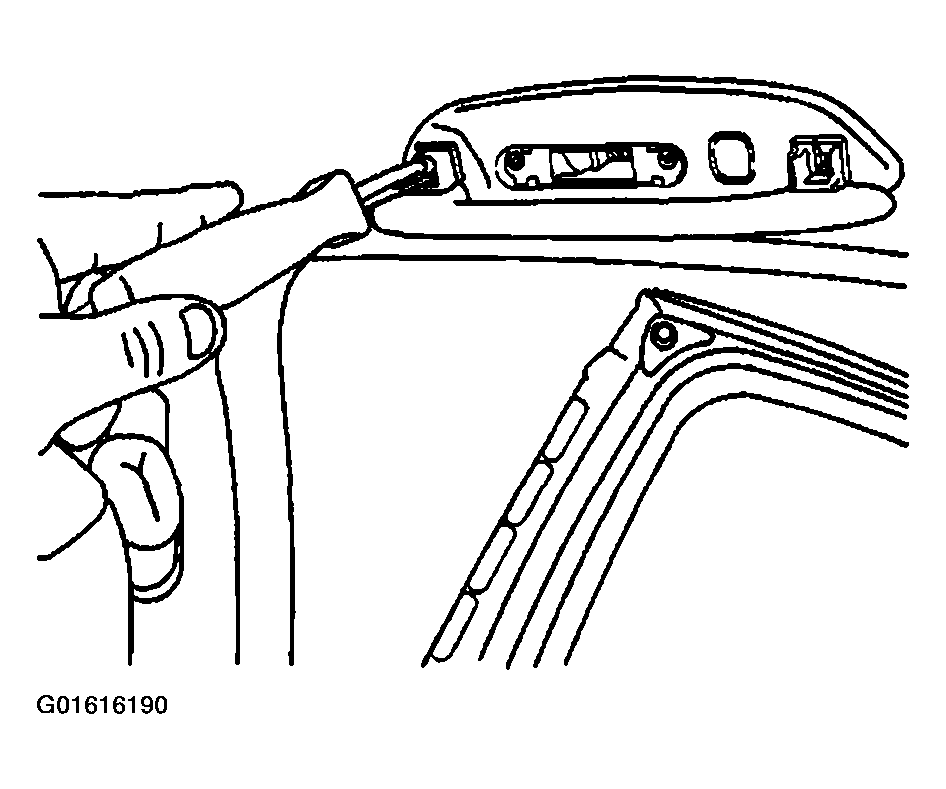

    Fig 5: Installing Screws To Assist Handle
    G01616190Courtesy of GENERAL MOTORS CORP.
