Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.
  2. Remove the park/turn signal lamp socket from the housing by rotating the socket counterclockwise.
  3. Remove the park/turn signal bulb from the socket.

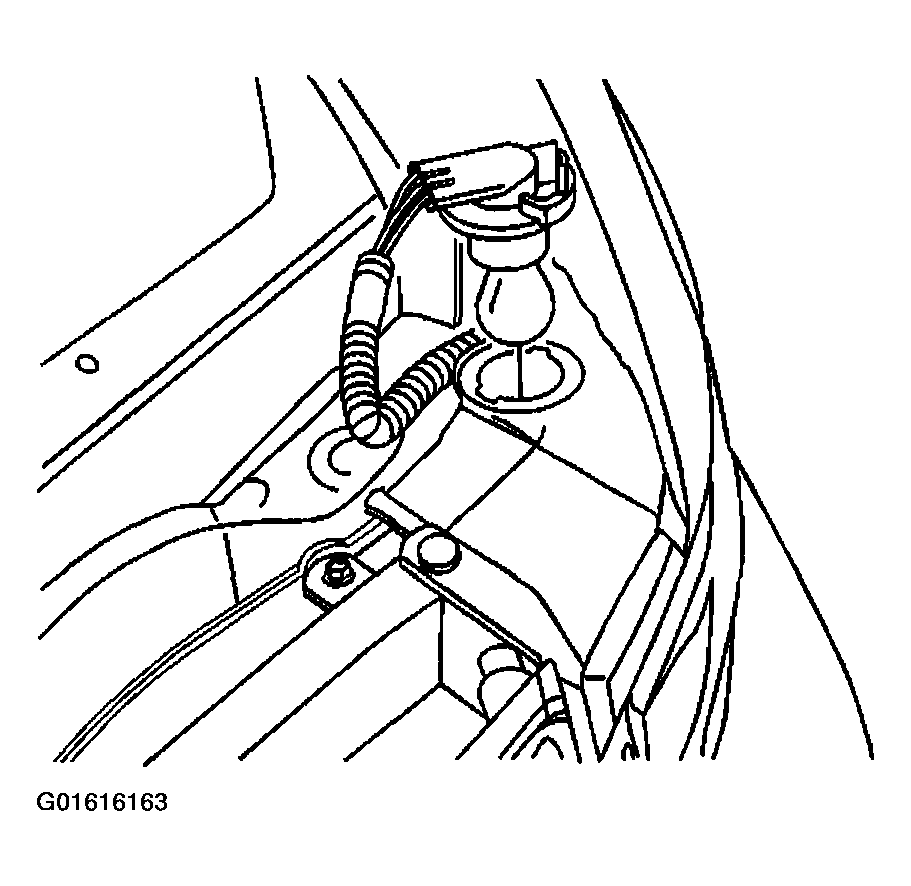

    Fig 1: Park/Turn Signal Lamp Bulb
    G01616163Courtesy of GENERAL MOTORS CORP.
