Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  2. Remove the steering column filler panel. Refer to STEERING COLUMN FILLER REPLACEMENT .
  3. Slide the hazard and turn signal flasher to the right, releasing the tabs from the Body Control Module (BCM) bracket.
  4. Disconnect the electrical connector from the hazard and turn signal flasher.

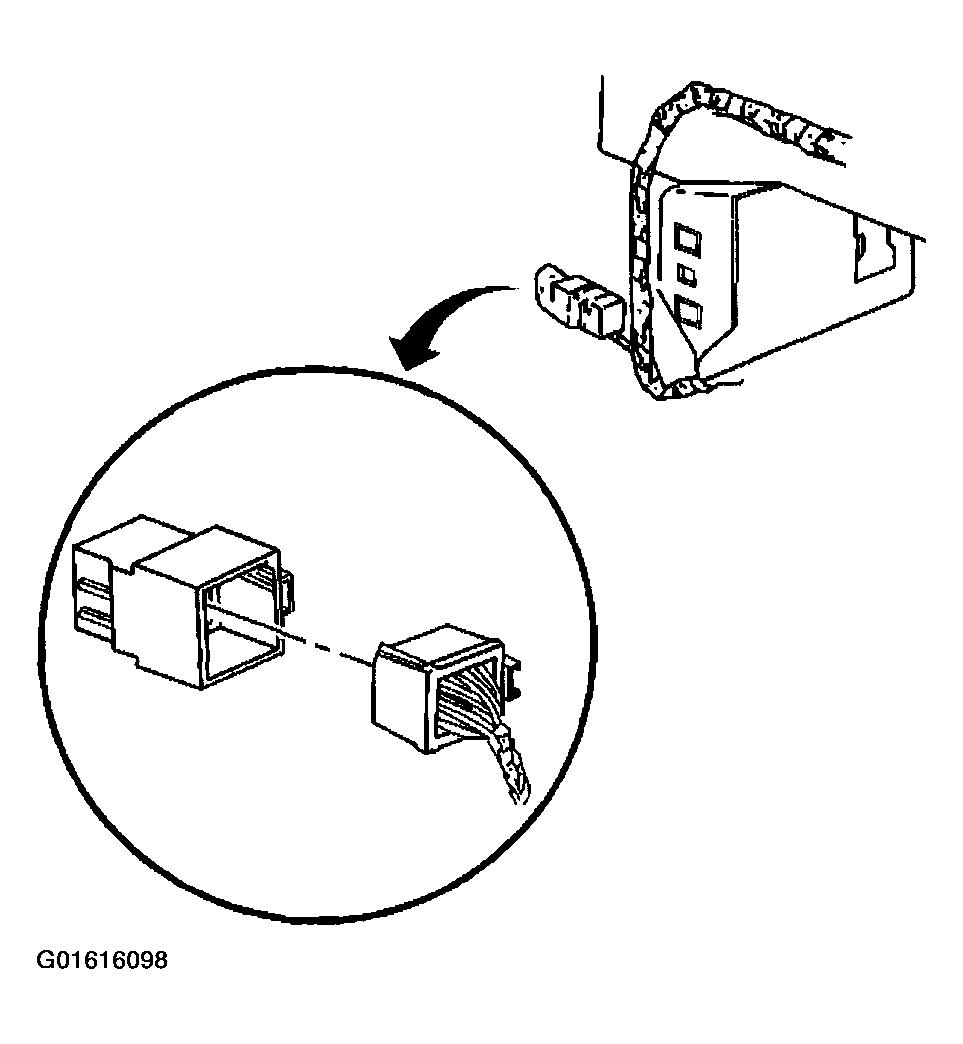

    Fig 1: Hazard & Turn Signal Flasher Electrical Connector
    G01616098Courtesy of GENERAL MOTORS CORP.
