Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small, plastic flat-bladed tool into the slot on the rear edge of the sensor bezel and release the bezel retainer from the I/P upper trim panel.
  2. Remove the sensor bezel from the upper trim plate.
    Fig 1: Releasing Bezel Retainer
    G01616092Courtesy of GENERAL MOTORS CORP.
  3. Remove the daytime running lamp (DRL) ambient light sensor (3) by turning counterclockwise to release the sensor from the sensor bezel.
  4. Disconnect the electrical connector from the DRL ambient light sensor.

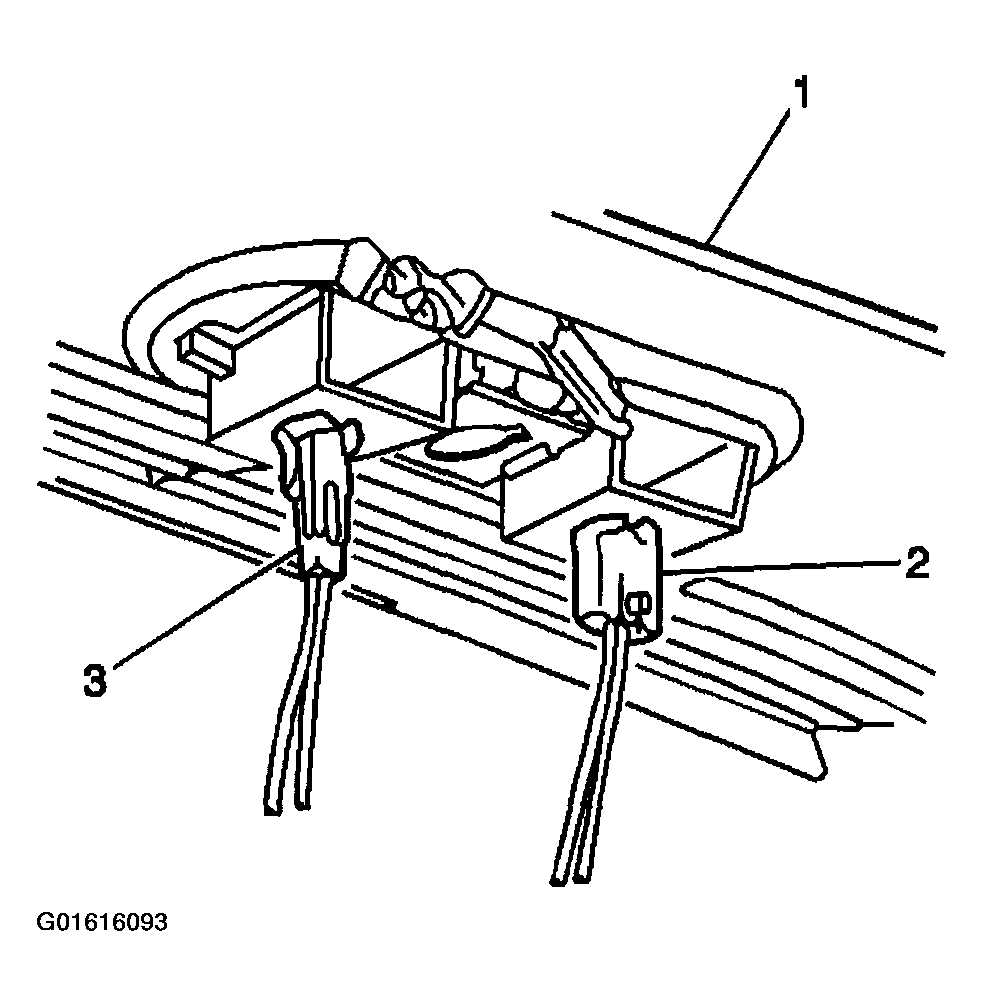

    Fig 2: DRL Ambient Light Sensor
    G01616093Courtesy of GENERAL MOTORS CORP.
